water based lamination machine for printing / paper products machinery
- 10 Set / Sets per Month
- Ningbo China
- T/T
You May Like
Product Details
| Condition | New | Application | Commodity | |
| Packaging Type | Other, Wooden Case | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220v,50hz. | Power | 3.15kw | |
| Place of Origin | Zhejiang, China | Brand Name | XIAOHAI | |
| Model Number | CSFM-1000 | Dimension(L*W*H) | 2700*1500*1400MM | |
| Weight | 1500KG | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

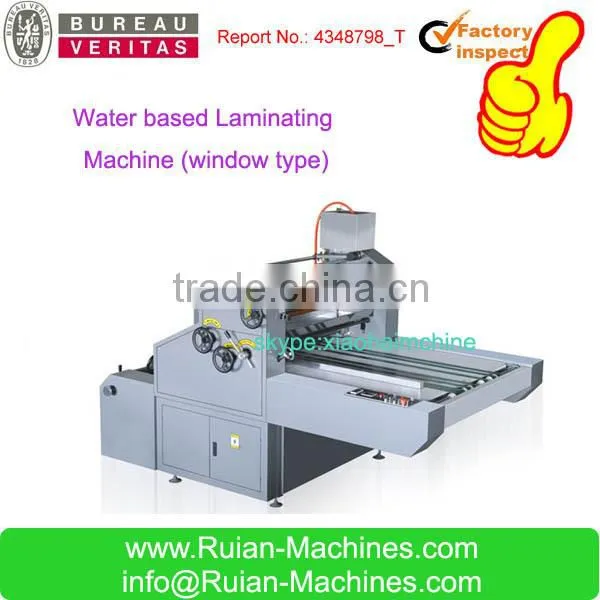

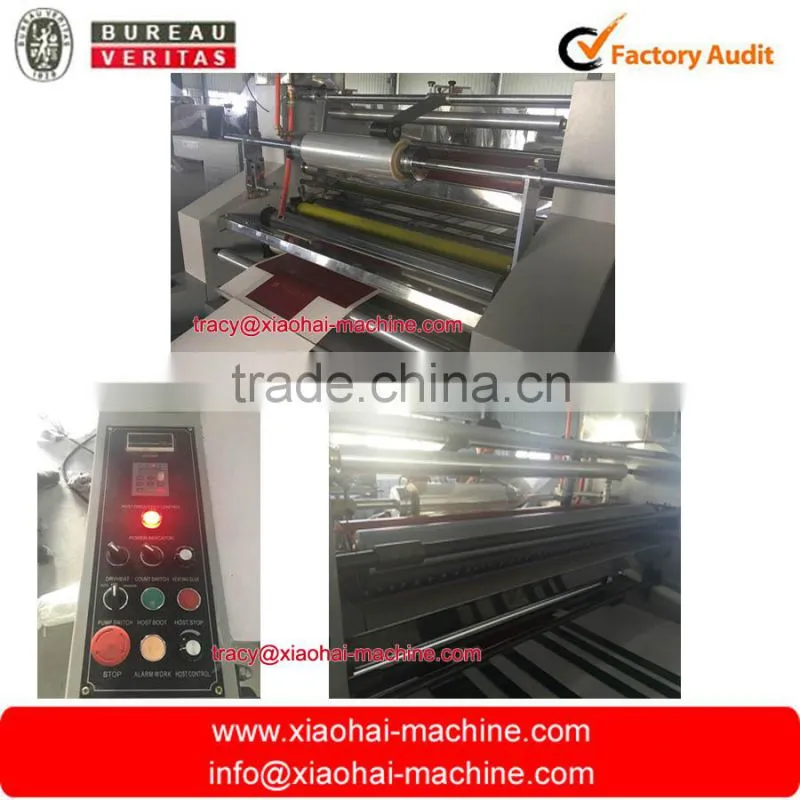

Water based film laminating machine,lamination machine
youtube link: http://youtu.be/cMpWfmHlVU8
1. the machine adopts imported inverter, with stable performance.
2 it equips with the automatic stopping for lacking paper, paper counting, automatic film cutting, treatment of finished product fast pushing systems.
3 This machine has a compact structure and reasonable, with high-speed and energy-saving .
4 Adopt immersion coating method, the pump automatic purvey glue .
5 Power supply for 220V, 50HZ.
6 The machine adopts Cast-iron structure, long service life, no deformation.
7. The machine using four rollers double pressure Lamination, product quality is stable and reliable.
Usage
Water-based film laminating machine is a full environment-friendly laminating machinery, it uses environmental protection of water-soluble glue, which can be put film (BOPP) or polyester film and print Lamination. Products has a high degree of transparency, good dimensional sense, and easy to stick. There is no snow, and non-foaming, non-toxic, and tasteless. The products are widely used in textbooks, book cover, pictures, calendars, product samples, packaging carton mounted plastic, which is an ideal equipment to improve print quality.
main technical parameters
Model | CSFM-1000 | CSFM-1200 |
Maximum width | 950mm | 1150mm |
Paper Thickness | 250g/m² Above | 250g/m² Above |
ing speed | 50(m/min) | 50(m/min) |
Total power | 3.15(kw) | 3.15(kw) |
Total weight | 1500kg | 1600kg |
Overall Dimensions | 2700×1500×1400mm | 2700×1700×1400mm |

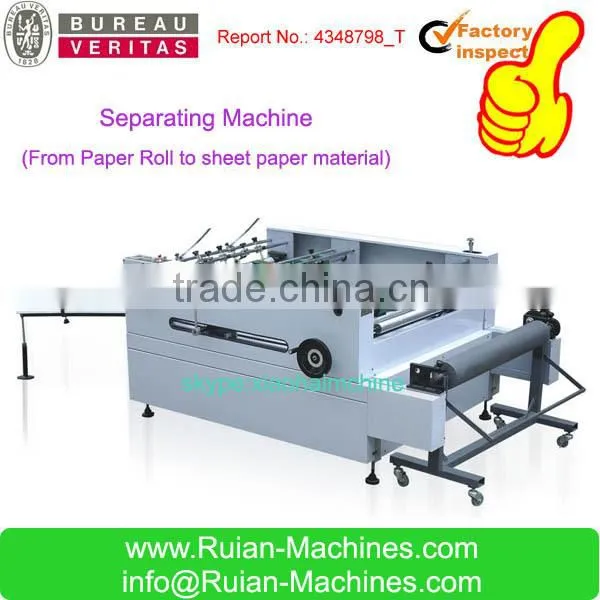

Related Machines Pic:
