HSY-S209 Standalone RFID Relay Control One Door 2000 Card Users Digit Access Control Keypad
Advantage:
1. OEM/ODM orders are welcome;
2. Highly quality products with competitive price ;
3. Safety and fast delivery .
4. CE,FCC,RoHs certificates .
Access control keypad Introduction:
The product is Contact-less inductive card Metal Password Access Controller,According to the model, respectively support ID or IC cards, It is one of the most advanced stand alone access controller. It uses unique metal exterior design, Dexterity keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety and reliability is extremely high, can provide a powerful security for 2,000 users.
It has strong functions, such as low power consumption, Luminous keyboard, independent passwords, wiegand output, the output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface, level of security Settings, etc. widely used in home, office, residential area and other public places.
Access control keypad Specification:
Product Parameters: |
|
Model No: | HSY-S209 (waterproof) |
Low power consumption: | less than 30mA standby current |
Luminous keyboard: | the night can also operate keyboard |
User capacity: | support 2,000 users |
Independent password: | can use password which irrelevant with the card to open the door |
User modification password: | Users can revise the door password |
Search speed: | charge to open the door time less than 0.1 S. |
Output short circuit protection: | electric lock or alarm output circuit within 100 μS when shut down automatically output |
Wiegand output: | With Wiegand output interface,Wg26 card number or Wg4 buttons output |
Usable keyboard delete card number: | After card is lost, usable keyboard delete card, Thoroughly eliminate safety lapses |
The demolition alarm: | Illegal dismantling machine, built-in alarm sound buzzer |
The bell button and interface: | key and circuit segregation, external any the doorbell. |
Technical parameters: |
|
Working frequency | 125khz or 13.56mhz |
Standard interface | Wiegand 26 input |
Work Voltage: | DC9-28V |
Static Current: | ≤30mA |
Reading Range: | 3~8cm |

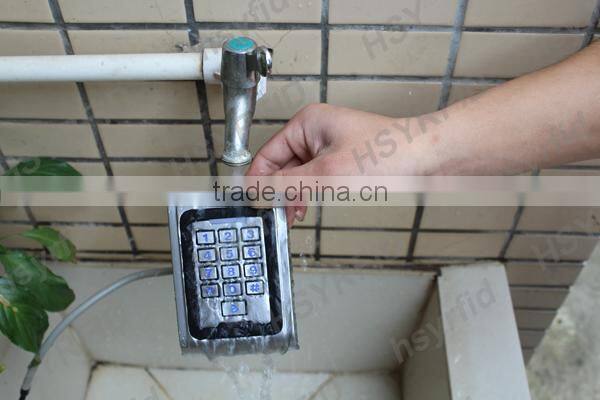

Waterproof degree: | IP68 rating |
Ambient Temperature: | -25~60 Degree |
Ambient Humidity: | 10%~90% |
Electricity lock output: | ≤3A |
Alarm output: | ≤20A |
Output short circuit protection time: | ≤100μS |
Open time: | 0 ~ 99 seconds (adjustable) |
Size: | 120(L) x 80(W) x 25(H) mm |

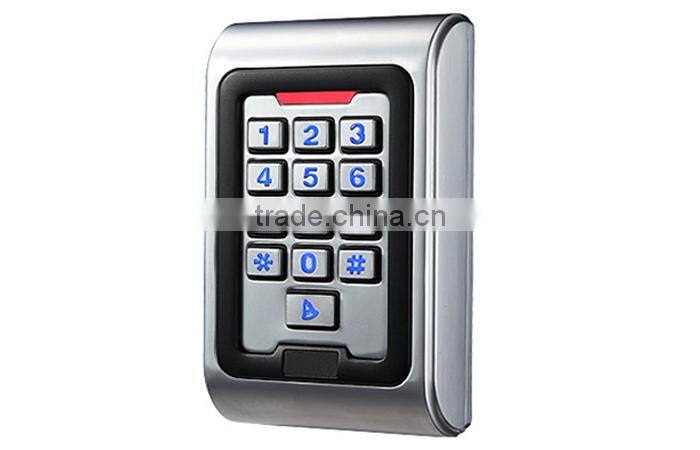

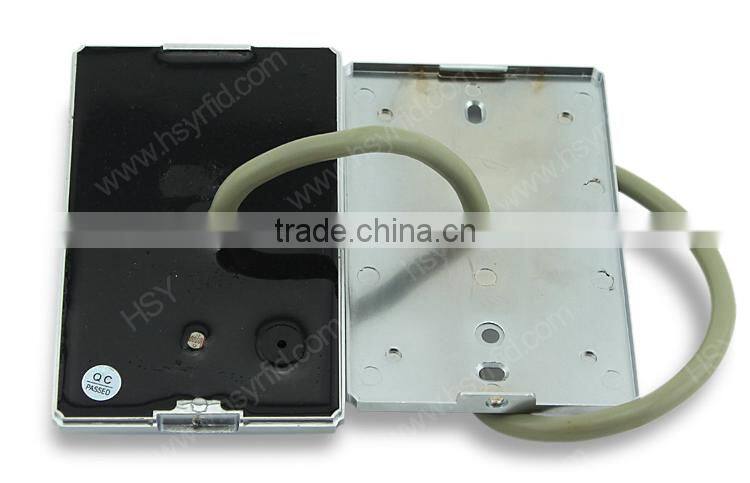

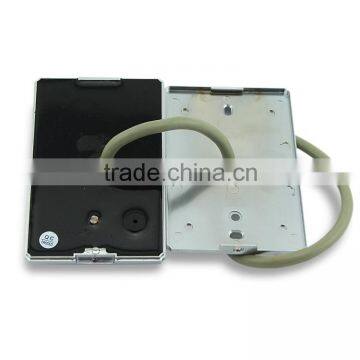

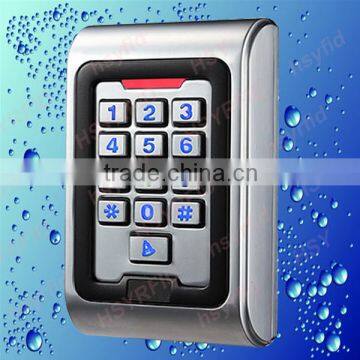

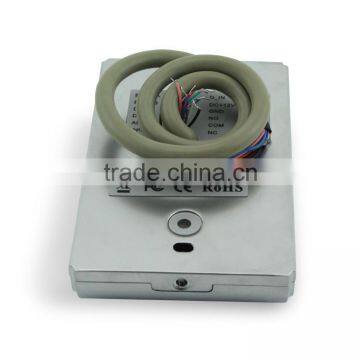

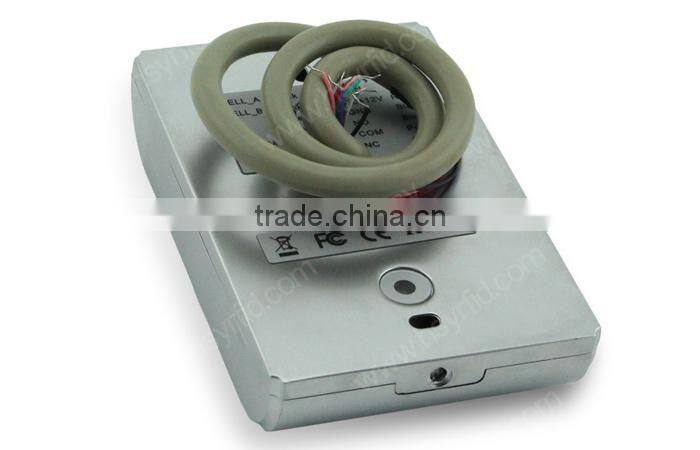

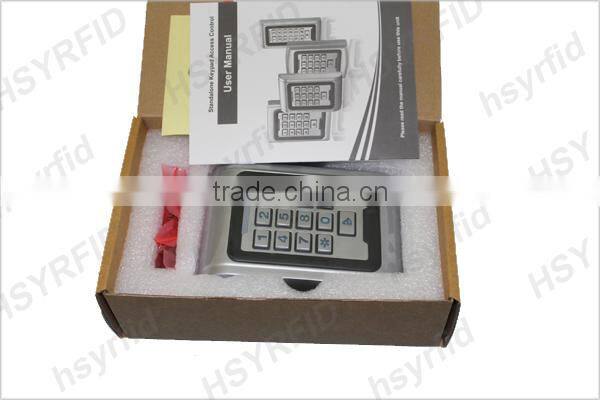

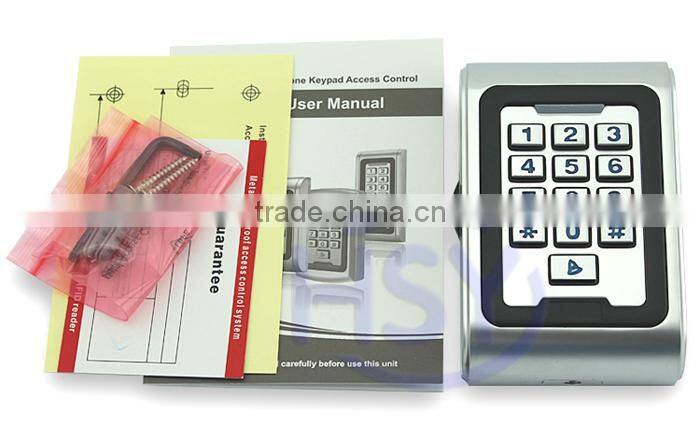

Access control keypad photos:

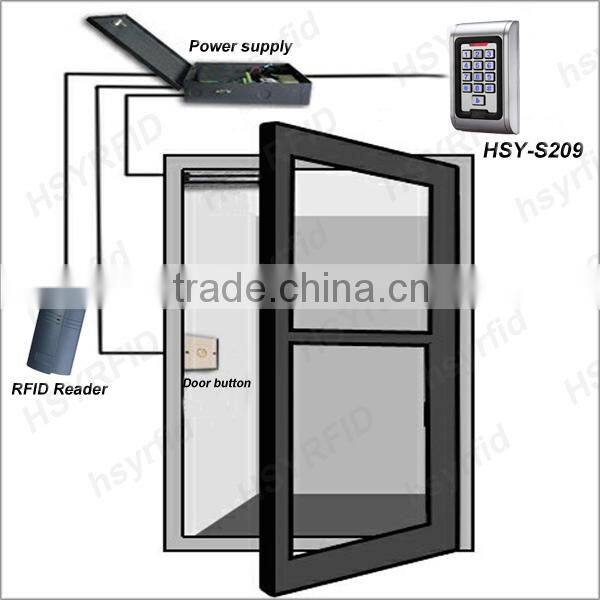

Application:

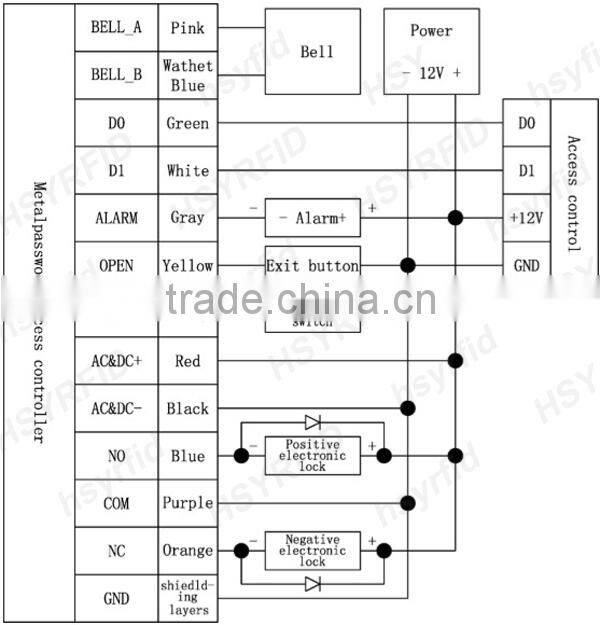

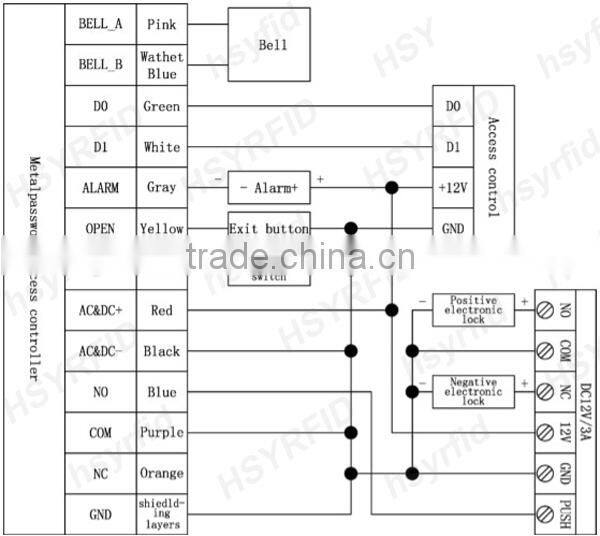

Ordinary Power Supply Wire connection:
Access Control power supply wire connection:
Shipping :
1. Fast way: By express courer, such as: DHL, Fedex, UPS, TNT, EMS... take about 3-7 days.
2. Cheap way (small package): By China post, should take about 15-70 days.
3. Cheap way: By Air or by Sea shipment.
1. By T/T, Paypal, Westerm union, Escrow in advance.
Product warranty :
1~2 years warranty from the date of delivery, A lifetime technical support
Contact:
Online Skype:jane-hsy;Or send your inquiry in the below,Then Click"Send" Pls!
