Specifications
Specifications1.CMOS 300,000 pixel
2.Horizontal:270 degree vertical: 90 degree
3.IR distance: 10m
4.good price,quality
Specification
Model :F-M166 | ||
Features |
Superiority |
Support monitor via computer and most of intelligent cellphone on the market(such as Android ,Iphone cellphone |
mobile software |
Provide special software in the iPhone or android mobile phone |
|
DDNS(free) |
Built in free DDNS system,like http://demo.easyn.hk, 'demo' is serial code |
|
CMS software |
EasyN multi-window mangement software |
|
System security |
Supports three-level account, password, user multi-level authority management |
|
CPU |
Operation system |
Embedded Linux OS |
Microcomputer processor |
32Bit RSIC Embedded Processor |
|
Network |
Network interface |
RJ-45 10/100Mb self-adaptable Ethernet slot |
Protocol |
Support TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP,PPPoE etc. |
|
Wireless |
WIFI,802.11 b/g |
|
IP mode |
Dynamic IP address, static IP address, PPPOE |
|
Online visitor |
Streaming in (640 * 480)directly connected , Support 4 visitors at the same time |
|
Streaming in(320*240)directly connected , Support 4 visitors at the same time | ||
Streaming in (160* 120)directly connected , Support 4 visitors at the same time | ||
Video |
Compression format |
Motion-JPEG |
Signal system |
CMOS 300,000 pixel |
|
Frame rate |
1-25fps |
|
Resolution |
VGA(640*480),QVGA(320*240) ,QQVGA(160*120) |
|
Image adjustment |
Brightness, contrast. |
|
WB, BLC |
Auto |
|
LUX |
0.3LUX/F1.2 |
|
SNR |
>48dB |
|
Lens |
Standard: 3.6mm |
|
Audio |
Compression format |
G.711/G.726 |
Input |
1 channel linear/microphone input |
|
Output |
1 channel linear output |
|
PTZ |
Motor |
Built-in motor control |
Rotation angle |
Horizontal:270° vertical: 90° |
|
Preset |
Support 15 preset position |
|
PTZ Protocol |
No |
|
Nightvision |
Filter switch |
Can auto-switch automatically, without color cast |
Nightvision |
9Φ5LED lights IR distance: 10m |
|
Others |
Shape material |
Cartoon robot |
environment |
indoor use |
|
Power supply |
5V 2A |
|
Operating temperature |
-10~50°C |
|
Operating humidity |
10%~90%RH |
|
Dimension |
Item size:110mm x 100mm x 125mm (L*W*H) |
|
Package size:170mm x 170mm x 170mm (L*W*H) |
||
Weight |
Item weight:265g (Note:for real products ) |
|
Package weight:625g |
||
Accessories |

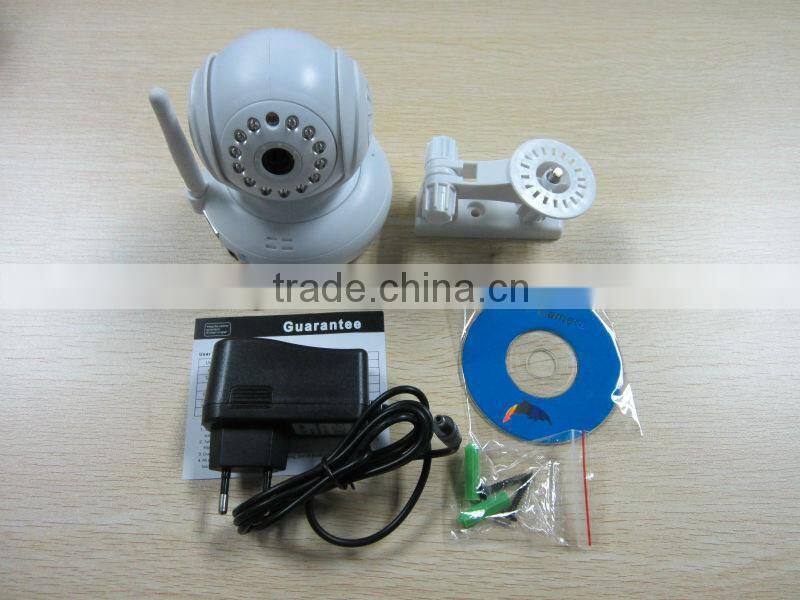

Power adapter,CD,manual,warranty card,srews ,bracket ,antenna |
|
System |
System requirement |
Microsoft Win98 SE/ME/2000/XP,Vista,Win7,Internet Explorer8.0 |
Certification |
Certificate |
CE FCC ROHS ISO |
