4CIF 4CH Intelligent Video Surveillance

Specifications

4ch Intelligent video surveillance
Intrusion detection
PTZ autonomous tracking
Stopped vehicle detection

4CIF 4CH Intelligent Video Surveillance



Features:

• Video Detection Channels: Four
• 4CIF Resolution – low latency-MPEG-4 audio & video streaming
• Intelligent video and network video encoder in one, operates both as a stand-alone unit or as part of an integrated network configuration
• Built-in high-performance self-sustained video analytics, requires no additional HW/SW

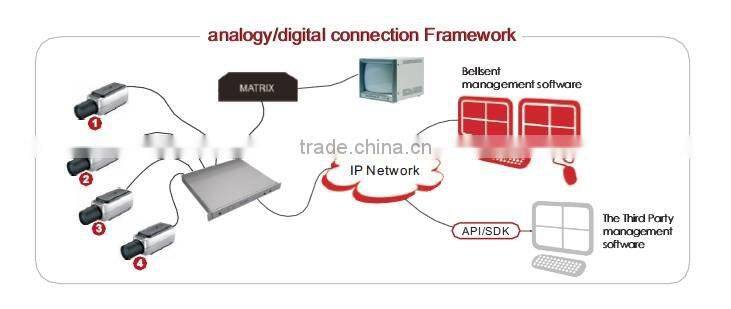

• Hybrid support for both analog and IP network streaming MPEG-4 architectures – includes audio, video and indication of the cause of an alarm with on screen display overlays
• Integrates with existing stationary and Pan/Tilt/Zoom (PTZ) security cameras (NTSC or PAL)
• Two-way audio capabilities
• On-alarm recording to any network PC, featuring continuous, event-driven and scheduled recording
• Performs predefined actions upon detected events
• Built-in HTML web server for access, configuration, and viewing through a network via a standard web browser
• Maintains Quality of Service (QoS): automatically optimizes network quality of service for one or more units, adjusting audio and video streams to bandwidth, traffic characteristics and priority
• Supports remote field-deployment with easy configuration and software upgrades over a network
• Non-PC based processing provides better security system reliability and avoids network latency that slows detection
• Provides better coverage than straight-line detectors or point sensors, such as PIR, fence sensors, ground sensors, smart fences, contact burglar alarm devices, etc.





Specifications

Hardware ( Embedded software)

Embedded intelligent visual analysis module with multiple detections for regional intrusion, tripwire crossing, fence trespassing, converse moving, left behind baggage, theft, illegal parking, loitering etc. Support multiple detection zones, rules and switch. Also support video quality diagnostic and video signal anomaly alert function.

Application interface (API)

Open API and SDK

Physical Dimensions

64×482×392mm (WxHxD)

Analog Video Input

NTSC/ PAL four channels composite video signal, BNC 75Ω Physical Connector

Analog Video Output

4ch Composite NTSC or PAL, BNC 75Ω Physical Connector, Support OSD image overlay output

Digital Video Output

Coding standard:  MPEG-4 Max resolution: 4CIF Bit Rate 128kbps~2.5Mbps adjustable, PTZ camera support max 2.0 Mbps, Frame Rate: full real time ( PAL 25fps/NTSC 30 fps) Support fixed Bit rate (CBR) and variable Bit rate (VBR)by user define Support QOS

Network

Support 10/100 Base-TX Ethernet (auto-adaptive) Ethernet RJ-45 interface Support IEEE802.3/802.3U Support video RTP/IP unicast and multicast Use IGMP multicast by working with switch/ router which support 802.3 10/100MB Ethernet IGMP multicast protocol. TCP/IP based alert message and command.

Serial I/O

RS-232 , RS-485

Alarm I/O Interface

8ch alarm inputs (max 12VDC 50mA), 8ch alarm output (max 24VDC 1A/ 125VAC 0.5A)

Power Source

110/220VAC

Power Voltage

Power Consumption: 36.5W

Working Environment

Operating Temperature: 0°C~50°C (32°F~122°F) Operating Humidity: 5%~95% (Non-Condensation)





I

ntelligent functions:
