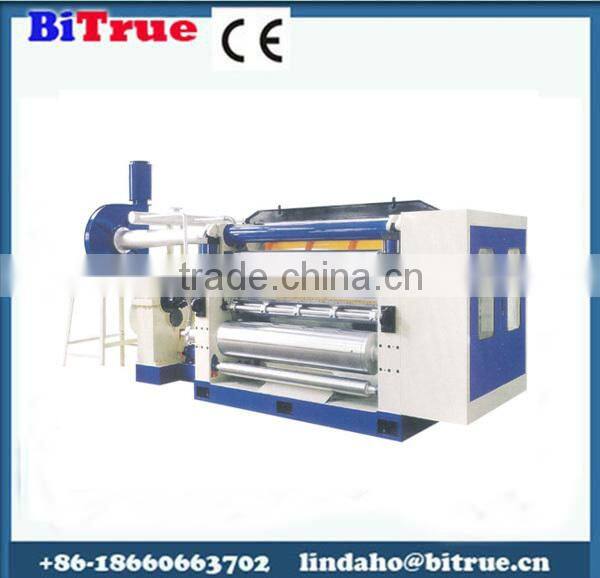

corrugated cardboard making machine
Description of corrugated cardboard making machine :
machine is pivotal equipment, which is designed for die cutting, creasing and cold embossing paper products such as paper cassettes, box board containers, paper trademarks etc.
Unique drive gears are adopted such as high-precision indexing mechanism, pneumatic closed up, pneumatic clutch, overpower protection, manual compression relief etc., to ensure stable and high speed running of the machine.
This machine is equipped with practical and reliable mechanisms such as pre-stack device, secondary delivery mechanisms, manual sampling etc., which ensure the excellent performance of the machine.
Electrical components and driving elements of internationally known brands are adopted to ensure die cutting precision and reliability of running. Also man-machine interface is used to monitor the machine state to display running status, trouble location, troubleshooting and relevant help information to fully actualize man-machine communication
Specifications of corrugated cardboard making machine:
(1) Design Speed: 200m/min
(2) Effective Width: 1400mm-2500mm
(3) Adopt Adsorption and Strain Tighten Set, Adsorption Strain Adjustment Set, to Assure Stick Hard and Level off while the Cardboard Transit Heating Plank
(4) Electric Control Install Two Groups of Operation Plate, Upper and Lower Bridge can be Adjusted Arbitrarily
(5) Adopt In-phase Electric Drive, High Speed Paper Stacking Set
There are many mechanical types of products in our company (three or five or seven layer corrugated production line and so on). With large quantities of models and complete specifications, our products can meet every demand of different clients.
We are the biggest manufacturer for corrugated carton machinery in North China. The features of our machine are high autoimmunization, easy operation and maintenance, high efficiency, good quality of paperboard, compact structure and nice appearance.
We sincerely cooperate with clients from all over the world and we will meet the demands of clients with better production quality and more complete after-sales service
Features of corrugated cardboard making machine:
Design speed: straight knife 120m/min circular knife 150m/min
Effective width : 1400mm-2200mm
The length of paper-cutting is 500-9999mm precision of paper-cutting is ±1mm
The diameter of knife shaft is small . Perimeter of knife is short and high average speed and improve working efficiency easily
Driving system adopts oil pump to automatically cycling lubricating
Gear are high precision and adjustable to ensure blade accurate ,blade edge is high quality and straight well to protect blade
Computer trailing cardboard working speed automatically and keep synchronous
Computer can store many orders and it can finish automatically as to order and priority condition , the screen show many production information
Printing section of corrugated cardboard making machine:
1.Planetary transmission and electrical positioning.360-degree adjustment in both dynamic and static condition.
2.The embossing rollers get apart from printing template oned machine stops.
3. The upper ink roller is equipped with load free system that prevents ink from getting dried when machine is running.
4.Colors of 1 to 4 can be combined easily.
5. Pneumatic siphon ink supply circulation system
Electrical control of corrugated cardboard making machine:
Electrical control system uses the microcomputer control, realized visual display from the feeding, die cutting, delivery each working state and troubleshooting method. With various safety devices to guarantee machine and human safety. Imported Japan Stepless Inverter-controlled main motor. Efficiency enhancement type high power, low energy consumption, lower noise.
The machine adopts Japan OMRON PLC program control, all kinds of electrical components, the detection switch are used German Siemens, French Schneider and other famous international brands, making the performance more stable and reliable. All electronic components are CE standard.
