Automatic On/Off DC with Light + Time controller solar power street light led
BR SOLAR street light design from 5W to 120W LED for choosing

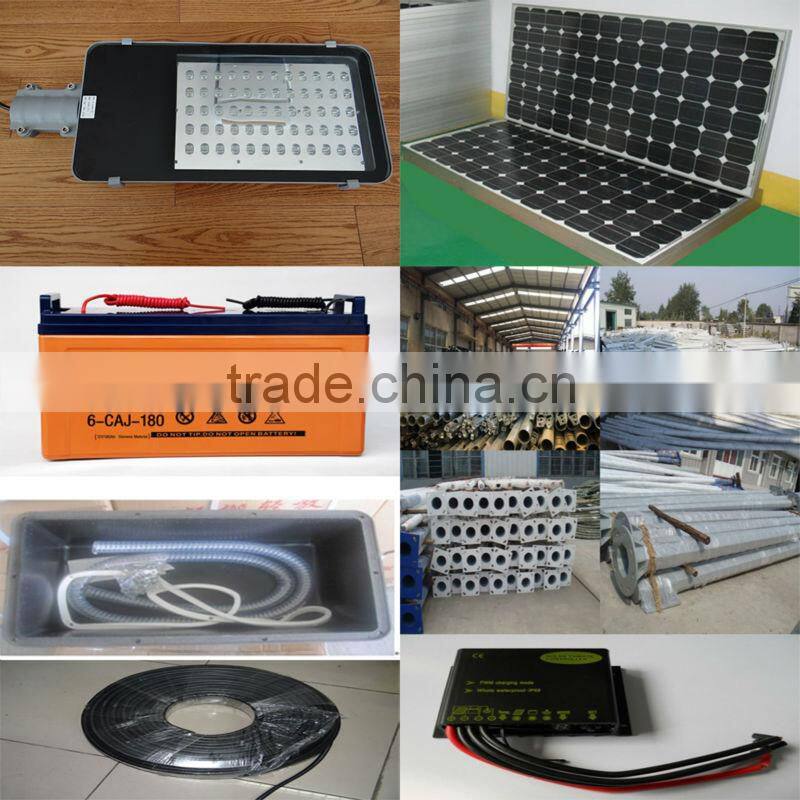

Brief Specification for 6M Height 30W solar power street light led design based on Africa's average solar radiation condition 5.0KWH,Lighting hours: 11-12 Hrs/Day*3-4 days
1. Pole Height: 6M, Diameter: 75*150mm, Thickness: 3.25mm
Plastic coated on HDG pole, resistant to wind: 150KM/H
2. Applicable light source: 30W LED, 3900LM,Lifespan:>80000Hrs.
3. PV Module: High efficient 120W*1PC.
4. Gelled battery: 120Ah*1PC, Fee Maintence, Deep Cycle, Sealed Type.
5.Battery Box: Engineer Steel, top of pole
6. Controller: 15A/12V Automatic control by microcomputer
Detailed Specification for 6M Height 30W solar street light led | |
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 120W*1PC Polycrystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Gelled Battery Lifespan:5-8 years | 120Ah/12V*1PC, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 15A/12V,IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed Hours later.(11-12 Hrs) |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 30W LED, White Color,3900LM/PC,6500K,IP65, High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
Battery Box: | Engineer Steel,on top of the pole. |
GI Pole System: Lifespan: More than 20 years
| 6M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H |
Unit Price(FOB Shanghai) | USD439.00/PC |
Getting more information on this 30W solar street light led , mail or call us please.
BR SOLAR power street light working principle:
BR SOLAR power street light design should know below answers:
First:
1).the power of your required LED light?
2).the height of the pole?
3).how many hours/night the light can work?
Second:
If you have no idea on the above question, we could design for you,
please inform us:
1). What’s the width of road?
2). What’s your request on the power of the light source?
The end:
Please choose your favorite model from our website or the catalogue.

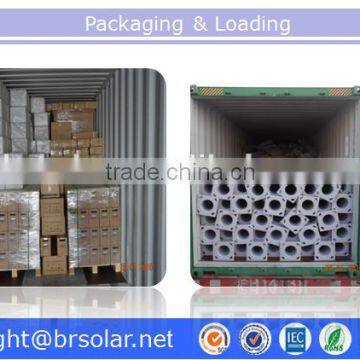

BR SOLAR power street light Detailed Packing&Loading:
LED Light: carton packing;
PV Panel: carton and pallet packing;

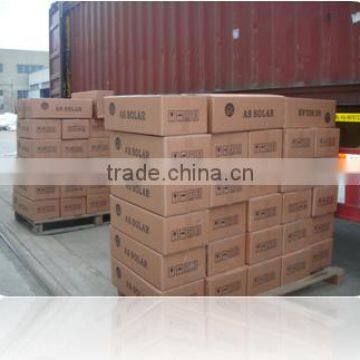

Solar Battery: carton and pallet packing;

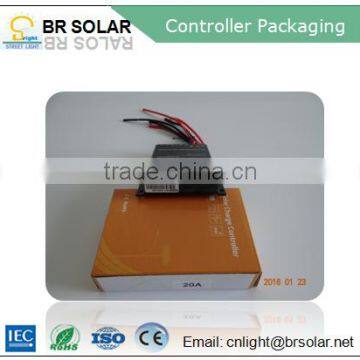

Controller: carton packing;
Pole and Brackets: bubble wrap
BR SOLAR power street lights Applications:
Solar Street Light; Solar Road Light;
Solar Path Light; Solar Parking Lot Light;
Solar Driving way Light; Solar Highway Light;
Solar Freeway Light; Solar Avenue Light;
Solar Sidewalk Light; Solar Remote Area Light;
Solar Military Bases Light; Solar Security Light
Solar Garden Light Solar Park Light
Solar Gate Light Solar Grave Light
Solar Entrance Light Solar Fence Light
Solar Campus Light
BR SOLAR Brief Introduction:
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, UK, Canada, Germany, Spain, Greece, Italy, Sweden, France, Portugal, Cyprus, Romania, Croatia, Middle East, New Zealand, Fiji, Norway, Belgium, France, Italy, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Bangladesh, Qatar, Yemen, Singapore, Philippines, Cambodia, Nigeria, Congo, Mexico, etc.
Please note, our best competitive products:
10W-120W Solar LED Street Lights;
10W-240W LED Lamp and LED Housing;
Solar Panel below 300W;
24Ah/12V~250Ah/12V&300AH/2V-3000AH/2V Solar Battery
BR SOLAR Factory Pictures:
BR SOLAR Clients Visiting:
BR SOLAR Exihibitions:

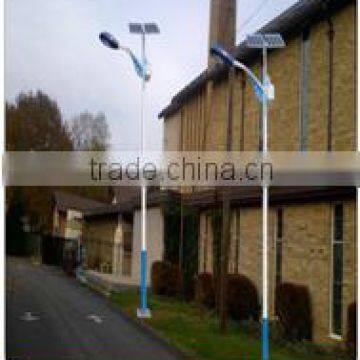

BR SOLAR Installation Photoes:
BR SOLAR Certificates:
Starting order from BR SOLAR Service:
What we offer
Quality solar systems are offered at competitive pricing
Excellent sales and customer service skills
We are not a pushy sales team , we believe in honesty and integrity & doing RIGHT by our customers
Before and after sales service
Warranty
BRIGHT SOLAR Guarantees the purchaser for the period of two (2) to five (5) years for the whole lighting system.
Installation
BRIGHT SOLAR offers detailed instructions and videos for installation.
Especially we provide engineers to site installation training for 7 to 15 days accordingly.
Thanks for choosing our professional service and experience.
