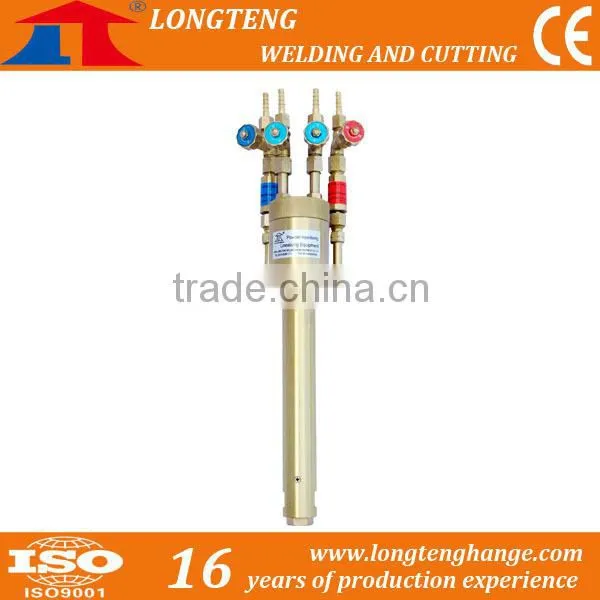

32mm Zinc Powder Spraying and Marking Cutting Torch For CNC Flame and Plasma Cutting Machine
US$ 220 - 221
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
longteng
Model Number:
LT-PH-02
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gas Cutting Torch of 30mm Zinc Powder Spraying and Marking Powder Torch for CNC Cutting MachineNegotiableMOQ: 1 Unit -
High Effective Flat Double Head,Twiner Gas Cutting TorchNegotiableMOQ: 1 Piece
-
H450-45 Water Cooled Heavy Duty Cutting Torch For CNC Flame Cutting TorchUS$ 100 - 500MOQ: 1 Piece
-
Heavy Duty Acetylene Propane Water Cooled Gas Cutting TorchUS$ 22.3 - 7,902MOQ: 1 Piece
-
Mini Straight Strip Gas Cutting Torch for Gas Cutting MachineNegotiableMOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
longteng
Model Number
LT-PH-02
Specifications
Powder Marking Torch1.tube diameter: 32mm
2.tube length: 210mm
CE certification and ISO 9001:2008
32mm Zinc Powder Spraying and Marking Cutting Torch For CNC Flame and Plasma Cutting Machine
1) Quick Detail:
1. 32mm powder spraying and marking device
2. Applicable to CNC flame cutting machine
3. The material is brass,outer diameter is 30mm
2) Description:
1. The powder spraying device has 4 gas inlet channels among which 3 are for oxygen,1 for Fuel gas.Two outermost channels, one is for preheat oxygen,the other is for Fuel gas; the middle one is for cutting oxygen; by which it is for powder spray.
2. Firstly,screw off knurled nut,put zinc powder into storage tank and screw on the nut.
3. Secondly,ignite powder spray device, adjust cutting oxygen,open the value of powder spray gas channel,then zinc powder will be automatically sprayed onto the plane.
1> Standard Configuration
Gun body,regulating valve,flashback arrestor,nut,core(core can be customized according to the size of the hose)
3) Applications:
It is applicable to digital-control cutting machine of different series. It is melts zinc powder inside storage tank with flame and spray it onto the steel plate according to design, then along the zinc powder line cutting machine conducts cutting with digital-control cutting torch.The width of the line is 0.5mm,which is adjustable.
4) Specifications:
Model Number |
LT-PH-02 |
Brand Name |
Longteng, OEM |
Place of Origin |
Wuxi, China (Mainland) |
Certification |
CE,ISO |
Loading Port |
FOB Shanghai |
Payment Terms |
T/T, L/C, Western Union |
Material |
Brass |
Tube Length |
200mm |
Outer Diameter |
32mm |
Working Speed |
0.3~30m/min |
Line Width |
0.6-1.2mm |
Line Thickness |
0.05~0.20mm |
5) Competitive Advantage:
1> Product Advantage:
1. Adopt the isobaric preheating,use the zinc powder spraying more than 200 mesh,can be continuous powder spraying and marking,clear line,compact structure,strong and durable.
2. Suitable for automatic equipment and perform the various of complex graphic.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
1,000-3,000 square meters
Total Employees
51 - 100 People
