guide rail/guide rail track of CNC Oxy-fuel Cutting Machine
- 1000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Longteng | Model Number: | guide rail for sale |
Product Description
Specifications
c guide track price2. cnc cutting machine used
3. small gantry used

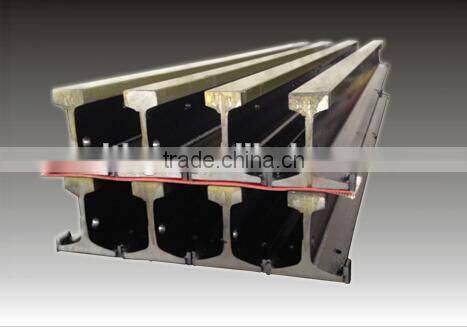

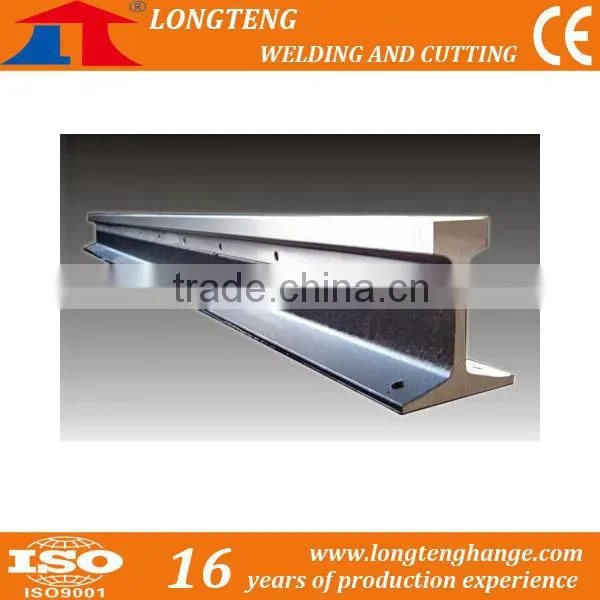

guide rail/guide rail track of CNC Oxy-fuel Cutting Machine
1)Quick Detail:
1. railway rail
2.Rail for CNC Ganty Cutting Machine
3. 24KG
2)Structural Features
1. Surface treatment: Smooth and beauty
2.100% inspection on critical dimensions with high accuracy +/-0.01-0.005mm
3)Applications:

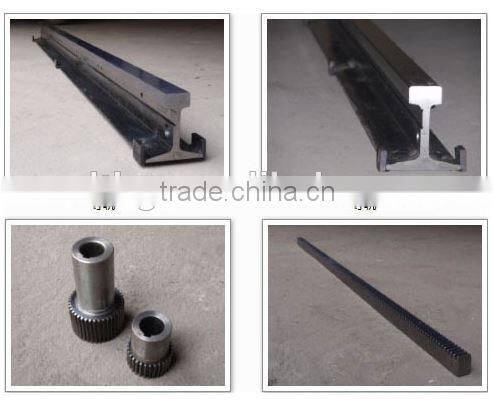

This rail is the part which use for the CNC gantry Cutting machine which include the H Type support rail beam,
big and small base plate, left and right adjustment bolt, the first nut, pressing plate bolt, high and low bolt. The
mentioned big and small base plate welding on the H beam support rail beam for support the rail;
the big and small base plate has the left and right adjustment bolt and first nut to adjust the left and right
position of the rail; the mentioned big and small base plate has the fixed bolt which could compress the rail,
the rail has the high and low adjustment bolt to adjust the high and low position of that.
Above that all, the connection place insert the tie rod, use bolt, the second nut and the joint ring for fixing,
which could achieve the gantry CNC machine for the stable moving and the high precision.
4) Specifications:
Model | Length1 | Length 2 | Top Width | Base Width | Height |
24KG | 2 meter | 3 meter | 45mm | 88mm | 103mm |
38KG | 2 meter | 3 meter | 55mm | 108mm | 120mm |
43KG | 2 meter | 3 meter | 55mm | 108mm | 133mm |
50KG | 2 meter | 3 meter | 55mm | 125mm | 142mm |
5)Maintenance Skills:
1. Replace the consumbles in time before completely damaged.
2. Avoid the collision of the torch height controller.
3. Keep the connection threads clean.
4. Check if there are loose parts.
6) packing Details:
7)Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
8) Company Show:
9) Certificates:
10) Transportation:
For small quantity are usually sent by Express (Air ), such as DHL, FeDex, TNT, UPS, EMS,freight prepaid or freight collect by customers' account; For large quantity are usually sent by Sea.
11) Contact Information:
Contact person:Ms.Marina
Skype: longteng4
WhatsApp: +86-18262293399
Email/@email/Email/email address
Wuxi Longteng Welding and Cutting Equipment Co.,Ltd.
