| Product Specifications | |
| Dimension (mm) | 600×600×400 |
| Voltage/Frequency | 220V/50Hz (other available) |
| Motor | 200W (3 /5 speeds) |
| Noise Level(dB) | ≤57 |
| Maximum Wind Pressure(Pa) | 290 |
| Air Flower(m3/h) | 660-800 |
| Outlet Diameter(mm) | 150 |
| Chimney Height(mm) | 400 / 400-800 |
| Product Details | |

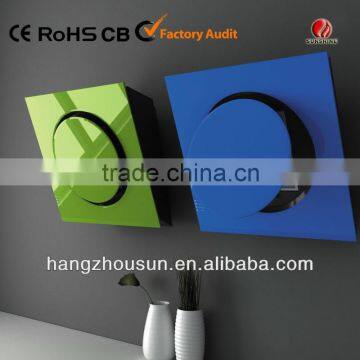

| Name | New design vent hood |
| Certificate | CE, CB, RoHS, SASO, CoC, Col, SONCAP, etc |
| Characteristic Components | Illumination: Halogen/LED lights |
| Filtration Type: 5 layers aluminum filters | |
| Switch: finger touch button & remote control | |
| Optional | · Brushed stainless steel / Black & Mirror color chimney available |
| · Charcoal filter available | |
| Features | · Fashionable green glass decorae your kitchen more modern |
| · Passive silencer set a clear,soft tone to your cooking area | |
| · 5 layers aluminum filters, easy to wash, effectively trap grease | |
| · Crystal(piano key) button control improve range hood' grade | |
| · Timer delay system: A delay timer enables you to set a "delay time" for the hood to maintain | |
| operation even after cooking to extract residual smoke. when the set time is reached, the hood will | |
| automatically turn off. | |
| · Gas & Heat sensor: Any papid change of temperature and gas&heat lakkage is detected | |
| automatically when the auto function i turned on for providing you with a safer kitchen environment. | |
| ·In carton boxes | |
| ·Packing size: 680x460x650 | |
| ·Gross Weight (kg): 27kg | |
| ·Net Weight (kg) : 24kg | |
| MOQ | 100piece/pieces |
| Warranty | 1 year |

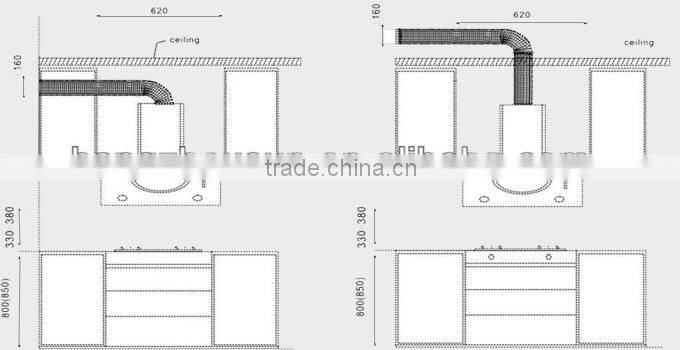

Installation Draw:



Hangzhou Yangguang Bathroom Kitchen Electric Co, Ltd
Our company built in 2002,we have exported abroad for 10 year specializing in various kitchen appliance. As a good manufacturer, we provide OEM service to oversea customers, export to Europe ,Middle East, South East Asia, Africa and many other areas.
OUR MISSION:
Your satisfaction is our hope, and your hope is our pursuit.
Customer`s requirement are our working standard.
Customer`s appreciation is the largest source of revenue of an enterprise.
OUR SERVICES:
one year of warranty
OEM & ODM are available
Spare Parts
CKD & SKD
Reply in 24 hours
Sample can be provided in one week.
Q: What`s the minimum order quantity?
A:Our minimum order quantity is 100pcs per model.
Q: What`s the mode of payment?
A: About payment terms, we support T/T or L/C.
Q: Can we provide the sample?
A: Of course we can.
Q: How long is our warranty?
A: Quanlity warranty for one year.
Q:Can you add your logo on the range hood or gas hob?
A: Yes,OEM and ODM are avaliable for us.
Q: Can you have the visit to our factory before the order?
A: Yes,welcome to our factory.
Here is our factory address:Hangzhou Yangguang Bathroom Kitchen Electric Co,Ltd Zhejiang ,China
