Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > Nantong Teli Hydraulic Steel Press Brake

Nantong Teli Hydraulic Steel Press Brake

Name: Nantong Teli Hydraulic Steel Press Brake
Brand: haiwei
SKU: 100732803
Availability: InStock

Nantong Teli Hydraulic Steel Press Brake thumbnail-1

Nantong Teli Hydraulic Steel Press Brake thumbnail-2

Nantong Teli Hydraulic Steel Press Brake thumbnail-3

Nantong Teli Hydraulic Steel Press Brake thumbnail-4

Nantong Teli Hydraulic Steel Press Brake photo-1

Nantong Teli Hydraulic Steel Press Brake photo-2

Nantong Teli Hydraulic Steel Press Brake photo-3

Nantong Teli Hydraulic Steel Press Brake photo-4

US$ 50,500 - 60,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

haiwei

Contact Supplier Request Quote Chat Now

Nantong Teli Forming Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name haiwei

Model Number WE67K-300/4000

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Extra Services End Forming

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

Specifications

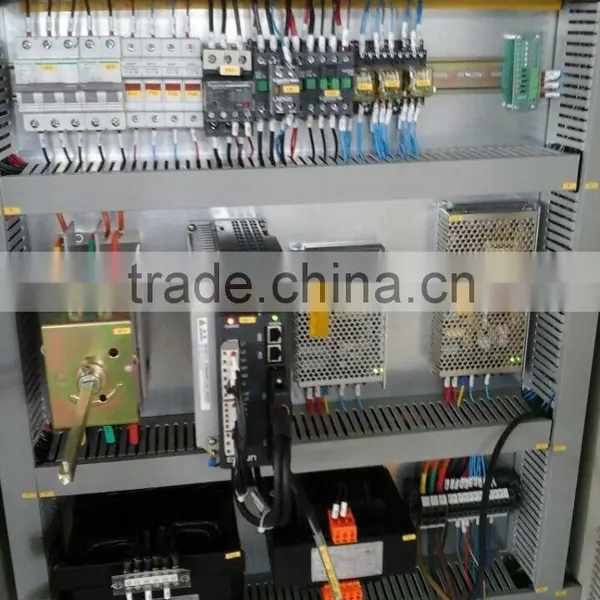

1,cnc control
2,protective backgauge

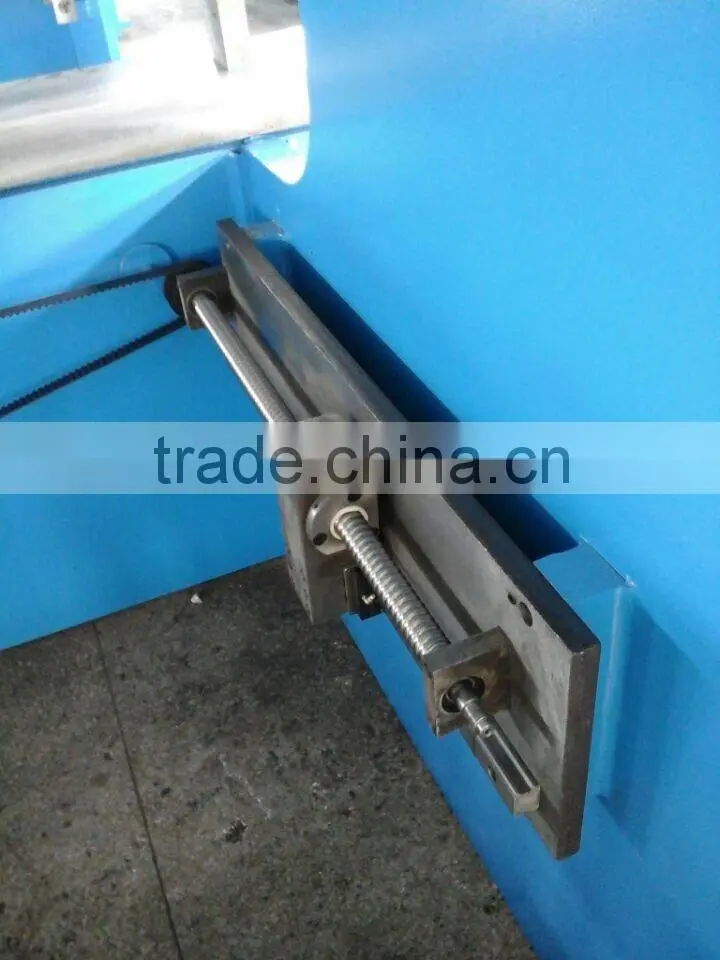

3,ball screw

This hydraulic press brakes proved the ideal solution for all general bending application.

It uses the proven torsion bar synchronization system, coupled with positive stop nuts in the cylinder to ensure accurate, consistent bends

Feature and Advantages:

(1). This machine adopts hydraulic electric control, sliding block stroke can be adjusted, and have some fixed, semi-automatic, automatic movements such as norm, using dynamic specification can easily test and adjustment

(2). lift bending machine design, double oil cylinder work at the same time, balance, convenient operation, safety

(3). The dead point have confirmed when rolling function, ensure that the workpiece precision

(4). Under the condition of the relevant national standards, bending Angle precision of plus or minus 45 '. (refer to standard JB/T22572-1999)

(5). A slow decline control function, the operator can better control the workpiece

NO	Press brake Model	Pressure KN	Table Length mm	Uprights Distance mm	Open Height mm	Throat Depth mm	Ram Stroke mm	Power KW	Dimension
1	WC67Y-40T/2500	400	2500	2050	210	200	110	4	260012701980
2	WC67Y-63T/2500	630	2500	2050	235	250	120	5.5	260013602050
3	WC67Y-80T/3200	800	3200	2500	235	250	120	5.5	330014002200
4	WC67Y-100T/2500	1000	2500	2050	330	320	150	7.5	260014002300
5	WC67Y-100T/3200	1000	3200	2500	330	320	150	7.5	330014002380
6	WC67Y-125T/3200	1250	3200	2500	330	320	150	7.5	330014002380
7	WC67Y-125T/4000	1250	4000	3100	330	320	150	7.5	410014002480
8	WC67Y-160T/3200	1600	3200	2500	400	320	200	11	330015502580
9	WC67Y-160T/4000	1600	4000	3100	400	320	200	11	410015502760
10	WC67Y-200T/3200	2000	3200	2500	400	320	200	15	330016502930
11	WC67Y-200T/4000	2000	4000	3100	400	320	200	15	410016503070
12	WC67Y-200T/6000	2000	6000	4800	400	320	200	15	610017503360
13	WC67Y-300T/4000	3000	4000	3200	435	350	200	22	410018503285
14	WC67Y-300T/6000	3000	6000	4800	435	350	200	22	610019503540
15	WC67Y-400T/4000	4000	4000	3200	520	400	250	37	410020003540
16	WC67Y-400T/5000	4000	5000	4100	520	400	250	37	510021003540
17	WC67Y-500T/4000	5000	4000	3100	600	400	300	45	410024003710
18	WC67Y-500T/5000	5000	5000	4100	600	400	300	45	510025003900
19	WC67Y-600T/4000	6000	4000	3100	600	400	300	45	410026503750
20	WC67Y-600T/6000	6000	6000	4800	600	400	300	45	610026004250

Usage

It can be applied to boiler tank, air conditioning channels, sheet metal cover, cone making and other aluminum and steel fabrication, marine and ship building, pressure vassals and wind mills.
