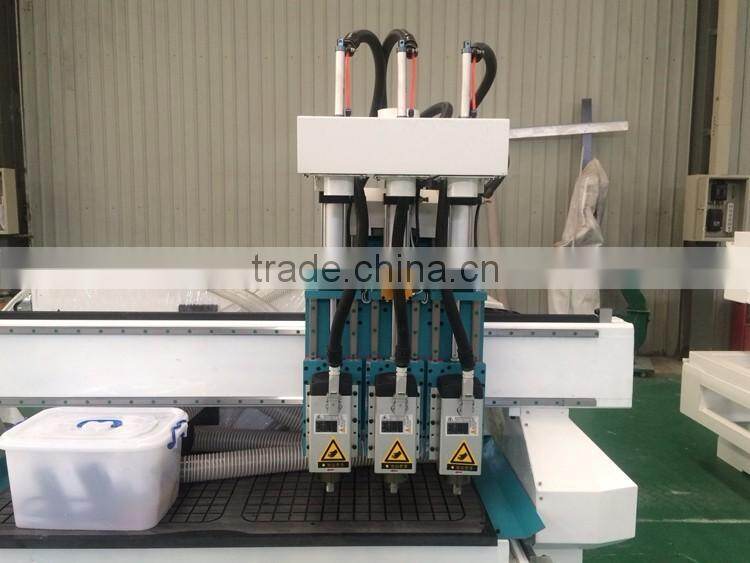

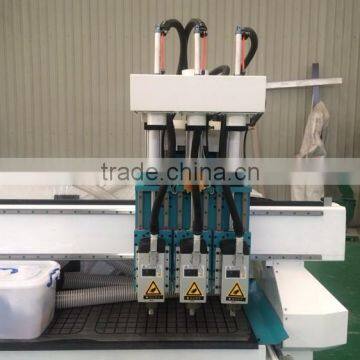

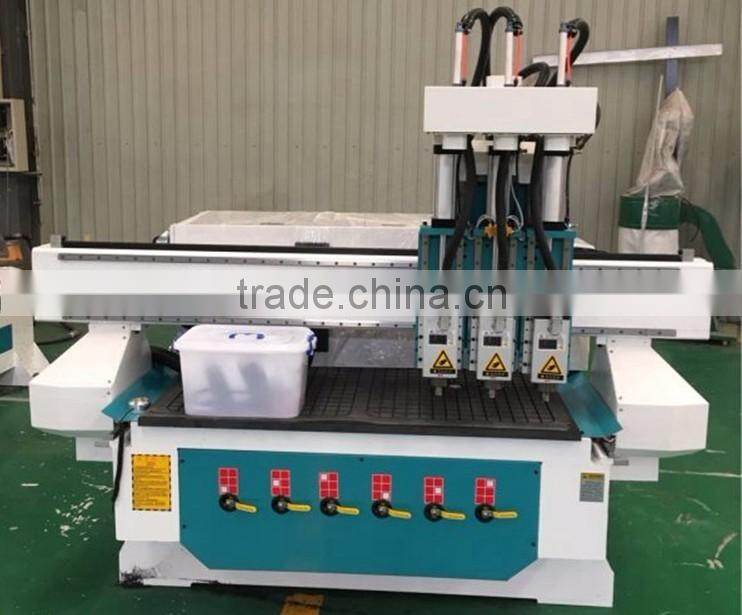

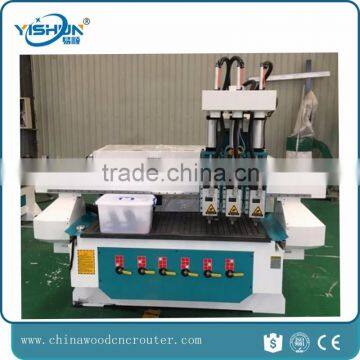

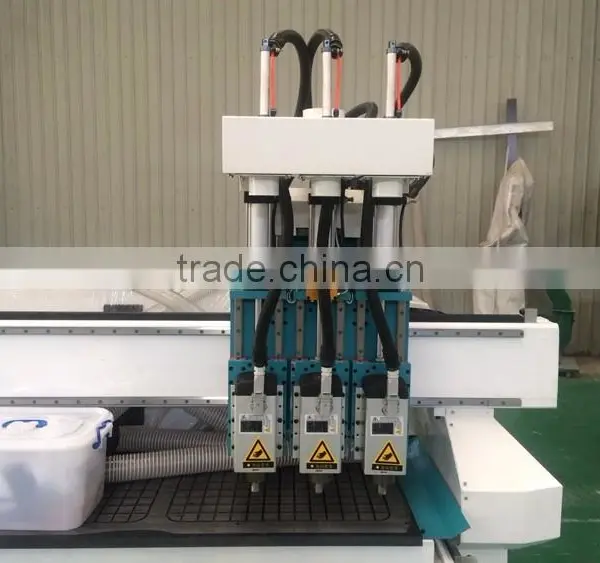

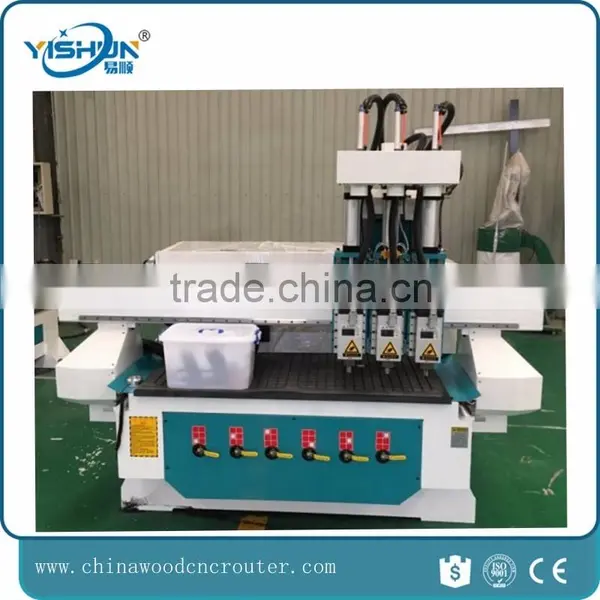

multi spindle 3d cnc router cnc machine cnc router machine
Performance index
Model NO. |
YS-1325D-3 Wood CNC Router |
Table Size |
1440×3000mm |
X Y Z Traveling Area |
1300x2500*200mm |
Table Structure |

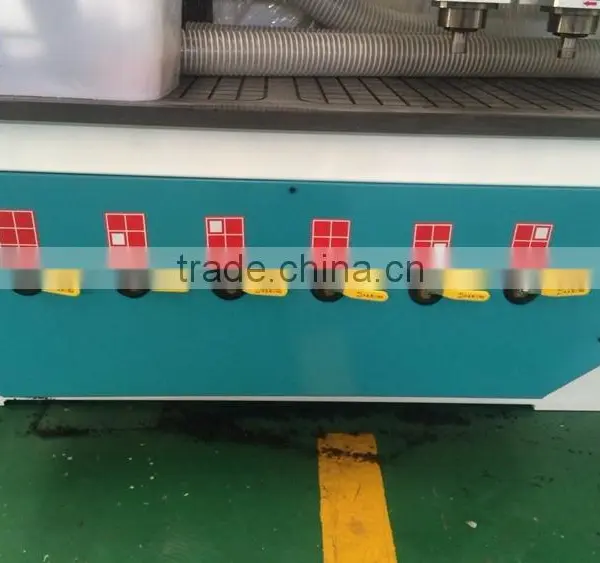

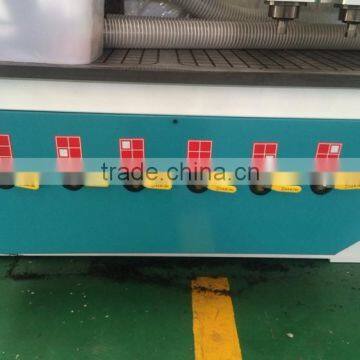

Vacuum Table |
X Y Transmisson |
Rack Gear |
Z Transmission |
Germany Neef Ball Screws |
X Y Z Guide Rail |
TAIWAN HIWIN Square Rail |
Spindle Power |
3*4.5kw Italy HSD Air Cooling Spindle |
Driving System |
Japanese YASKAWA Servo Motor |
Max Spindle Speed |
18000r/ min |
Max Traveling Speed |
45m/s |
Max Working Speed |
38m/s |
Processiong Accuracy |
±0.025mm |
Reposition Accuracy |
≤0.025mm |
Working Voltage |
380V 50Hz |
Work-holding |
Vacuum Suction |
Processor |
Windows /100MHz |
Interface |
PCI |
Command |
G*.u00*.mmg*.plt |
Operation system |
TAIWAN LNC Operation System |
Power(not include the spindle) |
500W |
Net weight /Gross Weight |
1100KGS /1200KGS |
Package dimension |
3200*1840*1900mm |
Functional Characteristics
1. This style is equipment with 2-4 kinds of cutters, there is no need to change the cutters when engraving or cutting. The program can work automatically. The advantage is low investment. High profit, low maintenance, easy to operate. It is also very easy for new user to operate.
2. Advanced control system can multiply level of 3D work automatically. It is very convenient, and can finish the 3D work fast and smoothly.
3. The whole machine is welded with thick seamless steel structure, the stability is good, not easy to be deformed. The machine adopts gantry movement, it can process any kinds of materials freely.

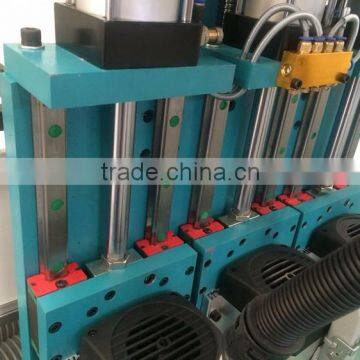

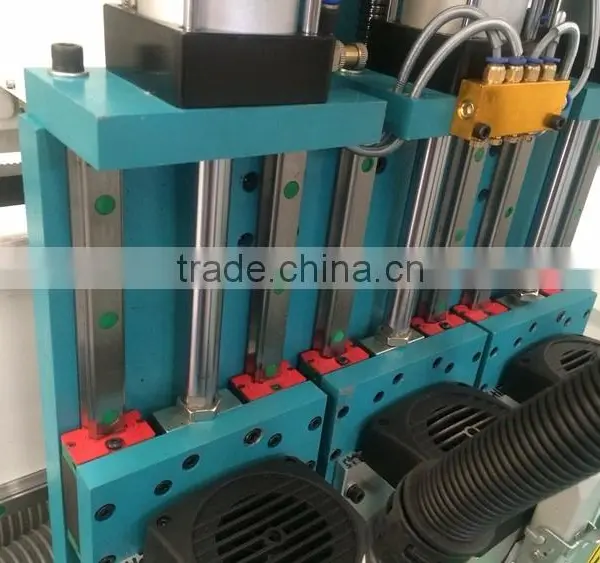

4. Adopt important linear square orbit, two line sliding track, heavy loading, stable working, high precision and long lifetime. Adopt imported ballscrew, high precision.
5. Well compatibility: CAD/CAM designing software e.g.TYPE3/Artcam/Castmate/ Wentai etc.
6.This model is suitable for processing any kinds of materials in bulk.
Apply to industry and materials
Furniture: wooden doors, cabinets. Plate, office and wood furniture, tables, chair, doors and windows.
The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
Apply to industry and materials
Furniture: wooden doors, cabinets. Plate, office and wood furniture, tables, chair, doors and windows.
The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
We have the following configuration for your choice:
Item |
Option |
|||
Model |
YS-1325 |
YS-1530 |
YS-2030 |
YS-C |
X Y Working Area |
1300*2500mm |
1500*3000mm |
2000*3000mm |
Custom made |
Operation System |
Taiwan Syntec German Siemens March 3 DSP Nc-studio |
|||
Table |
Vacuum T-slot Combined Vacuum and T-slot |
|||
Inverter |
Taiwan Delta German Siemens China Fuling |
|||
Spindle brand |
Italy HSD China made |
|||
Spindle cooled |
Air cooled water cooled |
|||
Spindle Power |
0.8kw 1.5kw 2.2kw 3.5 kw 4.5kw 6kw 7.5kw 9kw |
|||
Working Voltage |
220V 380V Custom made |
|||
