Home > Products > Leveling Feet > Superior Quality Adjustable Feet HG-L-0062

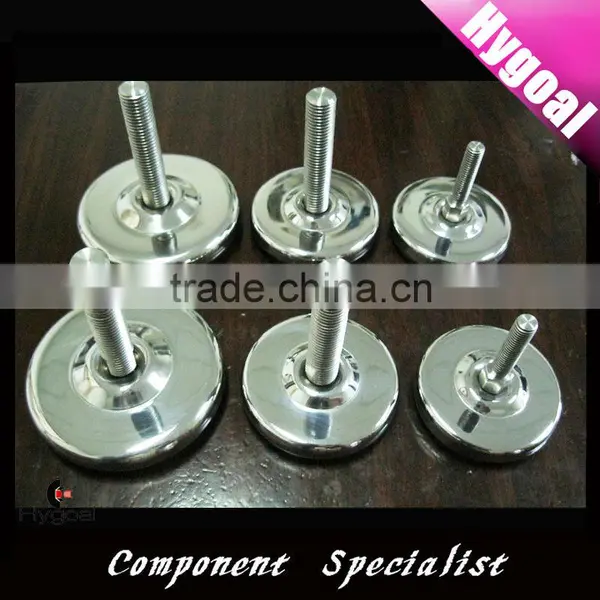

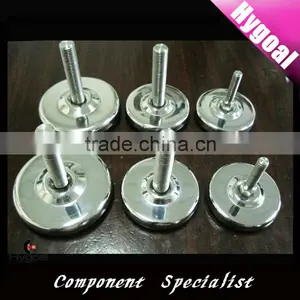

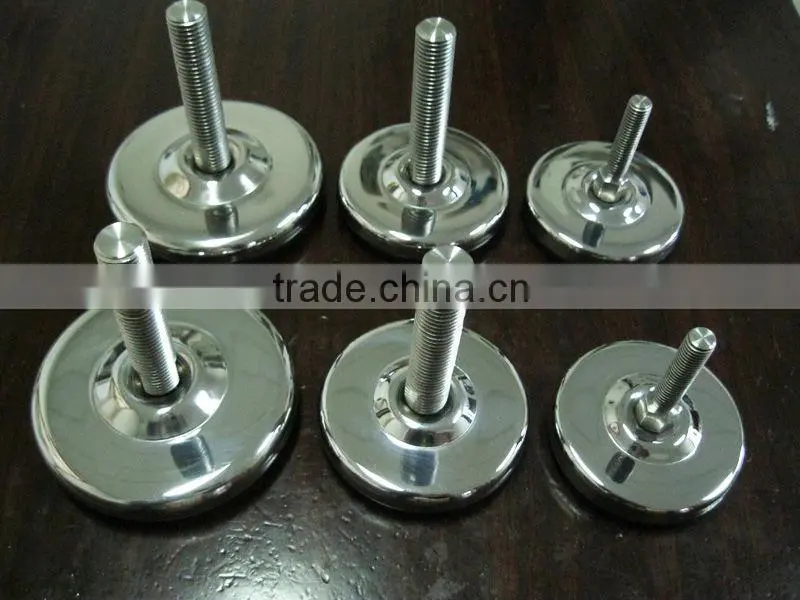

Superior Quality Adjustable Feet HG-L-0062
- 10000 Piece / Pieces per Month
- NINGBO SHANGHAI
- T/T Credit Card
Product Details
Material: | Metal | Metal Type: | Stainless Steel | Use: | Other, Used on the bottom of furniture leg, like chair, desk |
Place of Origin: | Zhejiang, China | Brand Name: | HYGOAL | Model Number: | HG-L-0062 |
Product Description
Specifications
45# steel or stainless steel for boltHeavy duty Adjustable Feet
Punched base with chrome plated
Anti-slip Adjustable Feet
Adjustable feet, leveling feet, furniture feet, machine feet, adjustable furniture feet, adjustable feet for furniture HG-L-0062 :
The leveling feet 1400 series is specially designed for heavier load applications such as lathe and CNC. The maximum load can be up to about 3000kg. It has a anti-slip rubber disk which provides excellent stability and grip. This type is specially designed for machine feet, furniture legs and some apparatus which have to be used in unsmooth floor and have to endure heavy duty.
lThe thread size is from M16 to M24 and the length of thread can be customized to order.The diameter of the base is from Φ50mm to Φ100mm.
lThe levelling feet 1400 series has a ball joint so it allows the bolt swivel up to about 12° in any directions.
lThe thread size l1 can be tailor-made according to your special requirements
lAnti-slip rubber underlay
lStainless steel base+stainless steel bolt Chrome plated steel base+zinc plated steel bolt
lMaterial for base: Steel with chrome plated or Stainless steel 304
Part number explanation:
Custom Manufacturing:
Except these standard productsWe also supply customized sulotions or OEM according to your sample or drawings.
Hygoal Components manufactures a diverse range of custom plastic and metal products at extremely competitive costs - all from our facilities in Ningbo, China. Our teams have over a decade of manufacturing and supply chain management experience. From design concept, to sample creation, mass production and shipping. And we ensure your product arrives on spec, on time and on budget.
With the technical capability to rival all manufacturing facilities. We have the knowledge, experience and manufacturing capabilities to meet all of your requirement in customized solutions . For details of Hygoal's manufacturing procedure, please see our custom manufacturing overview page or contact with us.
Hygoal's Custom Manufacturing procedure:
| Submit a technical drawing or post a sample » Use our enquiry form to send us a technical drawing of your product along with a description and the estimated quantity you require. If you do not have a technical drawing in most cases we can also reverse engineer from a sample. | |
| 48hr quote from Hygoal sales team » We leverage the very latest technology and communications tools to unite our global teams. We understand the importance of fluid and responsive interactions between all aspects of the manufacturing process, from factory and quality control to shipping and distribution. Submit a technical drawing today and we'll quote in just 48 hours. | |
| High quality rapid tooling » Upon quote approval and receipt of your deposit payment, we begin fabrication of your tooling. When only a small number of parts are required, tooling can represent a large proportion of initial cost, but we are confident that our tooling costs will not be beaten. When a greater quantity of parts are produced the relative cost of tooling shrinks dramatically. | |
| Samples to your door in 35 - 40 days » The next step sees the first samples off the production line, and delivery to your door - but not before they've passed our meticulous quality control checks. We pride ourselves on getting the job done right the first time; we've worked successfully with countless companies whom require a manufacturing partner capable of keeping to close tolerances throughout production. If adjustments do need to be made, we'll perform them quickly and efficiently. | |
| Mass production in 4 weeks from sample approval » With injection moulding and die casting machines from 15 tonnes up to 3000 tonnes, you can be sure that we're ready for mass production. Our engineers are fastidious in their attention to detail; its imperative for both customer and manufacturer that the goods are on spec; you won't accept second rate products - we won't produce them. | |
| Packaged, labelled and shipped to your door in 10 weeks from sample approval » We understand our customers require much more than just first rate products, they need them securely packed and shipped to their destination on time. Our supply chain has been in successfull operation for over a decade, we'll even manage and monitor all customs, handling fees and insurance. | |
