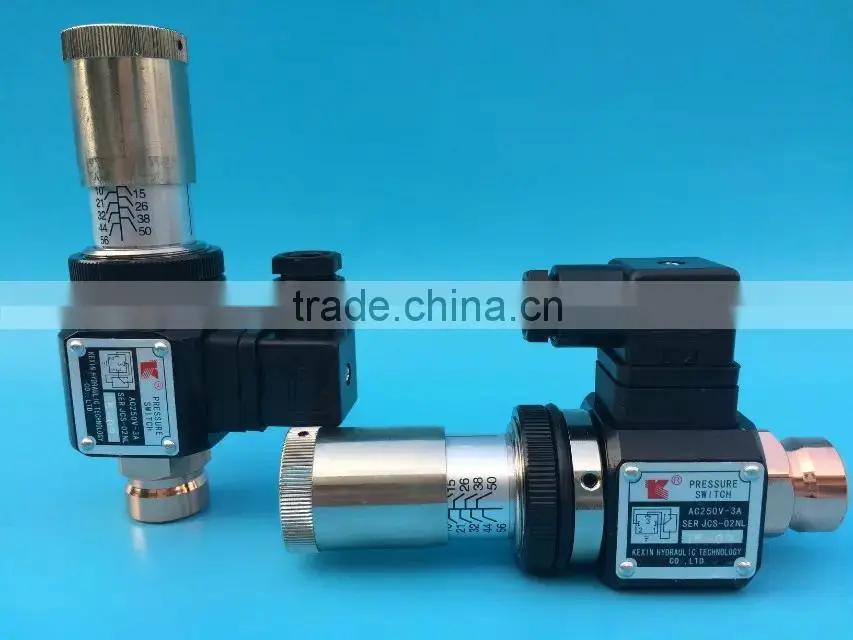

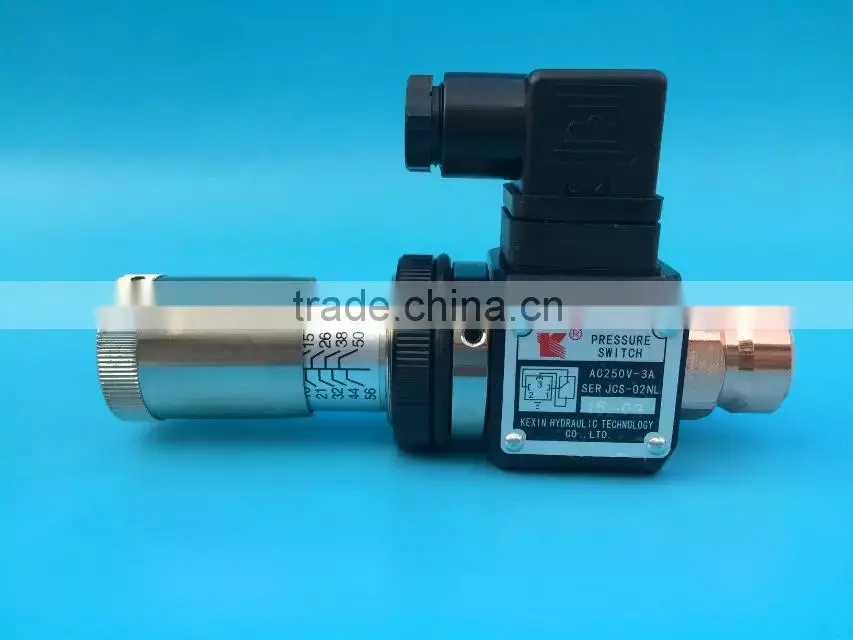

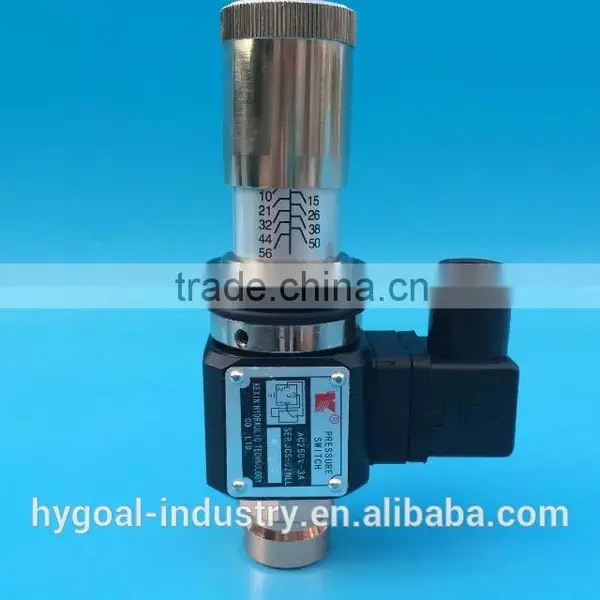

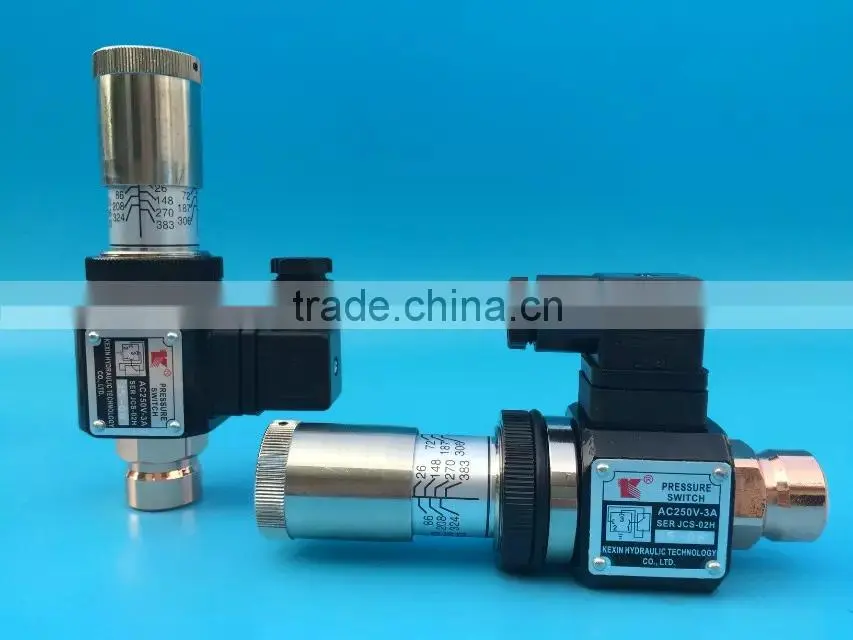

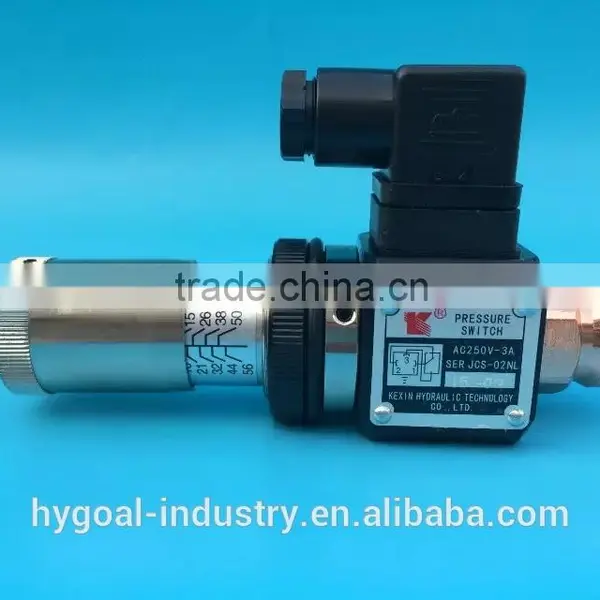

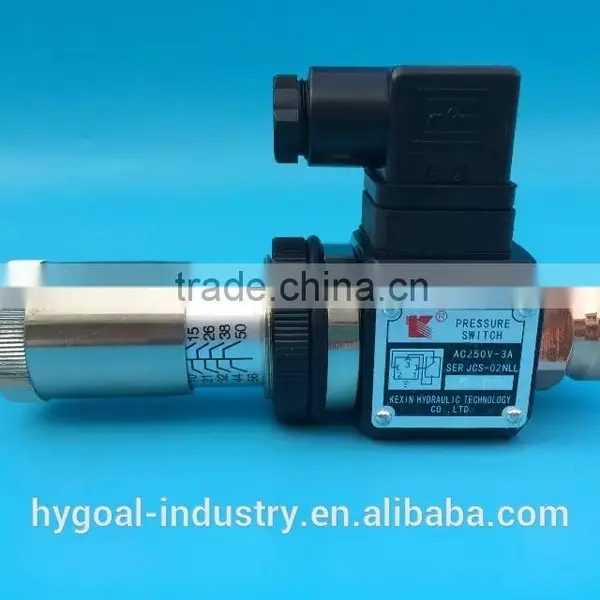

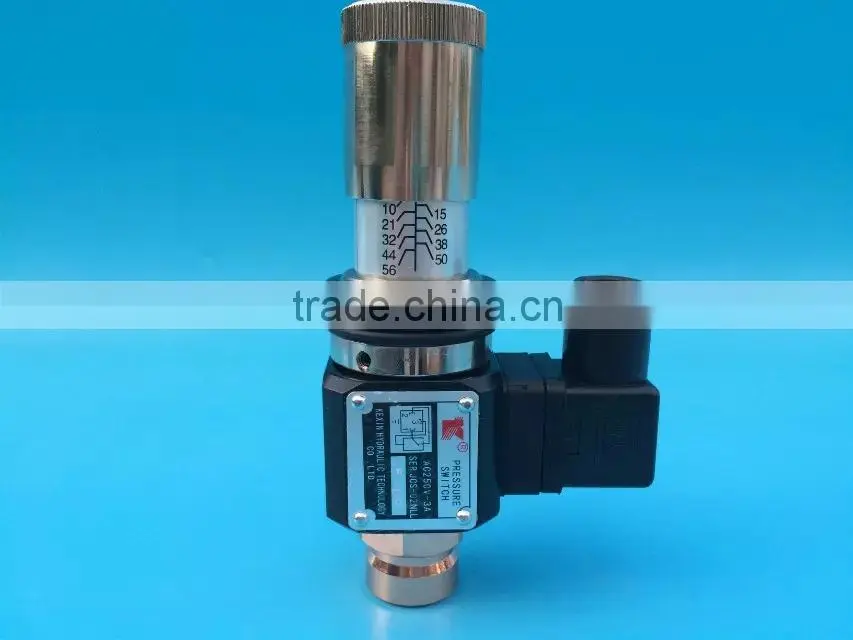

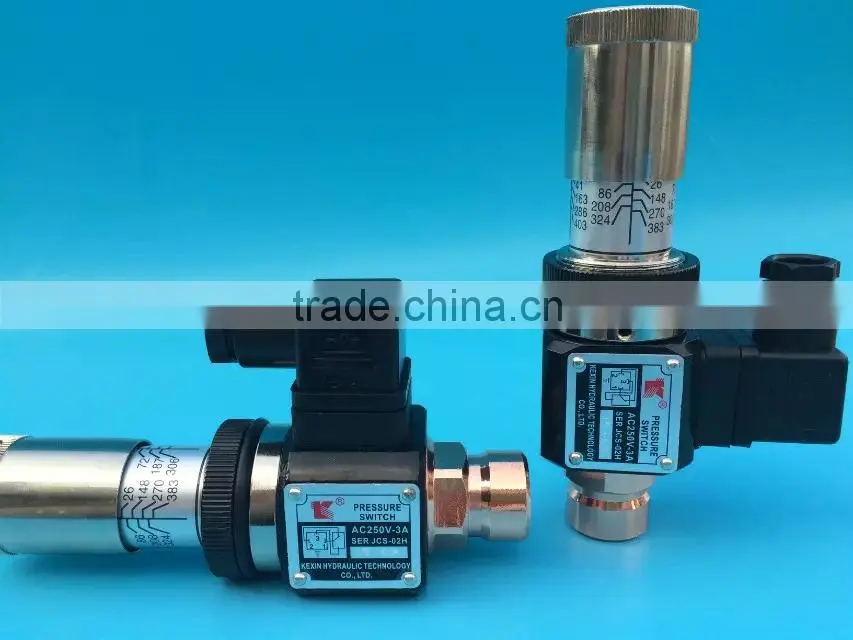

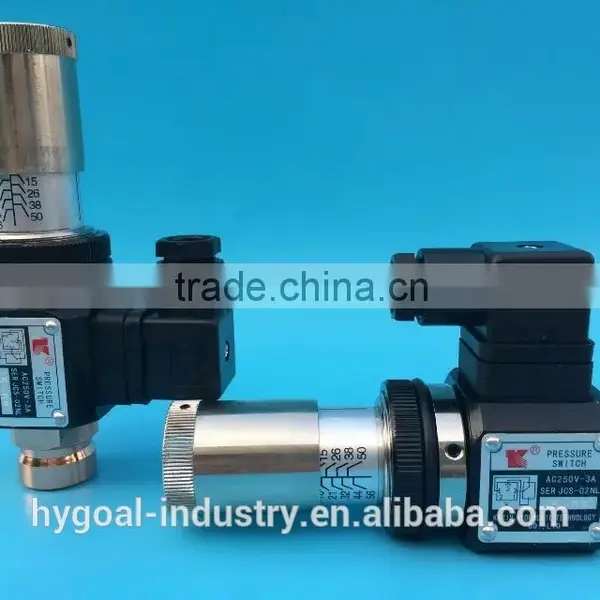

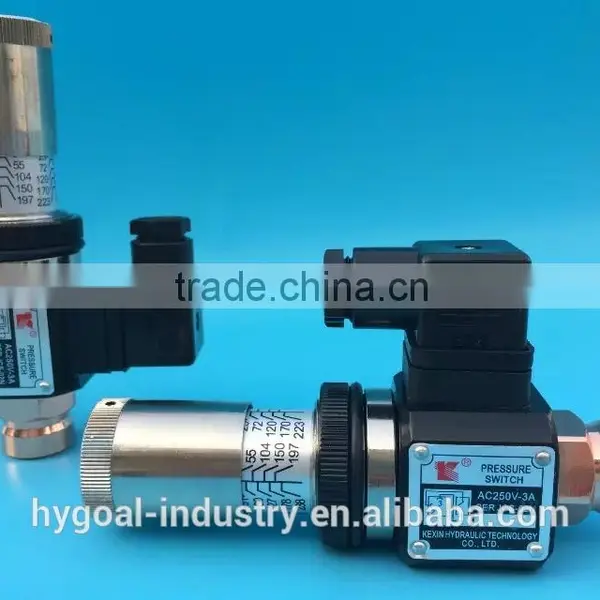

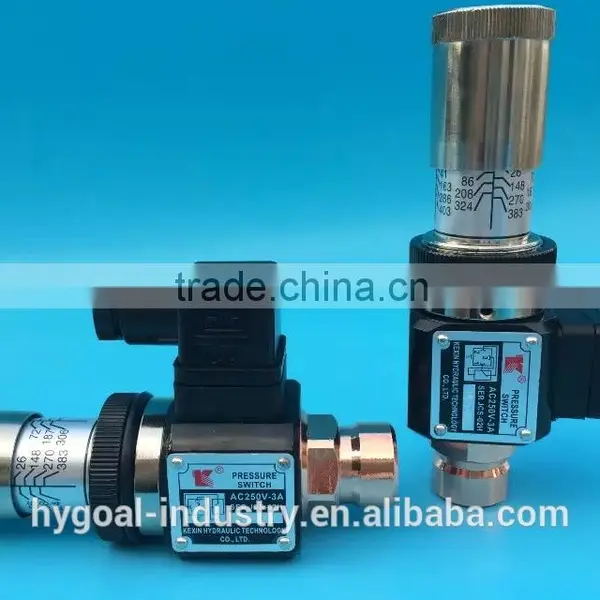

Hydraulic Pressure Switch Press Reply
US$ 18 - 25
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pneumatic Electromagnetic ValveUS$ 3.5 - 6MOQ: 10 Sets -
Foot ValveUS$ 4 - 15MOQ: 1 Piece
-
Hydraulic Flow Control Valve Hydraulic Directional Control Valve Flow Speed Control ValveUS$ 40 - 80MOQ: 10 Pieces
-
Double Hydraulic Pump/hydraulic Gear Pump,pump China FactoryUS$ 2 - 50MOQ: 50 Sets
-
Double Gear PumpUS$ 2 - 50MOQ: 50 Sets
Standard or Nonstandard
Standard
Structure
Check
Pressure
Medium Pressure
Power
Hydraulic
Material
Casting
Temperature of Media
Low Temperature
Media
Oil
Port Size
Control
Place of Origin
Zhejiang, China
Model Number
JCS-02NLL
Brand Name
KEXIN
Application
General
Electrohydraulic Pressure Switches are high performance devices that provide an electrical signal when sensed pressure rises above or falls below the selected setting.
The pressure switch is built-in microswitch, which interacts the pressure from the hydraulic system and delivers the electric signal to the solenoid directional valve or electromotor and make them change the direction, or warning ,even turn off the circuit, so as to make the system protection become true.
| Model | Pressure rate | Max pressure | Weight |
| JCS-02H | 50-350 kg/cm2 | 410 kg/cm2 | 1.0 Kg |
| JCS-02N | 30-210 kg/cm2 | 210 kg/cm2 | 1.0 Kg |
| JCS-02NL | 15-60 kg/cm2 | 70 kg/cm2 | 1.0 Kg |
| JCS-02NLL | 5-60 kg/cm2 | 70 kg/cm2 | 1.0 Kg |
| JCS-02S | 4-26 kg/cm2 | 70 kg/cm2 | 1.0 Kg |
| JCS-02N-1 | 30-210 kg/cm2 | 210 kg/cm2 | 1.0 Kg |
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2011
Factory Size
Below 1,000 square meters
Total Employees
101 - 200 People
