Application:

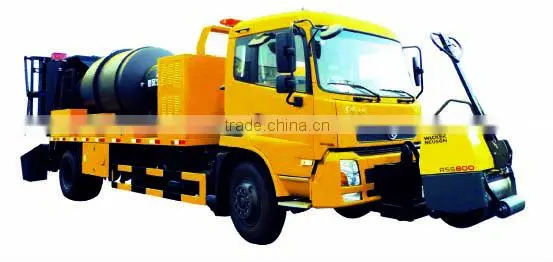

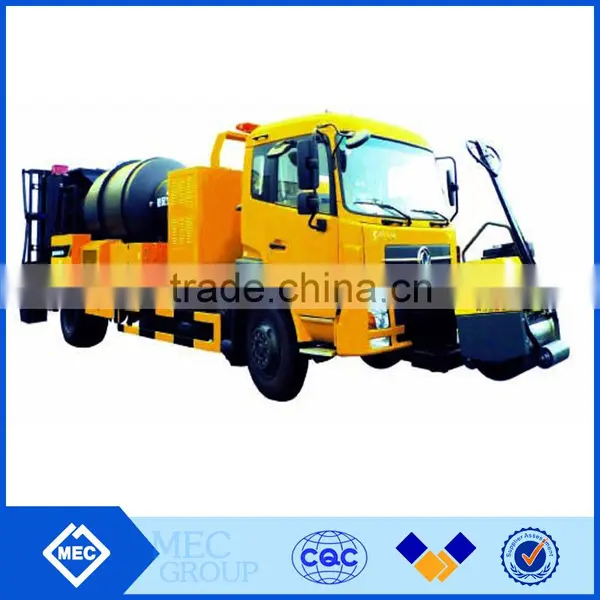

AD5160TYHRQ pavement patcher is multifunctional and high efficient road maintenance equipment which is widely used for repairing asphalt road pit and cracks and other road surface damage. The equipment is effective for heating road surface and recycling used asphalt, it also can heat asphalt, emulsified asphalt and spraying them, paving and hydraulic power output.
Structural features:
- Driver direction: left or right.
- Hot air circulation heating technology, energy saving and environmental protection.
- Rotary recycling silo, fast recycling speed with good quality recycled material.
- Harrowing device is equipped in pavement heater, which guarantees sufficient heating depth, and good repair effect, various asphalt pavement can be heated.
- Driving and heating simultaneously.
- Being equipped with modified bitumen heating and spraying system.
- Being equipped with multi-function of repairing and recycling, being equipped with hydraulic output interface.
- Being quipped with hydrostatic drive vibratory roller.
Main technical specification:
Chassis |
Feeding |
Hot asphalt box |
Heating unit |
|
model:DFL5160XXYBX1A (EURO IV) |
Auto-mechanic feeding |
volume:650L |
heater size:1.8X2.4m |
Single feeding capacity: 250kg |
heated by hot oil |
Translation stroke:400mm |
|
Engine power:155kw |
pump spraying |
Lift stroke:285mm |
|
Recycling drum |
Modified asphalt |
Waste tank |
Heating area:2 |
recycling capacity of mixed material:6000kg/h |
volume:150L |
0.3m3 |
Heating by hot air circulation |
sprayed by air compressor |
Vibratory roller |
|
|
Heating by hot air circulation |
|
15KN |
|
