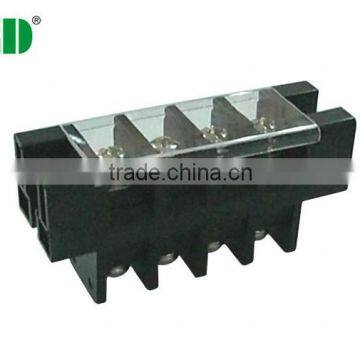

Perforation Terminal Blocks
Negotiable
/ Piece
500 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Yantian
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SCED | |
| Model Number | TD180-01-C |
Product Description
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 180 | 300 / 180 | 300 / 10 |
Wire Range AWG | 20-1/0 | 20-1/0 | 4-20 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 630 / 180 | 800 / 180 | 1000 / 180 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 8 | ||
Material |
| ||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Conduction Board / Plating | Copper / Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 14-18 | ||
Screw / Torque / lbf.in | M6 / 20-22 | ||
- Stable good quality
- Competitive price
- Quick response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
