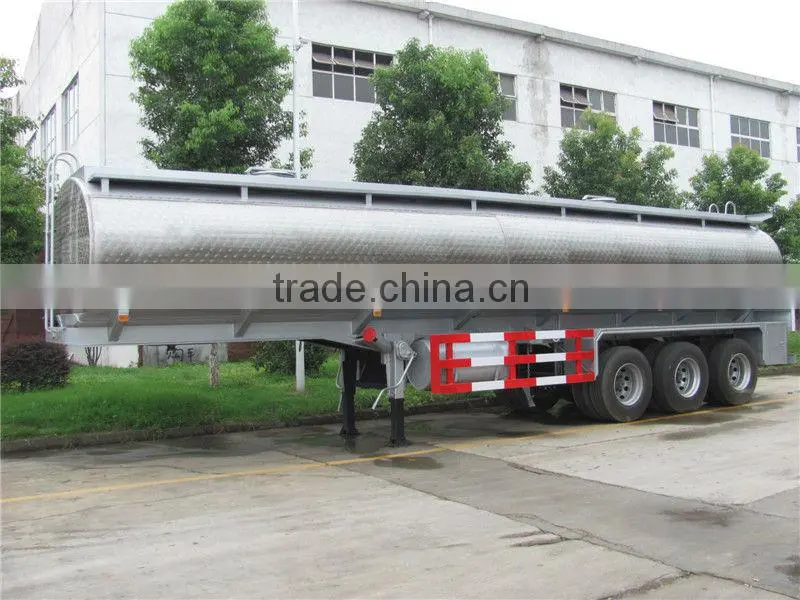

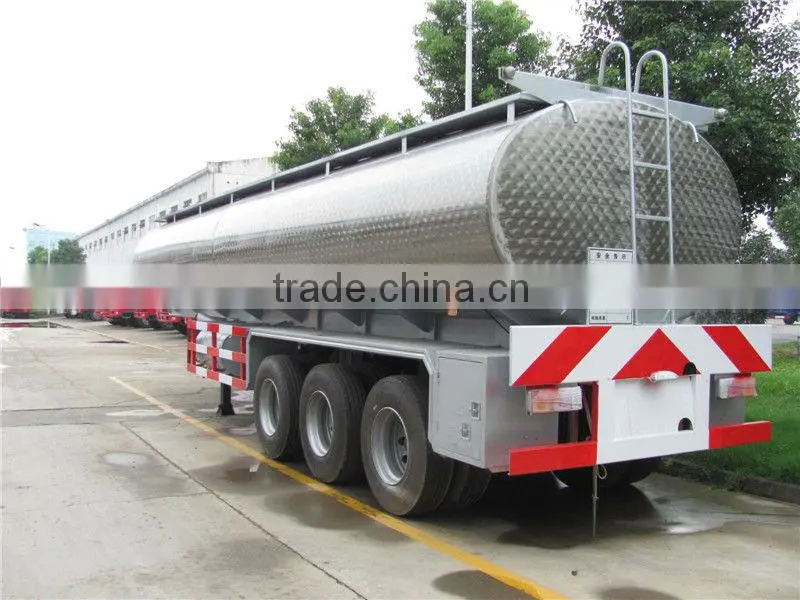

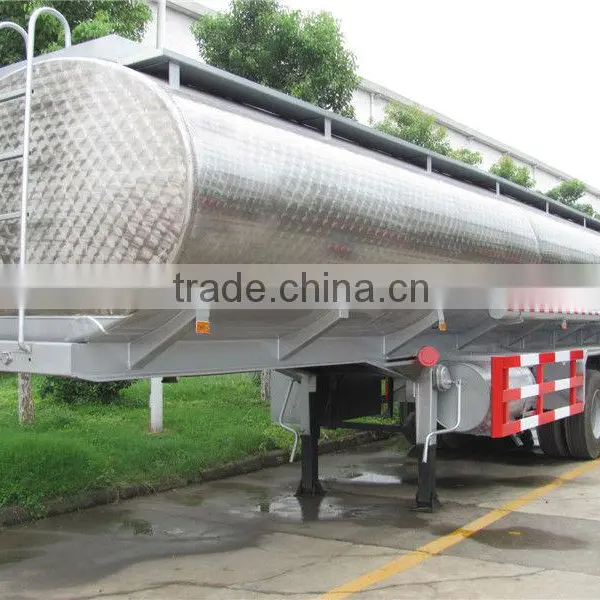

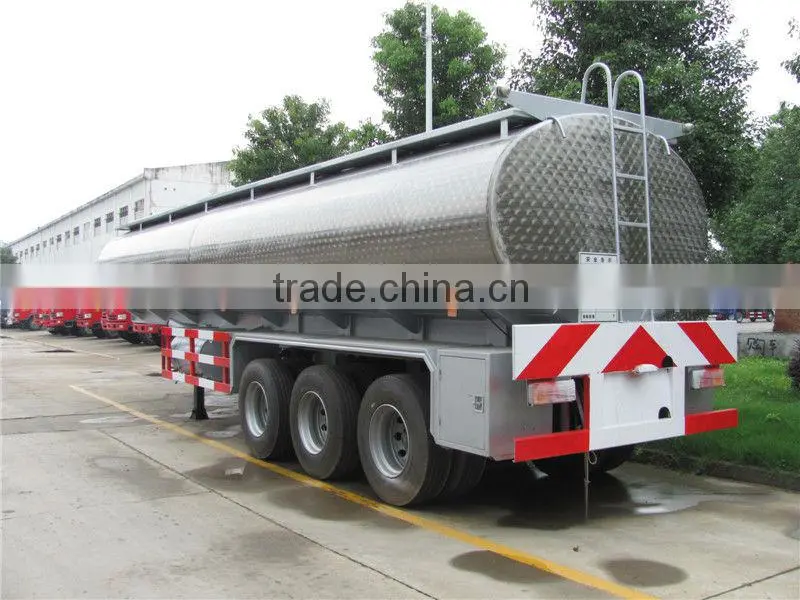

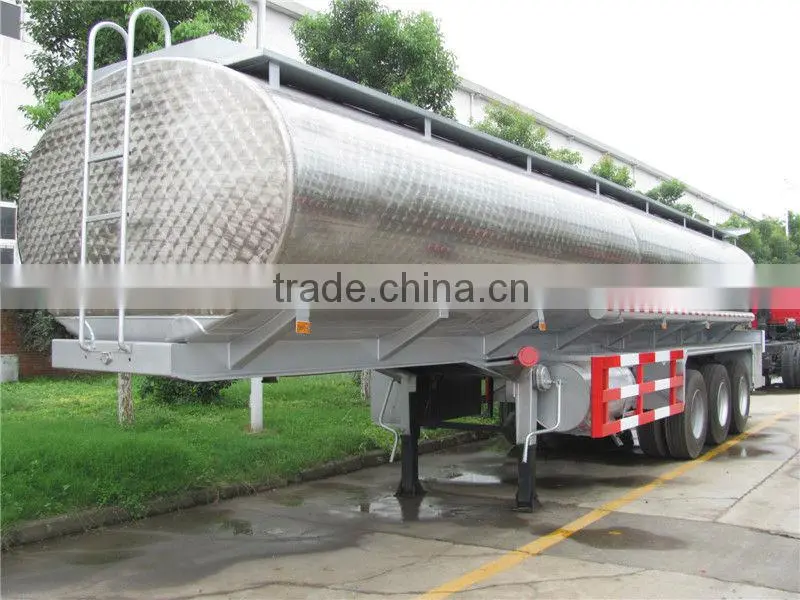

3 axles crude oil tanker trailer

Specifications

3 axles crude oil tanker trailer
double tire, total 12pcs
3 compartments
3x13ton BP axles
ccc & iso9001:2008 certificate

3 axles crude oil tanker trailer



This fuel tanker semi trailer, also known as oil tank trailer, is mainly used for transporting bulk liquid goods, such as diesel oil, gasoline, and sulfuric acid. It is widely used in chemical industry, metallurgy field, environmental protection field, brewing industry, food field, pharmacy, storage and transportation field, and more.
Its tanker body can be made of stainless steel 202, 304, or 316L, carbon steel, PVC, glass fiber reinforced plastics, aluminum, and more.
The fuel tanker semi trailer is mainly composed of chassis, tank assembly, unloading piping system, and safety device.
Beside fuel tanker semi trailer, we also supply water tanker semi trailer, vacuum tanker semi trailer, cement tanker semi trailer. , low bed semi trailer , flatbed semi trailer, skeleton semi trailer with type of 20ft , 40ft..............



Image show:











Vehicle name			3 axles crude oil tanker trailer
Model			JDF9410GYY
Transport material			crude oil, edible oil, pertrol
Wheel base			6000+1320+1320 mm
Overall dimension (L*W*H)			12000×2500×3700  mm
Weight		GVW	40000 kg
		Curb weight	7000 kg
		Payload weight	33000 kg
Axle number			3 axles. 3*13 ton Fuwa axle
Tire type			425/65R22.5
Tire number			12 pcs
Leaf spring number			-/8/8/8
Tanker load volume			50000 Liter
Tanker material			Carbon steel or Stainless steel or Aluminum
Compartment			according to customer require
