F15+ Speaker Features:
♣ A 15" 2-way passive stage speaker, 450-900watts, with one 15" LF Neodymium LF and one 3" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental protective black painting, newest humanzied design, simple and esay for rigging.
♣ Widely used in stage performance, meeting room, theater, clubs, discos ect.
F15+ Speaker specifcations:
The high power F15+ is a high performance, wide-bandwidth system in an incredibly compact and efficient package. Extended frequency response is provided by a 15" (380mm) LF driver teamed with a 1.4"(38mm) exit compression driver mounted on a rotatable 80°×50° constant directivity HF horn. The F15+ is perfect for higher power applications where ease of installation or speed of deployment are important factors.
| Rated Power | 400W RMS |
| Music Peak | 1600W |
| Frequency Response(a) | 55Hz-18kHz±3 dB |
| Vertical Dispersion angle(v) | 80°±3 dB |
| Horizontal Dispersion angle(h) | 50°±3 dB |
| Drivers | 15"(380mm) bass driver, Voice coil HF driver size 3" |
| Nominal Impedance(ohm) | 8ohm |
| Sensitivity:1W@1m(b) | 99dB/w/m |
| Max SPL@ m | 129dB/w/m |
| Connectors | 2×NL4FC speakon |

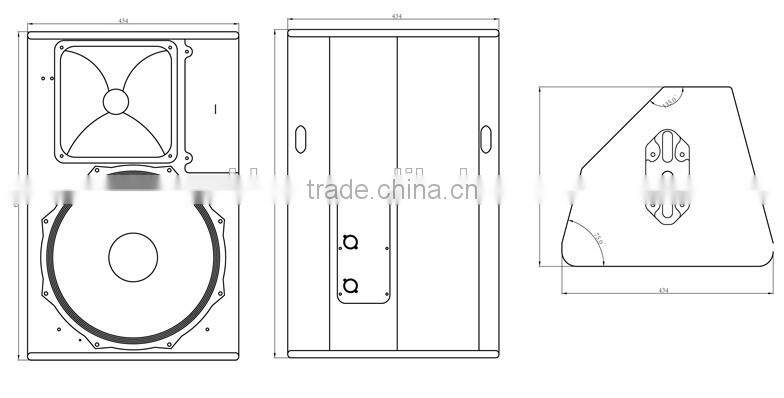

| Dimensions(w×h×d) | 470×692×443(mm) |
| Net weight | 31KG |
Our Services:
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.

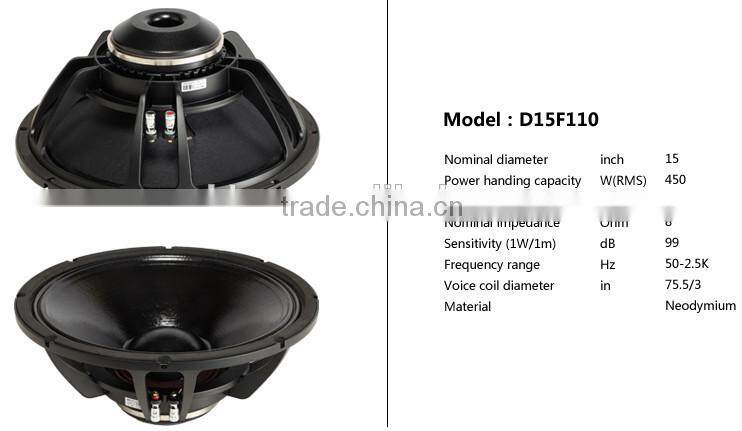

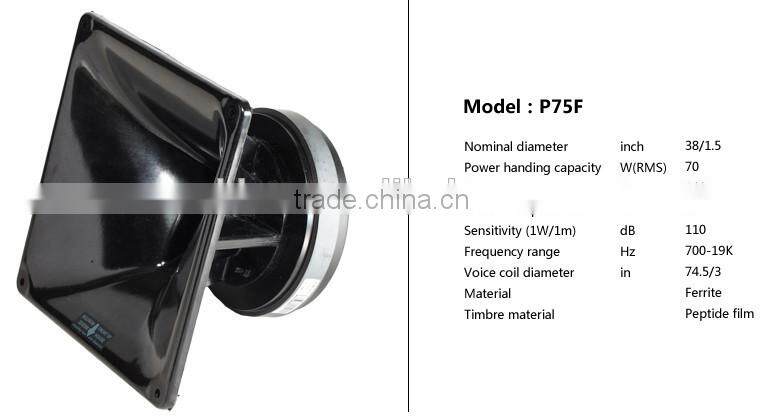

F15+ Speaker driver configurations:
