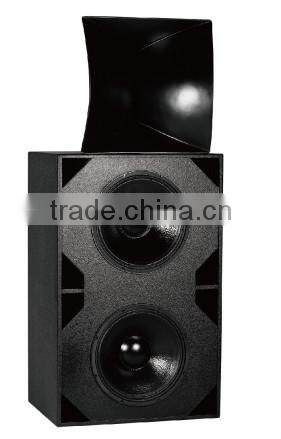

Help CenterCH-1525, Trade Assurance, Double 15 Inch Passive Cinema Loudspeaker, Professional Speaker
Related Products
-
CH1825, Trade Assurance, Dual 18 Inch Passive Cinema Loudspeaker, Pro AudioNegotiableMOQ: 10 Pieces -
CH-2218SB, Trade Assurance, Dual 18 Inch Subwoofer for Cinema Loudspeaker, Speakers SubwooferUS$ 429 - 459MOQ: 4 Pieces
-
Trade Assurance, 8 Inch Passive Coaxial Loudspeaker, Coaxial Stage MonitorsUS$ 159 - 189MOQ: 10 Pieces
-
Trade Assurance, 10 Inch Passive Coaxial Loudspeaker, Professional SpeakerUS$ 209 - 239MOQ: 10 Pieces
-
Trade Assurance , 12 Inch Passive Coaxial Loudspeaker, Professional SpeakerUS$ 275 - 299MOQ: 10 Pieces
[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:
CH-1525 loudspeaker features:
CH series cinema theater CH-1525 high performance, two-way bi-amp screen system
For rooms up to 300 seats.
For medium and large cinemas.
Distance to farthest srat: ≤25m.
Two-way passive design, high SPL, Low Distortion, 90°x50° dispersion.
CH-1525 loudspeaker specifications:
| TYPE | Compact, two-way passive |
| FREQUENCY | 40Hz-18kHz±3dB
30Hz-18kHz±10dB
|
| DRIVERS | LF: 2x15″(390mm)/ 4"(100mm) voice coil LF driver, Ferrite HF: Voice coil HF driver size 4″(100mm), Neodymium |
| RATED POWER | LF:1000W AES, 2000W peak HF:180W AES, 360W peak |
| SENSITIVITY | LF:96dB/w/m, HF: 110dB/w/m |
| MAXIMUM SPL | 125dB continuous, 131dB peak |
| NOMINAL IMPEDANCE | LF:4 ohms , HF: 8 ohms |
| CONNECTORS | Screwterminals |
| FITTINGS | simple to install |
| Dimension | Low: (W)762mm×(H)910mm×(D)516mm, HF: (W)600×(D)600×(H)650mm |
| WEIGHT | 80KG+18kg |

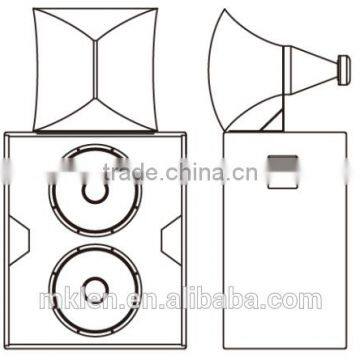

CH1525 loudspeaker box design:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service Alibaba Trade Assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
