CNC Condenser Bender Coil Bender Machine

CNC Condenser Bender Coil Bender Machine thumbnail-1
CNC Condenser Bender Coil Bender Machine thumbnail-2

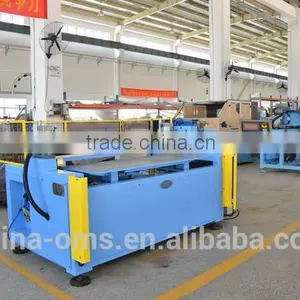

CNC Condenser Bender Coil Bender Machine thumbnail-3
CNC Condenser Bender Coil Bender Machine photo-1

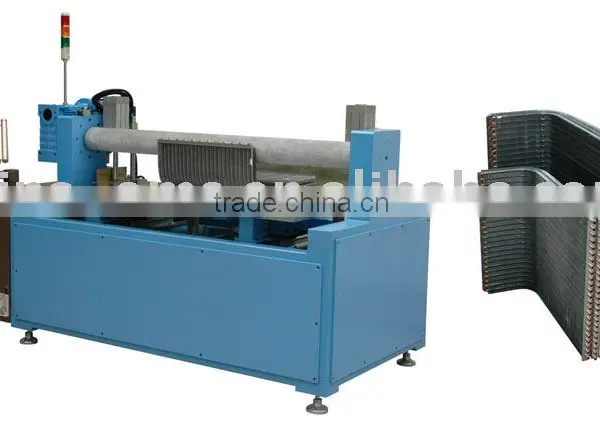

CNC Condenser Bender Coil Bender Machine photo-2

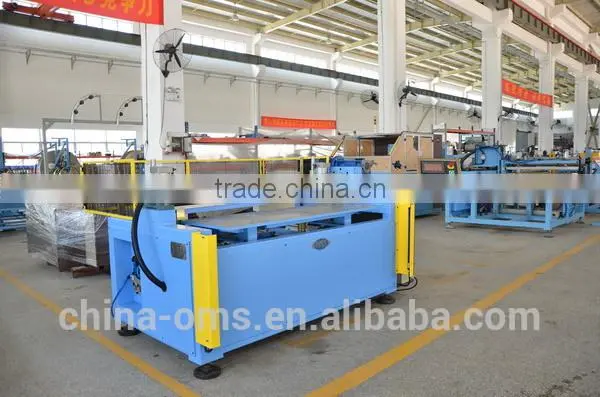

CNC Condenser Bender Coil Bender Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
OMS
Contact Supplier Request Quote Chat Now
OMS Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name OMS
Model Number CDBM-1500/1F
Machine Type Other, bending machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Other, copper-fin condenser
Power Cnc
Automation Automatic
Extra Services Welding / Brazing
Certification ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas

Condenser Bender



Use: used to bend condensers at an angle and make them change "L" shape or "U" shape
to fulfill overall design in air conditioner and the requirement of product
technique



Features:

1) Three axes CNC, accurate location and smooth bend

2) High degree of automation and convenient adjustment

3) The fins do not fall easily



Specifications:

1) Wall thickness of coil: 22mm / layer, max. three layers, numerical setting

2) Bending radii: R69 (1-3 layers), can be made to order

3) Bending angle: 0-110°, numerical setting

4) Precision bend ±0.1°, platform up and down±0.1 mm, locating±0.1mm

5) Locating length of coil 400mm-1,000mm pre-location

6) Control mode: jog, manual, auto

7) Max. width of coil: 900mm/1,200mm/1,500mm

8) Max. length of coil: 2,500mm

9) Short edge length of bend: a) The first layer: ≥60mm b) The second layer: ≥80mm c) The third: ≥110mm

10) Clamping travel of coil: 150mm

11) Travel of platform up and down: 0-120mm

12) Cycle of auto working: 12-15s

13) Air pressure range: 0.3-0.5MPa

14) Power supply: three-phase, four-wire, AC 415V 50Hz

15) Total power: 4.5kW

16) Gross weight: 1,600kg

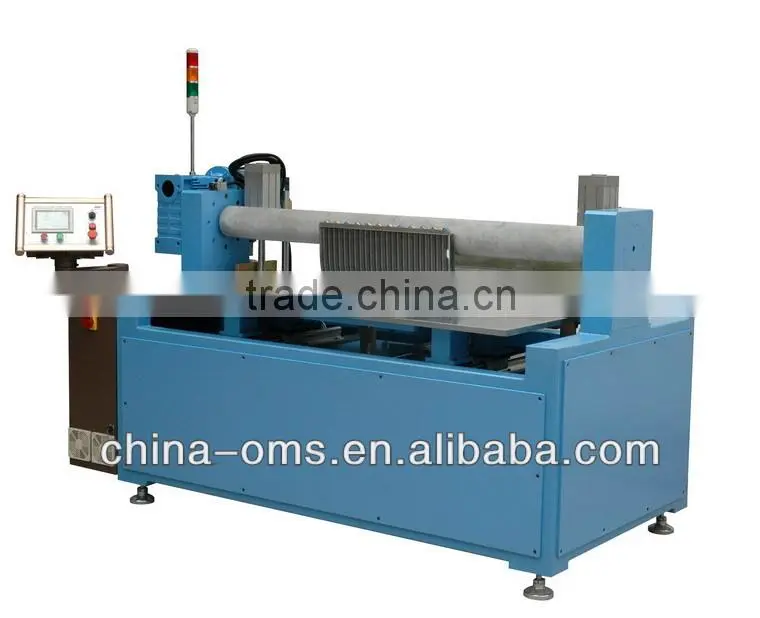

CNC Condenser Bender coil bender machine
