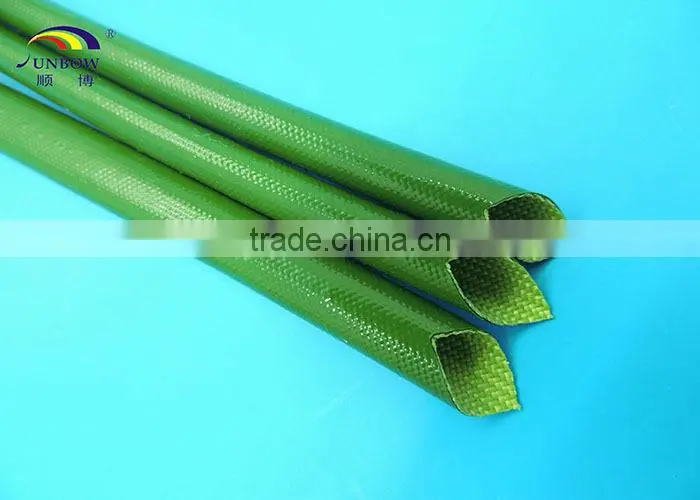

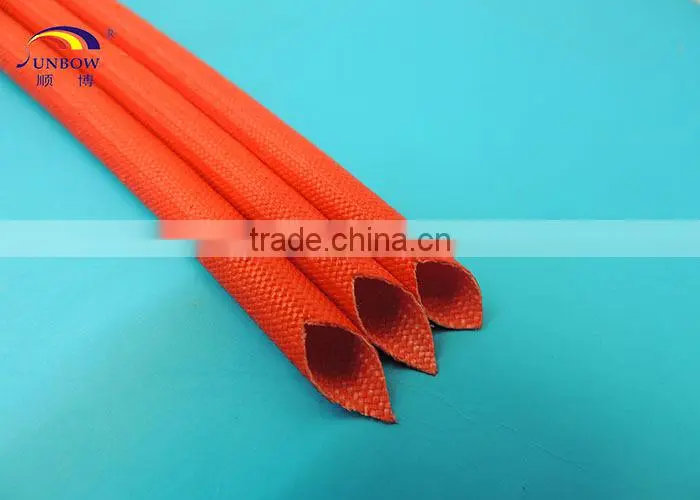

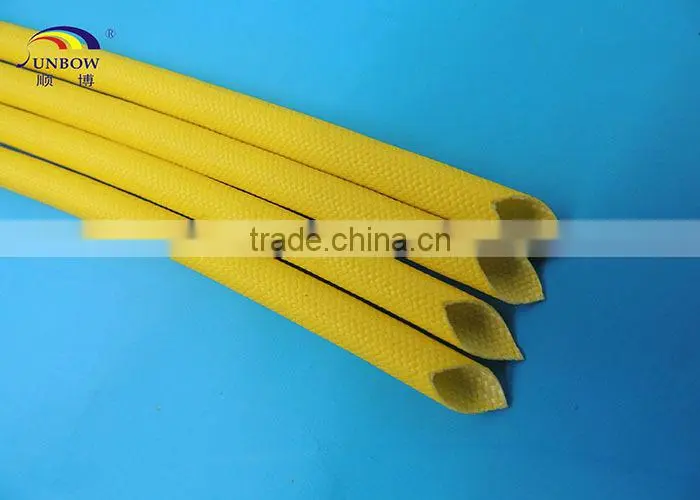

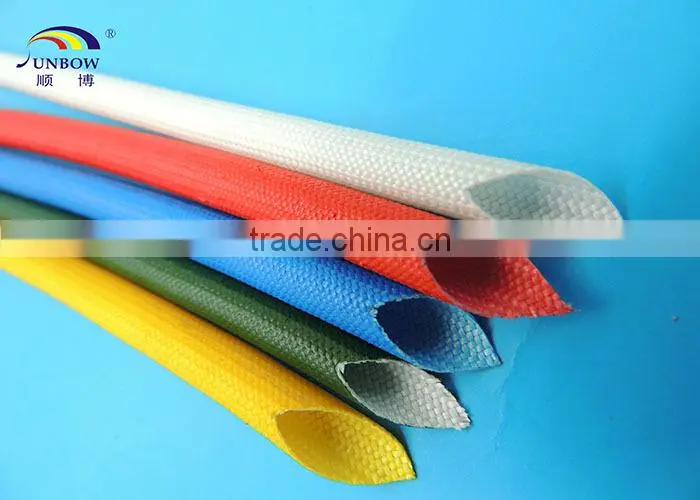

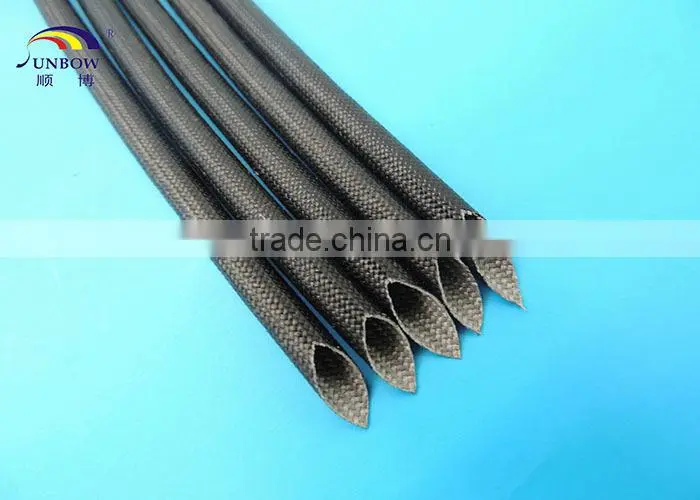

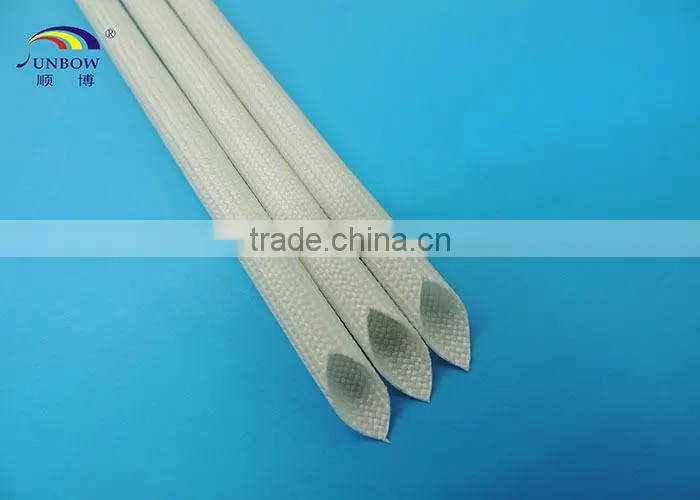

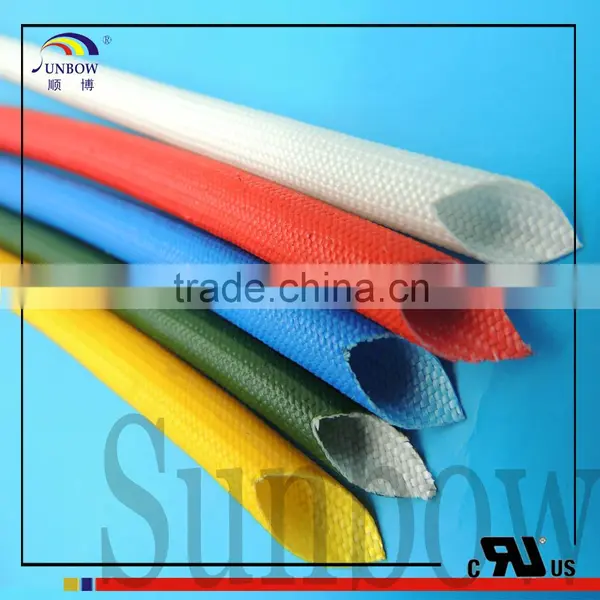

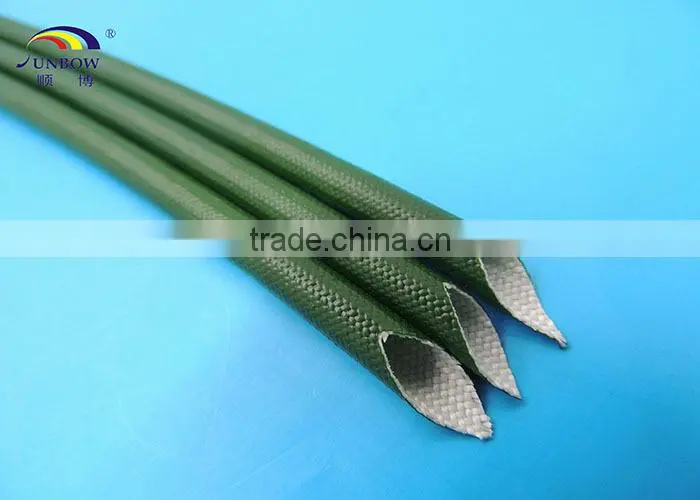

Lighting Industry Lanterns/LED Lamps Use 1.2KV Wire Harness Fiberglass Sleeving
1. Model
SB-SGS-12
2. Working Temperature
200C
3. Structure
Lighting Industry Lanterns/LED Lamps Use 1.2KV Wire Harness Fiberglass Sleeving is braided with non-alkali fiberglass and then coated by silicone resin processed in high temperature.
4. Characteristics
1) working temperature: 200C
2) breakdown voltage: 1200V
3) thermal endurance: no crack (245±5C 6hrs aging)
4) fire resistance: VW-1 UL1441
5) certifications: CUL, REACH, RoHS, SGS, MSDS, CQC
5. Dimension
INSIDE DIAMETER |
WALL THICKNESS (mm) |
STANDARD PACKAGE (m/roll) |
|
NOMINAL(mm) |
TOLERANCE(mm) |
||
φ0.5 |
+0.2, -0.1 |
≥0.27 |
200 |
φ1.0 |
+0.2, -0.1 |
≥0.27 |
200 |
φ1.5 |
+0.2, -0.1 |
≥0.27 |
200 |
φ2.0 |
+0.2, -0.1 |
≥0.27 |
200 |
φ2.5 |
+0.3, -0.1 |
≥0.32 |
200 |
φ3.0 |
+0.3, -0.1 |
≥0.32 |
200 |
φ4.0 |
+0.3, -0.1 |
≥0.37 |
200 |
φ4.5 |
+0.3, -0.1 |
≥0.37 |
100 |
φ5.0 |
+0.3, -0.1 |
≥0.37 |
100 |
φ6.0 |
+0.3, -0.1 |
≥0.37 |
100 |
φ7.0 |
+0.3, -0.1 |
≥0.42 |
100 |
φ8.0 |
+0.3, -0.1 |
≥0.42 |
100 |
φ9.0 |
+0.3, -0.1 |
≥0.52 |
100 |
φ10.0 |
+0.3, -0.1 |
≥0.52 |
100 |
φ12.0 |
+1.0, -1.0 |
≥0.52 |
50 |
φ14.0 |
+1.0, -1.0 |
≥0.52 |
50 |
φ16.0 |
+1.0, -1.0 |
≥0.52 |
50 |
φ18.0 |
+1.0, -1.0 |
≥0.52 |
50 |
φ20.0 |
+1.0, -1.0 |
≥0.62 |
25 |
φ25.0 |
+1.0, -1.0 |
≥0.62 |
25 |
φ30.0 |
+1.0, -1.0 |
≥0.62 |
25 |
6. Application
Lighting Industry Lanterns/LED Lamps Use 1.2KV Wire Harness Fiberglass Sleeving has good insulation dielectric strength, flexibility and resistance property. It can be widely used in insulated, uninsulated and partially insulated conductors, bus bars, leads and electrical components.
