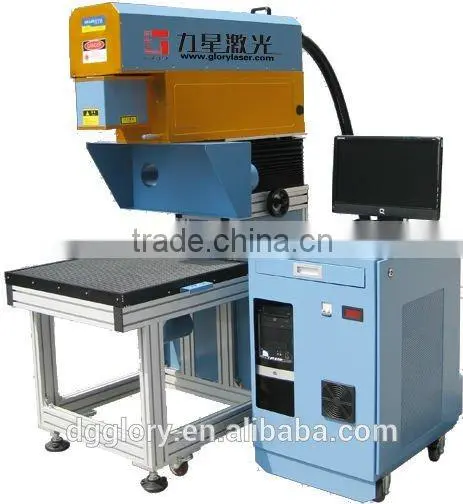

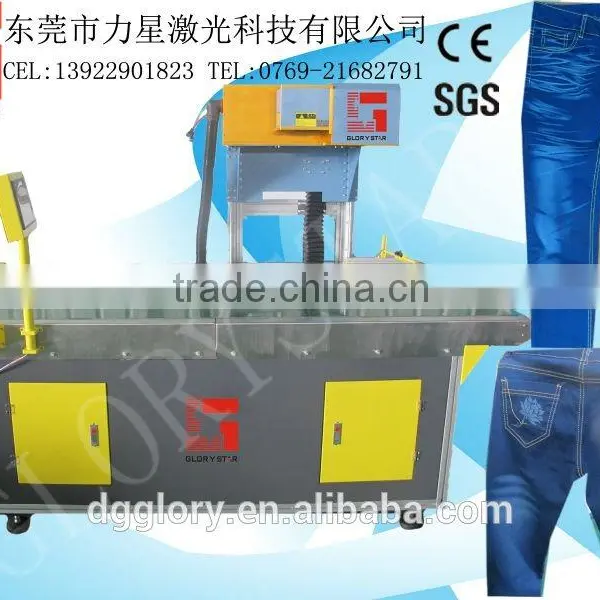

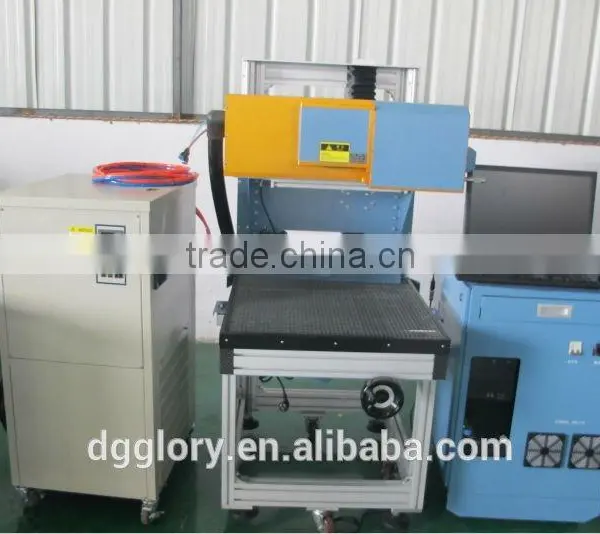

3D dynamic focus galvo co2 laser marking machine laser marking system galvo meter marking machine
Brief introduction:
According to the demand of domestic and international markets, Glorystar R&D team well designs and develops this model for various industries, it adpots orginal imported RF laser generator from USA and Germany to ensure the high marking speed, precise beam quality, stable output performance and long lifetime. under our professional software control circumstance, the combination of USA digit scanner head and 3D dynamic focal system can make the full advantage use of laser application,
1. Stable laser output, excellent laser quality, fast marking speed and nice marking effect.
2. Attractive design, compact design, easy operation, no consumptive parts, and low running cost.
Equipment feature:
1. The marking speed is 2 or 3 times faster compare to traditional marker.
2. Beam quality is much better than the traditional marker. It’s particularly suitable for precise marking.
3. Electro-optical conversion is more efficient, power consumption is very low, only about 500W.
4. The laser source has longer lifetime.
5. The software supports PLT, AI, DXF, BMP and other files. laser marking system
Optical Design
it adopts the whole-sealed laser optical system, free maintance without adjustment, therefore , it can be put into use once it is fixed
Mechanical Design
the 3 axis laser scanning system have compact structure, dust-proof , easy and accurate assembly , strong anti-jamming, features, it has been taken into full consideration to radiate the heat from the scanning motor and driver board in its design , which ensures the stability of system under the condition of long-time running,

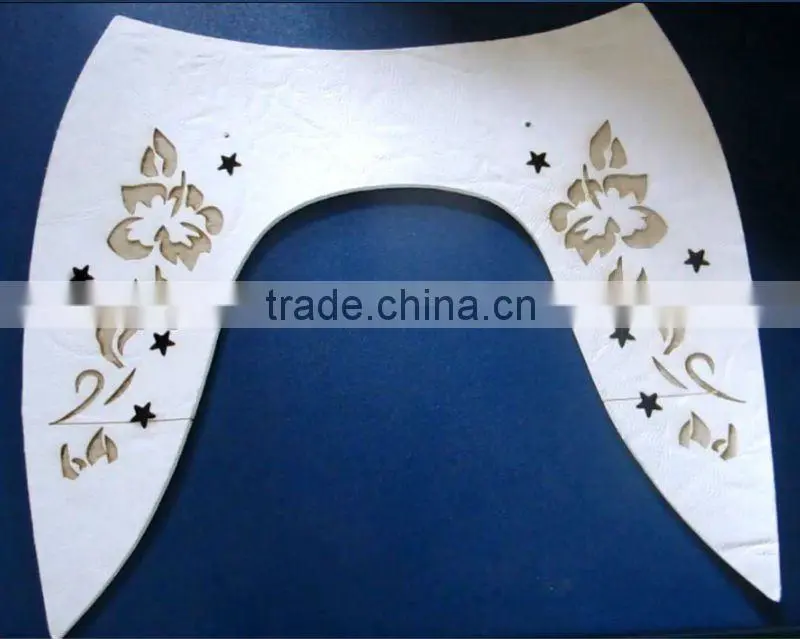

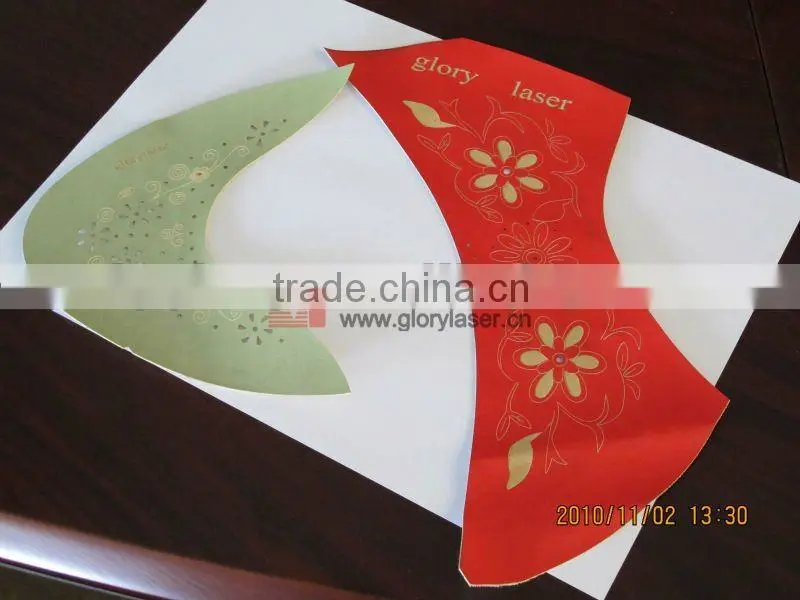

footware, apparel, arts&crafts, bamboo and wooden products, advertisement decoration. packing, furniture, architectural model and so on
leather, rubber, wood, bamboo, organic glass, ceramic tile, jade, crystal, fabric and other no-metal materials.
|
Laser power:
|
100W/150W/2750W |
|
Laser wavelength:
|
10.64 um |
|
Beam quality:
|
m2<2 |
|
Laser repetition rate:
|
0 KHz-130 KHz |
|
Marking speed:
|
≤ 7000mm / s |
|
Working area:
|
500mmX500mm,650mm×650mm,800mmX800mm (optional) |
|
dynamic axial response time
|
< 4ms |
|
Min.characters:
|
1mm |
|
cooling system
|
water-cooling |
|
Repeated precision:
|
± 0.02mm |
|
average power consumption
|
≤4.5k W |
|
Environment Temperature:
|
10~30ºC |
|
Power supply :
|
A C 220V/50Hz 30A |
|
marking graph
|
user-defined character,CAD data |
|
supported format
|
BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
|
Environment humidity
|
45%-75% |
| Model |

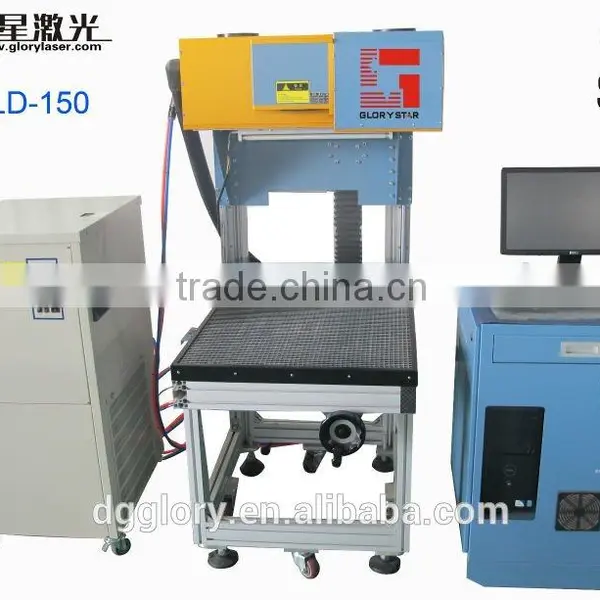

GLD-100/GLD-150/GLD-275
|
1- 13 Years experience in manufacturing laser equipments.
2- Glory Laser exports to over 70 countries & regions .
3- Hold "NATIONAL HI-TECH Enterprise" certificate from China.
4- Optical Research Base Of Nanyang University.
honor certifications
1. NATIONAL HI-TECH enterprise
2. National software enterprise
3. Europe CE Safety certified
4. Passed ISO9001:2000 international quality system
5.SGS approved
6. United States FDA appoved
7.Possess multiple patent certificates and software copyright
8.Optical research base of Beijing university
our workshop
OUR exhibition
Customer Visiting
warmly welcome you to visit our company, and sincerely waiting for your join
