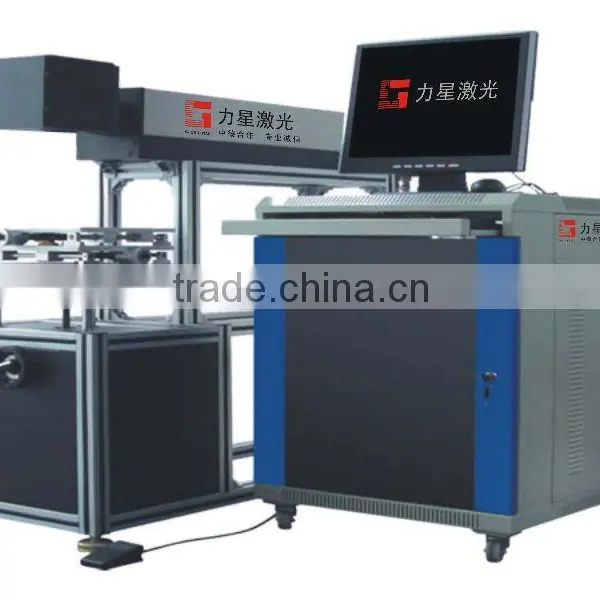

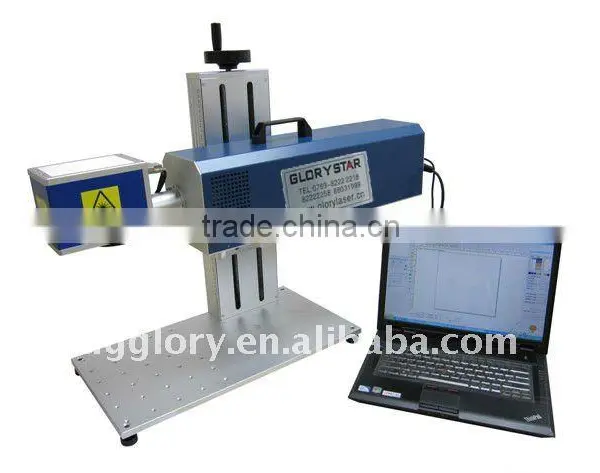

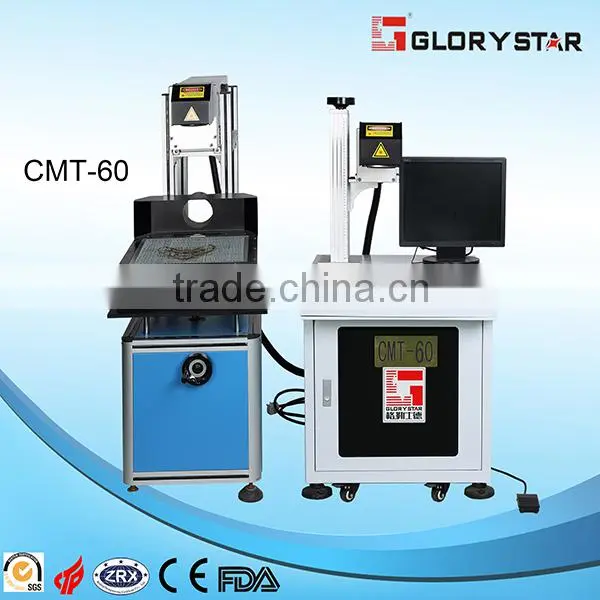

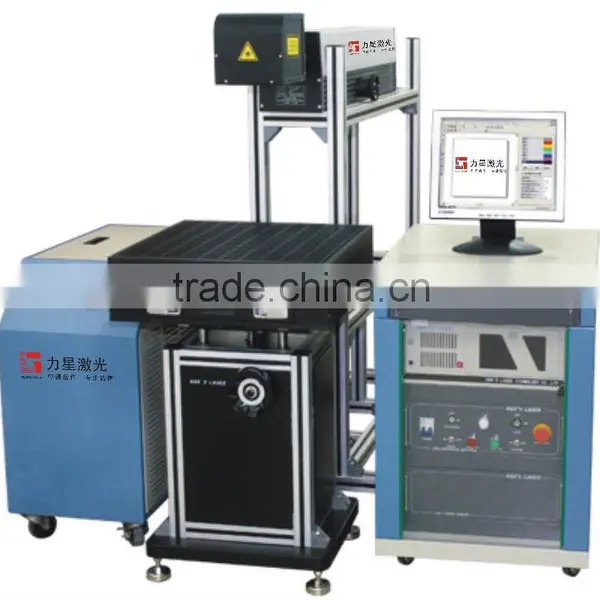

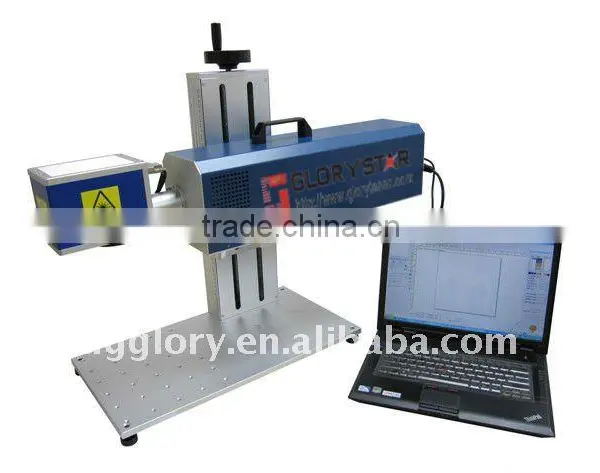

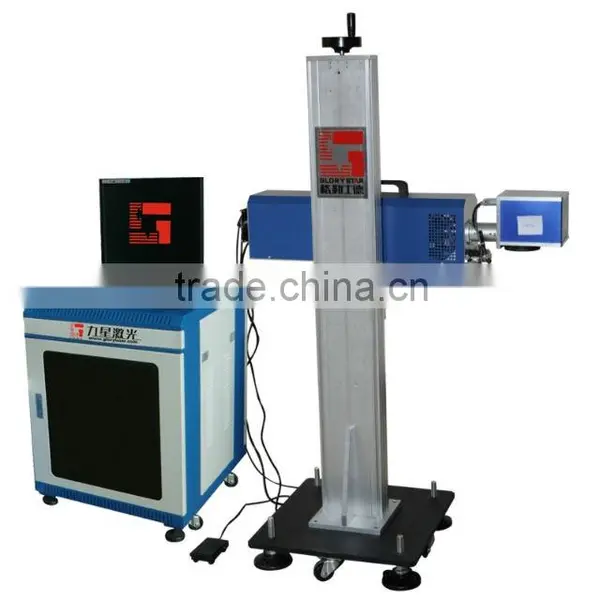

CO2 Laser Marking Machine(CMT-10/20/30)
US$ 8000.00 - 8000.00
MOQ: 1 Box
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN or GUANGDONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YL SP RECI CO2 Glass Laser Tube Cutting Leather, Cloth,acrylic, Wood, Paper,rubber, Jade150w Co2 Laser Cutter for SaleNegotiableMOQ: 1 Set -
Blade Stripe CO2 Laser Cutting Machine for Wood for the Agent, Dealers, DistributorsNegotiableMOQ: 1 Set
-
Small Power Honey Comb Grid Blade Stripe Laser Engraving and Cutting Machine for Footware, Toy,garmentNegotiableMOQ: 1 Set
-
60w 80w 100w 130w 150w 200w 300w SP YL RECI CO2 Laser Tube Laser Engraving and Cutting MachineNegotiableMOQ: 1 Set
-
Stepper Motor Laser Cutter Leather Wood Acrylic Laser Cutting Machine With 80w 100w130w 150w Co2 Laser Glass TubeNegotiableMOQ: 1 Set
Condition
New
Laser Type
CO2
CNC or Not
Yes
Cooling Mode
Air Cooling
Control Software
EZCAD
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy
0.01mm
Place of Origin
Guangdong, China
Brand Name
GLORYSTAR
Model Number
CMT-10/20/30/50
Power(W)
10W/20W/30W/50W
Certification
CCC, CE, GS, ISO, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Product Details
Basic Info.
Model NO.:CMT-30/CMT-60/CMT-100
Engraving Machine Type:Laser Engraving Machine
Power:Small Power
Certification:SGS, CE, ISO 9001
Laser Type:CO2
Condition:New
Usage:No-Metal Industries
Laser Machine:CO2 Laser Marking
Function:Laser Marking Machine
Export Markets:Global
Additional Info.
Trademark:GLORY STAR
Packing:packaged by plywood
Standard:CE, SGS, FDA, Bureau, ISO
Origin:China
HS Code:8456100090
Production Capacity:3500 Sets/Year
Product Description
Product Features Adopting originally imported USA CO2 Radio Frequency Metal Laser tube and laser Power supply. Originally imported marking software and Scanner Lens, adjustable laser power is controlled by software. Processing cost is low, no consumable materials, marking area is big and fine. Cutting speed is efficient, engraving low or deep can be adjusted freely, suitable for all kinds of precuts.
This series laser marking/cutting machines is out general and mature model, employ optimized controlling software, operation is easy and human friendly controlling panel. Customized according to customer's requirements
Applications & Materials Part of metal materials, Widely applied on costume accessories, food and drink packaging, garment and cloth leather, Crafts, rubber, electronic parts, nameplates, construction ceramic, pharmaceutical packaging
This series laser marking/cutting machines is out general and mature model, employ optimized controlling software, operation is easy and human friendly controlling panel. Customized according to customer's requirements
Applications & Materials Part of metal materials, Widely applied on costume accessories, food and drink packaging, garment and cloth leather, Crafts, rubber, electronic parts, nameplates, construction ceramic, pharmaceutical packaging
Technical Data
| Model | CMT-10 / CMT-30/ CMT-60 / CMT-100 |
| Max.Average Power | 10W / 30W / 60W / 100W |
| Wave Length | 10.64 um |
| Output Stability | ±5% / ±10% |
| Marking Area | 110mm*110mm(10W) |
| 110mm*110mm or 175mm*175mm (30W) | |
| 175mm*175mm or 300mm*300mm (60W) | |
| 175mm*175mm or 300mm*300mm (100W) | |
| Output Power | 10%~100% continuous adjustable |
| Output Frequency | 0 KHz~200 KHz continuous adjustable |
| Marking speed | ≤ 3m / s |
| Marking depth | ≤ 8mm |
| Min.Character size | 0.6mm |
| Min.Line width | 0.12mm |
| Repetition Accuracy | ±0.01 |
| Operating System | WindowsXP/ 2000/ 98 |
| Cooling System | Air cooling (10W / 30W / 60W) |
| Water cooling (100W) | |
| Environment Temperature | 10ºC~30ºC |
| Humidity | 45%~75% |
| Power Voltage | 220V / 50Hz / 60Hz |
| Overall Power Consumption | ≤500W |
| ≤1000W | |
| ≤1.5KW | |
| ≤4KW | |
| Marking Graph | User-defined character, CAD data |
| Supported Format | BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
| Model | Package Dimension |
| CMT-10A portable | 700mm*400mm*680mm |
| CMT-10B Vertical | 920mm*500mm*1450mm |
| CMT-30 | 1000mm*800*1200mm |
| CMT-60 | 1200mm*1000mm*1450mm |
| CMT-100 | 1300mm*1000mm*1400mm |
