Power Stacker -- RS1645

Power Stacker -- RS1645 thumbnail-1
Power Stacker -- RS1645 thumbnail-2
Power Stacker -- RS1645 thumbnail-3
Power Stacker -- RS1645 photo-1

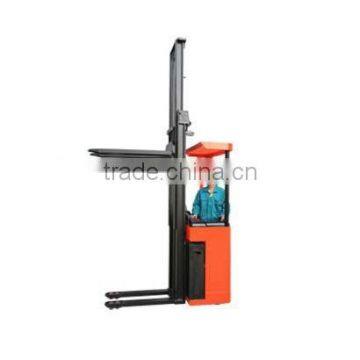

Power Stacker -- RS1645 photo-2

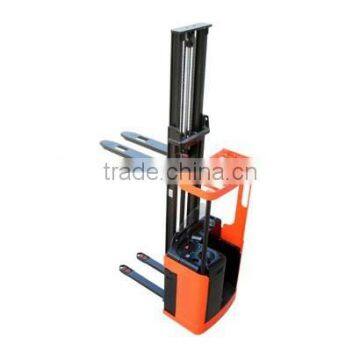

Power Stacker -- RS1645 photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Contact Supplier Request Quote Chat Now
Shanghai Cheuk's Logistics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name Cheuk's
Model Number RS1645
Dimension(L*W*H) 1800*850*2040mm
Certification CE
Warranty 1 year
After-sales Service Provided No overseas service provided
The basic information of Power Stacker--RS1645


RS16 stand-on stacker is designed for a high turn round of goods in racking, when loading and unloading, as well as for the horizontal transport of goods up to 1600kg. Normal commercial pallets can be handled. The RS16 is also very flexible when used for order picking and as a working / lifting table.
Effortless power-assisted-steering
Powerful and economic with maintenance-free 3-phase AC drive motor
Lower life cycle costs
High capacity at high lifting height
Efficient and quiet hydraulics
Ergonomic operator cab
Long life control lever
Danfoss drive wheels
Danfoss controller
Hydraulic motor unit from Europe
This specification sheet according to VDI regulation 2198 only provides technical values for the standard stacker. Non-standard types, additional equipment,etc. could produce other values. Right reserved for technical changes and improvements.

RS16 Stand-on stacker


The specification of Power Stacker--RS1645



1KG=2.2LB 1INCH=25.4MM



Up to h3 mm ACTUAL CAPACITY (Q) kg ACTUAL CAPACITY EITH SIDE SUPPORT
2900 1600 1350 1600 1350
3600 1000 850 1200 1000
4000 800 650 1000 850
4500 600 500 800 650
5500     650 550
Load centre distance (C)mm 600 700 600 700



Mast table

1KG=2.2LB 1INCH=25.4MM

Designation Closed mast
height h1 mm		 Free lift
h2 mm		 Lift height
h3 mm		 Extended mast
height h4 mm
Two stage 2147 185 3200 3660
  2347 185 3600 4060
  2797 185 4500 4960
Two stage 2147 1660 3200 3680
(full free) 2347 1860 3600 4080
  2797 2310 4500 4980
Three stage 2240 1740 5000 5505
  2500 1960 5500 6040

1KG=2.2LB 1INCH=25.4MM

Characteris
tics		 1.1 Model of manufacture unit RS1632 RS1636 RS1645
1.2 Power supply(electric,diesel, petrol,gas,mains electric)   electric
1.3 Type of operation(hand pedestrian, stand on, rider seated, order picker)   stand on
1.4 Capacity /rated load QKg 1600
1.5 Load center distance Cmm 600
1.6 Load distance Xmm 765
1.7 Wheelbase ymm 1435
Weights 2.1 Weight(including battery) Kg 1367 1392 1450
2.2 Axle loadings laden drive end/load end Kg 1290/1760
2.3 Axle loadings unladen drive end/load end Kg 1110/340
Wheels
types		 3.1 Tyres(rubber, Vulkollan, pneumatic, polyurethane)   rubber/polyurethane
3.2 Tyre size drive end mm Φ254x82
3.3 Tyre size load end mm Φ80x70
3.4 Castor wheels(dimensions)   Φ150x60
3.5 Wheels, number(x=drive wheel) drive end/load end   1x -1/ 4
3.6 Track width(front) drive end b10mm 635
3.7 Track width(rear) load end b11mm 395
Dimensions 4.1 Closed mast height h1mm See mast table
4.2 Free lift h2mm See mast table
4.3 Lift height h3mm See mast table
4.4 Extended mast height h4mm See mast table
4.5 Overhead load guard(cab)height h6mm 2245
4.6 Standing height h7mm 230
4.7 Height of steering wheel h14mm 1255
4.8 Fork height lowered h13mm 85
4.9 Overall length l1mm 2035
4.10 Length to front face of fork l2mm 880
4.11 Overall width b1mm 978
4.12 Fork dimensions s/e/lmm 60/180/1150
4.13 Fork carriage with b3mm 645
4.14 Overall fork width b5mm 575
4.15 Floor clearance under mast,laden m2mm 25
4.16 Working aisle with 800x1200 pallet lengthwise Astmm 2246
4.17 Outer turning radius Wamm 1655
Performance 5.1 Travel Speed laden/unladen km/h 8.8/9.2
5.2 Lifting speed laden/unladen mm/s 145/215
5.3 Lowering speed laden/unladen mm/s 260/270
5.4 Gradeability laden/unladen % 7/15
5.5 Brakes   electric
Electric
Motor		 6.1 Drive motor kw 3.0(AC)
6.2 Lifting motor kw 3
6.3 Battery acc.to DIN 43531/35/36 A,B,C,no 1)   43531 B
6.4 Battery voltage, norminal capacity K5 1) V/Ah 24/360
6.5 Battery weight Kg 310
6.6  Battery dimensions l/w/h 1) mm 930/210/750
Other 7.1 Type of drive control   MOSFET Control AC
7.2 Noise peak at operator’s ears dB(A) <70
