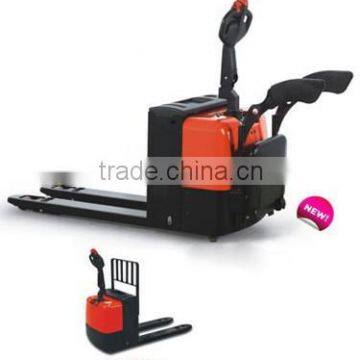

Top Quality Ex Power Pallet Truck LPT27AC

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	LPT27AC		Lift Drive / Actuation	Electric Motor

Product Description

The specification of Ex Power Pallet Truck LPT27AC

Characteristics	1.1	Model	unit	LPT27
	1.2	Drive:electric(battery or mains),diesel, petrol,fuel gas,manual		electric
	1.3	Type of operation:hand,pedestrian,stand ing,seated,order-picker)		pedestrian
	1.4	Load Capacity /rated load	Q (kg)	2700
	1.5	Load center distance	C mm	600
	1.6	Load distance, centre of drive axle to fork	X mm	938/1008
	1.7	Wheelbase	y mm	1390/1460
Weights	2.1	service Weight	Kg	560
	2.2	Axle loading, laden front/rear	Kg	1290/1970
	2.3	Axle loadings, unladen front/rear	Kg	430/130
Wheel	3.1	Tyres:solid rubber, superelastic, pneumatic, polyurethane)		polyurethane
	3.2	Tyre size, front		Φ230×75
	3.3	Tyre size, rear		Φ74×120/Φ74×93
	3.4	Caster wheels(dimensions)		Φ100×40
	3.5	Wheels, number front/rear(x=driven wheels)		1x+2/2 or 1x+2/4
	3.6	Track width,front	b10(mm)	500
	3.7	Track width,rear	b11(mm)	505
Dimensions	4.1	Lift height	h3(mm)	120
	4.2	Height of tiller in drive position min./max.	h14(mm)	1005/1420
	4.3	Lowered height	h13(mm)	80
	4.4	Overall length	l1(mm)	1770/1840
	4.5	Length to face of forks	l2(mm)	620
	4.6	Overall width	b1(mm)	726
	4.7	Fork dimensions	s/e/l(mm)	60/180/1150(1220)
	4.8	Width over forks	b5(mm)	560/685
	4.9	Ground clearance, center of wheelbase	m2(mm)	20
	4.10	Aisle width for pallets 800x1200 lengthways	Ast(mm)	2250/2285
	4.11	Turning radius	Wa(mm)	1570/1640
Performance	5.1	Travel Speed, laden/unladen	km/h	4.4/4.6
	5.2	Lift speed, laden/unladen	mm/s	25/33
	5.3	Lowering speed, laden/unladen	mm/s	40/28
	5.4	Max.gradient performance, laden/unladen	%	8/15
	5.5	Service brake		Electric-magnetic
Motor	6.1	Drive motor rating s2 60min	kw	1.5(AC)
	6.2	Lift motor rating at s3 15%	kw	1.5
	6.3	Battery acc. To DIN, no		4VBS
	6.4	Battery voltage, norminal capacity	V/Ah	24/280
	6.5	Battery weight+/-5%	Kg	230
	6.6	Battery Dimensions LxWxH	mm	645/244/570
Others	7.1	Type of drive control		MOSFET Control
	7.2	Sound level at driver’s ear acc.to EN12053	dB(A)	<70
	7.3	Turning angle		180

Company Information

Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools and so on.

Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
