Home > Products > Pallet Truck > Hot Product Ex Power Pallet Truck-CH-LPE20-EX

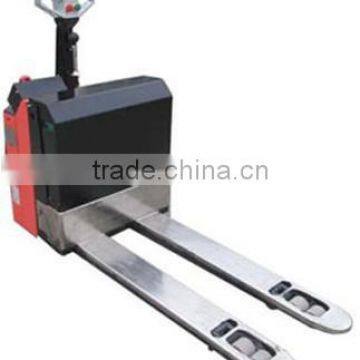

Hot Product Ex Power Pallet Truck-CH-LPE20-EX
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Cheuk's | |
| Model Number | CH-LPE20-EX | Lift Drive / Actuation | Electric Motor |
Product Description
The basic information of Power Pallet Truck-CH-LPE20-EX
Ex Level 1, 2 area, the gas mixture type A and B , the temperature level of T4 (135℃)
This product is new power pallet truck manufactured by Noblelift
The specification of Power Pallet Truck-CH-LPE20-EX
| Characteristics | 1.1 | Model | unit | CH-LPE20-EX |
| 1.2 | Motor type | electric | ||
| 1.3 | Type of operation(hand,pedestrian,stand on,rider seated, order picker) | stand on | ||
| 1.4 | Capacity /rated load | Q kg | 2000 | |
| 1.5 | Load center distance | C mm | 600 | |
| 1.6 | Load distance | X mm | 963/1033 | |
| 1.7 | Wheelbase | Y mm | 1275/1335 | |
| Weights | 2.1 | Weight(including battery) | kg | 450 |
| 2.2 | Axle loadings laden drive end/load end | kg | 850/1600 | |
| 2.3 | Axle loadings unladen drive end/load end | kg | 350/100 | |
| Wheels types | 3.1 | Tyres(rubber, Vulkollan,pneumatic, polyurethane) | polyurethane | |
| 3.2 | Tyre size drive end | mm | 252x70 | |
| 3.3 | Tyre size load end | mm | 80x70 | |
| 3.4 | Castor wheels(dimensions) | 100x40 | ||
| 3.5 | Wheels, number(x=drive wheel)drive end/load end | 1x+2/2 or 1x +2/4 | ||
| 3.6 | Track width(front) drive end | b10 mm | 515 | |
| 3.7 | Track width(rear) load end | b11 mm | 380/525 | |
| Dimensions | 4.1 | Lift height | h3 mm | 120 |
| 4.2 | Tiller height in neutrality position | h14 mm | 1240 | |
| 4.3 | Fork height lowered | h13 mm | 82 | |
| 4.4 | Overall length | l1 mm | 1795/1865 | |
| 4.5 | Length to front face of fork | l2 mm | 635 | |
| 4.6 | Overall width | b1 mm | 726 | |
| 4.7 | Fork dimensions | s/e/l mm | 60/160/1150(1220) | |
| 4.8 | Overall fork width | b5 mm | 540/685 | |
| 4.9 | Floor clearance, center of wheelbase | m2 mm | 22 | |
| 4.10 | Working aisle with 800x1200 pallet lengthwise | Ast mm | 2295/2335 | |
| 4.11 | turning radius | Wa mm | 1630/1700 | |
| Performance | 5.1 | Travel Speed laden/unladen | km/h | 5.0/5.2 |
| 5.2 | Lifting speed laden/unladen | mm/s | 20/30 | |
| 5.3 | Lowering speed laden/unladen | mm/s | 23/31 | |
| 5.4 | Gradeability laden/unladen | % | 10/6 | |
| 5.5 | Brakes | Electric-magnetic | ||
| Electric Motor | 6.1 | Drive motor | kW | 1.5 |
| 6.2 | Lifting motor | kW | 0.8 | |
| 6.3 | Battery acc. To BS, no 1) | 3VBS | ||
| 6.4 | Battery voltage,norminal capacity K5 1) | V/Ah | 24/165 | |
| 6.5 | Battery weight +/-5% | kg | 160 | |
| 6.6 | Battery dimensions l/w/h 1) | mm | 455/196/570 | |
| Other | 7.1 | Type of drive control | MOSFET Control | |
| 7.2 | Sound level, at driver’s ears | dB(A) | <70 | |
| 7.3 | Turning angle | ° | 180 |
* :82 height single wheel 80x93
