Power Pallet Truck WP-LPT22 For Sale Made In China

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	WP-LPT22		Lift Drive / Actuation	Hand

Product Description

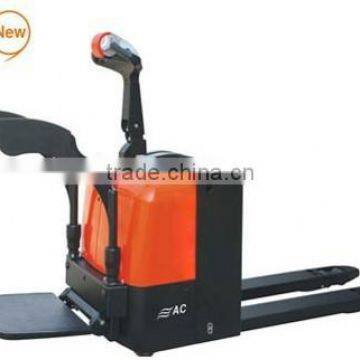

The product intro of hand pallet truck WP-LPT22

Power Pallet Truck

WP-LPT22

With DANFOSS driving wheels
With DANFOSS controller
Heavy duty design
This 2200kgs Power Pallet Truck has been designed with new technology be compact.
Equipped with paltform and arm protection make the operator feel more comfortable, and also improve the working efficiency;
Comforms to EN1726 and EN1175-1
The powerful drive motor in 3-phase AC technology.

1. Starting performance(starts steadily)
2. Climb performance (very easy to climb at 8% slope)
3. Save energy (when decelerate, drive on slope or applies the brake, it can recover energy)
4. Province electricity (105-15% energy saved than DC type)
5. Economic at service cost (free maintenance for the motor and electronic controls)

6. Easy to operate and reliable at work

The specification of hand pallet truck WP-LPT22

Characteristics	1.1	Model of manufacture	unit	WP-LPT22AC
	1.2	Power supply(electric,diesel, petrol,gas,mains electric)		electric
	1.3	Type of operation(hand,pedestrian,stand on,rider seated, order picker)		Pedestrian
	1.4	Capacity /rated load	Q Kg	2200
	1.5	Load center distance	C mm	600
	1.6	Load distance	X mm	963/1033
	1.7	Wheelbase	y mm	1368
Weights	2.1	Weight(including battery)	Kg	512
	2.2	Axle loadings laden drive end/load end	Kg	1082/1630
	2.3	Axle loadings unladen drive end/load end	Kg	399/113
Wheels types	3.1	Tyres(rubber, Vulkollan, pneumatic, polyurethane)		polyurethane
	3.2	Tyre size drive end	mm	Φ230x75
	3.3	Tyre size load end	mm	2xΦ84x70/Φ84x93
	3.4	Castor wheels(dimensions)		2xΦ100x40
	3.5	Wheels, number(x=drive wheel)drive end/load end		1x -2/2 or 1x -2/4
	3.6	Track width(front) drive end	b10mm	540
	3.7	Track width(rear) load end	b11mm	380/525
Dimensions	41	Lift height	h3 mm	120
	4.2	Tiller height in neutrality position	h14mm	1323
	4.3	Fork height lowered	h13mm	85
	4.4	Overall length	l1 mm	1815/1885
	4.5	Length to front face of fork	l2 mm	665
	4.6	Overall width	b1 mm	726
	4.7	Fork dimensions	s/e/l mm	60/160/1150(1220)
	4.8	Overall fork width	b5 mm	540/685
	4.9	Floor clearance, center of wheelbase	m2 mm	25
	4.10	Working aisle with 800x1200 pallet lengthwise	Ast mm	2305/2344
	4.11	turning radius	Wa mm	1640/1710
Performance	5.1	Travel Speed laden/unladen	km/h	5.8/6.0
	5.2	Lifting speed laden/unladen	mm/s	19/35
	5.3	Lowering speed laden/unladen	mm/s	30/27
	5.4	Gradeability laden/unladen	%	9/15
	5.5	Brakes		Electric-magnetic
Electric Motor	6.1	Drive motor	kw	1.5(AC)
	6.2	Lifting motor	kw	0.8
	6.3	Battery acc. To BS, no 1)		3VBS
	6.4	Battery voltage, norminal capacity K5 1)	V/Ah	24/210
	6.5	Battery weight +/-5%	Kg	185
	6.6	Battery dimensions l/w/h 1)	mm	677/196/570
Other	7.1	Type of drive control		MOSFET Control AC
	7.2	Sound level, at driver’s ears	dB(A)	<70
	7.3	Turning angle	.	180
