Motorla Two Way Radio VHF Walky Talky CP200D

Motorla Two Way Radio VHF Walky Talky CP200D thumbnail-1
Motorla Two Way Radio VHF Walky Talky CP200D thumbnail-2
Motorla Two Way Radio VHF Walky Talky CP200D thumbnail-3
Motorla Two Way Radio VHF Walky Talky CP200D thumbnail-4
Motorla Two Way Radio VHF Walky Talky CP200D thumbnail-5
Motorla Two Way Radio VHF Walky Talky CP200D photo-1
Motorla Two Way Radio VHF Walky Talky CP200D photo-2
Motorla Two Way Radio VHF Walky Talky CP200D photo-3
Motorla Two Way Radio VHF Walky Talky CP200D photo-4
Motorla Two Way Radio VHF Walky Talky CP200D photo-5
US$ 200 - 300 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Malaysia
Brand Name:
Motorola
Model Number:
CP200d
Contact Supplier Request Quote Chat Now
Guangzhou Etmy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Malaysia
Brand Name Motorola
Model Number CP200d
Type Handheld
Dimensions 127.7 x 61.5 x 44.0 mm
Frequency Range 136-174MHz 400-470MHz
Storage Channel 16
Talk Range 3-5KM

Features



• Analogue / Digital
• Voice Communications
• Dual Capacity Direct Mode
• Digital Mobile Radio (DMR) Standards Compliant
• Transmit Interrupt (Decode Only)
• Basic Privacy
• Voice Announcement
• IP54 Rated
• Radio Management Suite Compatible



Specifications



Specifications

GENERAL SPECIFICATIONS

Channel Capacity

16

Frequency

136-174 MHz 403-470 MHz

Dimensions (HxWxL)

NiMH 1400mAH

Slim Li-Ion 1600mAH

Li-Ion 2200mAH



5.0 x 2.4 x 1.7 in (127.7 x 61.5 x 42.0 mm)

5.0 x 2.4 x 1.5 in (127.7 x 61.5 x 39.0 mm)

5.0 x 2.4 x 1.8 in (127.7 x 61.5 x 44.0 mm)

Weight with battery:

NiMH 1400mAH

Slim Li-Ion 1600mAH

Li-Ion 2200mAH



14.3 oz (406 g)

12.1 oz (341 g)

12.2 oz (346 g)

Power Supply

7.2V nominal

Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power

IMPRES LiIon Std Battery

Analogue: 9 hrs / Digital: 13 hrs

IMPRES LiIon HiCap Battery

Analogue: 13.5hrs / Digital: 19 hrs

IMPRES FM LiIon Battery

Analogue: 8.5 hrs / Digital: 12 hrs

NiMH Battery

Analogue: 8 hrs / Digital: 11 hrs

RECEIVER

Frequency

136-174 MHz;403-512 MHz

Channel Spacing

12.5 kHz/ 20/25 kHz

Frequency Stability

+/- 0.5 ppm

Analogue Sensitivity

0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD);
0.4 uV (20 dB SINAD)

Digital Sensitivity

5% BER: 0.3 uV

Intermodulation

70 dB

Adjacent Channel Selectivity

60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz

Spurious Rejection

70 dB

Rated Audio

500 mW

Audio Distortion @ Rated Audio

3% (typical)

Hum and Noise

-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz

Audio Response

 +1, -3 dB

Conducted Spurious Emission

 -57 dBm

TRANSMITTER

Frequency

 136-174 MHz;403-512 MHz

Channel Spacing

 12.5 kHz/ 20/25 kHz

Frequency Stability

+/- 1.5 ppm (DM 3600)

Power Output

UHF

1-5 W

VHF

1-4W

Modulation Limiting

+/- 2.5 kHz @ 12.5 kHz

+/- 4 kHz @ 20 kHz

+/- 5.0 kHz @ 25 kHz

FM Hum and Noise

-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz

Conducted / Radiated Emission

-36 dBm < 1 GHz;-30 dBm > 1 GHz

Adjacent Channel Power

-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz

Audio Response

+1, -3 dB

Audio Distortion

3%

Digital Vocoder Type

AMBE+2

Digital Protocol

ETSI-TS 102 361-1, 2 & 3

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

 -30° C / +60° C

Storage Temperature

-40° C / +85° C

Temperature Shock

Per MIL-STD

Humidity

Per MIL-STD

Water and Dust Intrusion

IP54, MIL-STD







 Certificate

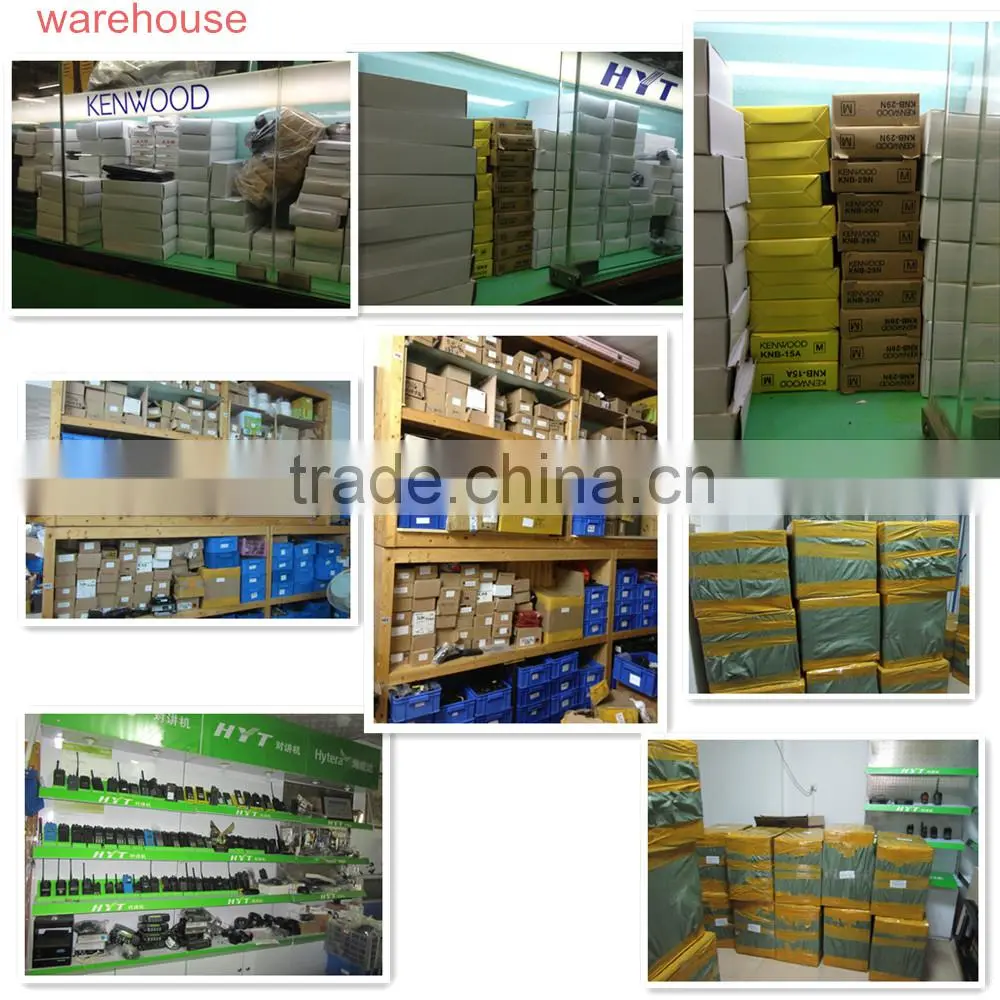

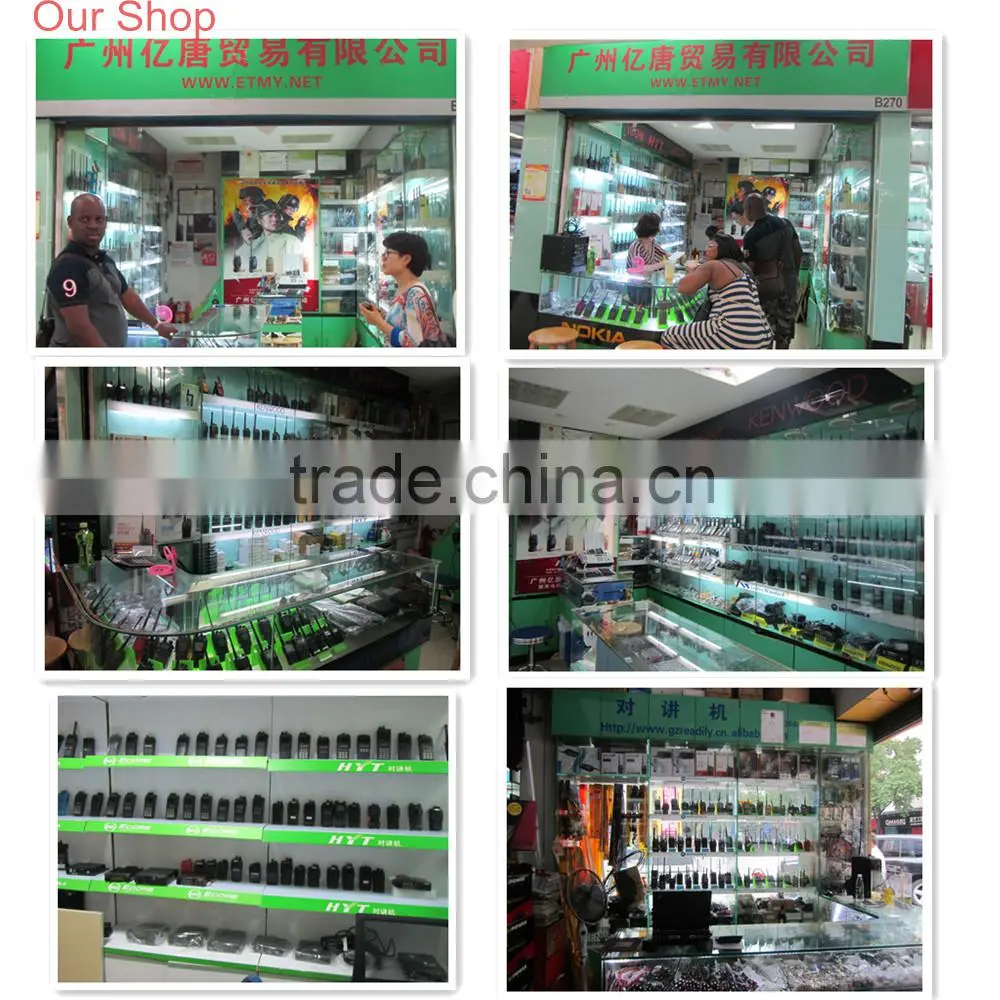

Company Show



About us

GUANGZHOU ETMY Co.,LTD was found in 2007 , specialized in walkie talkie for more than 7 years , was authorized as a first-level agent by MOTOROLA , HYTERA and KENWOOD appointed distributor . All product comply with international quality certification , as of customization from any customers . We aim for excellent quality of products and services , especially customer satisfaction , carrying out the service tenet : Quality first , service upmost. We believe the commitment will develop our relationship to create an environment of trust and reliability
