Top Quality Zhuzhou Tungsten Carbide Brazed Tips
- 10 Ton / Tons per Month
- Any port
- T/T L/C D/P D/A Credit Card PayPal
- CD-650 High Precision Tungsten Carbide Blank for Carbide Punches Die Inserts
- Yg20c Tungsten Carbide Metal Forming Dies for Cold-Forming Screws Bolts and Rivets
- Bk15/Bk20 Customizable Tungsten Carbide Seaming Roller Dies for Can Sealing Side
- YG25/GT55 tungtsen carbide punching dies for bolt
- K10/K20 Tungsten Carbide Valve Ball with Hollow Hole for Valve Pumps
- Original Material Tungsten Carbide Inlet Seats for Air-Operated Airless Spray Pumps
Product Details
Place of Origin: | Hunan, China | Brand Name: | Jin Tai Pai | Model Number: | Various |
Alloy Specification: | YG8, YG6, etc. |
Product Description
Specifications
1.100% raw material2.13 years experience
3.ISO 9001
4.OEM & ODM
5.Customized products are acceptable

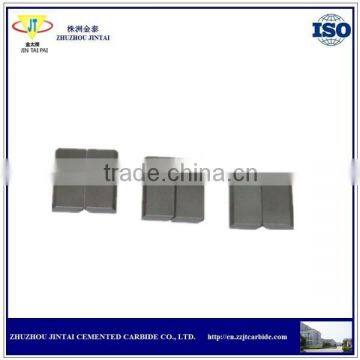

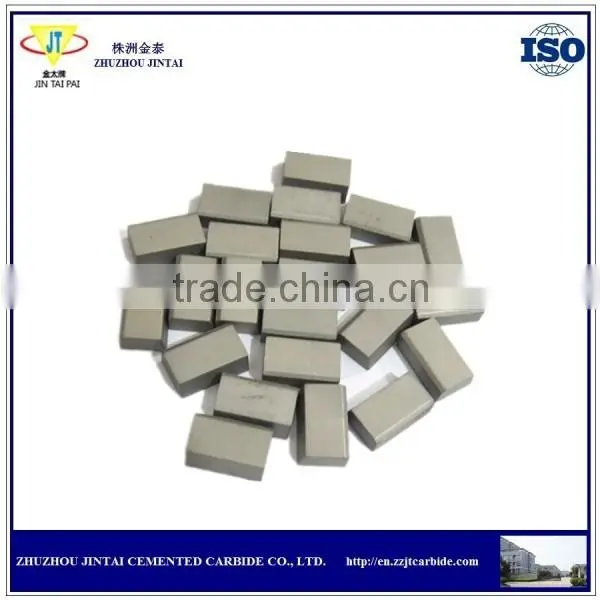

Photos of Tungsten Carbide Brazed Tips
Tungsten Carbide Brazed Tips are of wide application, especially for cutting tools.

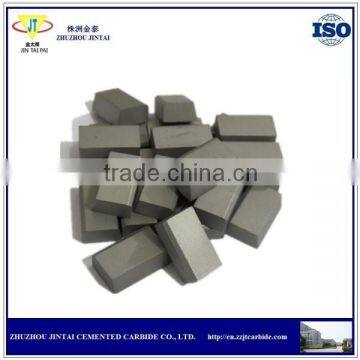

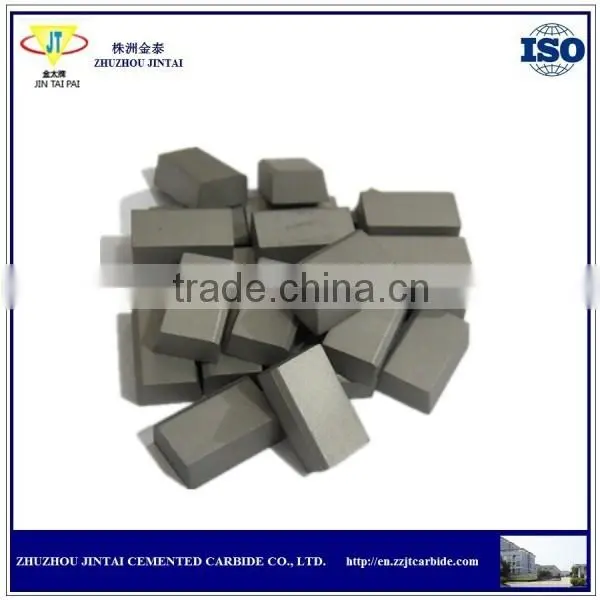

Tungsten Carbide Brazed Tips with Different Sizes
Customized Tungsten Carbide Brazed Tips are available ! ! !
Tungsten Carbide Brazed Tips with Common Grades
ISO Code | Grade | Physical and Mechanical Properties | Applications Recommended | ||
Density g/cm3 | Hardness HRA(HV) | TRS Mpa | |||
K05 | YG3 | 15 | 90.5 | 1300 | Suitable for finishing of cast iron and nonferrous metal. |
K10 | YG6X | 14.8 | 91 | 1560 | The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese stell and hardening steel. |
YG6A | 14.7 | 91.5 | 1510 | ||
K15 | YG6 | 14.9 | 89.5 | 1670 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
K20 | YG8 | 14.6 | 89 | 1840 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
M10 | YW1 | 13 | 91 | 1290 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel |
YW3 | 12.9 | 92 | 1390 | ||
YW4 | 12.3 | 92 | 1390 | ||
M20 | YW2 | 12.9 | 90.5 | 1460 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the maching of railway wheel hubs. |
P10 | YT05 | 12.6 | 92.5 | 1260 | Suitable for the finihing and semi-finishing if steel and cast steel with a moderate feed rate and a rather high cutting speed. |
YT15 | 11.3 | 91 | 1300 | ||
P20 | YS14 | 11.4 | 91.5 | 1550 | Suitable for the finishing and semi-finishing of steel and cast steel. YS25 is specially used for the milling of steel and cast steel. |
YT14 | 11.4 | 90.5 | 1400 | ||
YS25 | 13 | 90.5 | 1780 | ||
P30 | YT5 | 12.8 | 89.5 | 1560 | Suitable for the heavy duty rough tuming of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
K05-K10/M20 | YT26 | 14 | 92.5 | 1600 | Suitable for fine and semi-finishing machining of chilled cast iron and non ferrous metals with good performances of the mosetting and wear resistance, also suitable for turning and milling of manganese steel and hardened steel. |
K20 | YD201 | 14.9 | 91 | 1800 | Suitable for semi-finishing and the rouhhing of cast iron and light alloys ans also for the milling of cast iron ans low alloy steel. |
M05-M10 | YS8 | 13.9 | 92.5 | 1720 | It can be used for the finishing of iron based ans nickel based high -temperature alloys and high -strength steel and it can also be used for the finishing if chilledcast iron, heat resistant stainless steel, high manganese steel resistant stainless steel, high manganese steel and hardened steel. |
M10 | 60 | 12.8 | 92.5 | 1500 | Mainly used for threading of petroleum pipe, also used for fine machining of hardened steel. |
M20 | YM20 | 13 | 91 | 1750 | Suitable for steel, cast steel, manganese steel, grey cast iron, medium cutting speed and feed rate by half finishing and semi-finishing end mills. |
P30 | YC30S | 12.9 | 90 | 1600 | Used for the milling of steel, cast steel ans alloy steel. |
P35-P40 | YC40 | 12.9 | 91 | 2200 | Suitable for the heavy duty turning of steel and cast steel with a big steel rate under unfavorable working condifion. |
P40 | YM40 | 12.75 | 90 | 2100 | Suitable for the heavy duty turning of steel and cast steel with a big steel with a big steel rate and also for face milling. |
YC45 | 12.75 | 90 | 2300 |
Any Grade will be acceptable as your requirements!
Customer NOTICE
To save your value time, please inform us of the following information:
1. Grade
2. Type/Dimension/Clear Drawing
3. Available tolerance
4. Order quantity for each type
5. Blanks or finished products
6. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
Our Products Range
Tungsten Carbide Plates
Tungsten Carbide Strips
Tungsten Carbide Disc Cutters
Tungsten Carbide Balls
Tungsten Carbide Inserts
Tungsten Carbide Tips
Tungsten Carbide Rods
Tungsten Carbide Cutter Blades
Tungsten Carbide Coal Drilling Blades
Tungsten Carbide Teeth Balls
Tungsten Carbide Road-digging Teeth
Tungsten Carbide Drawing Dies
Tungsten Carbide Rollers
Tungsten Carbide Tungsten Carbide Buttons
Tungsten Carbide Tire Studs
Tungsten Carbide Non-standard Special-shaped Moulds
