Help CenterTPB-40 Jack Hammer
Related Products
Specifications
1.high efficiency2.low price
3. high quality

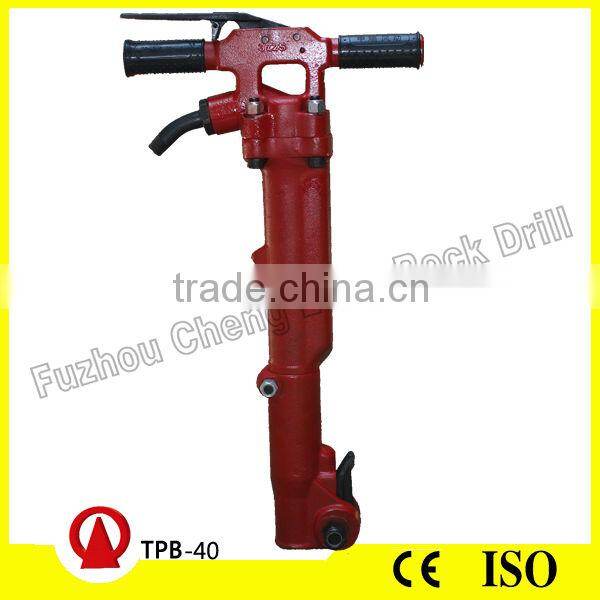

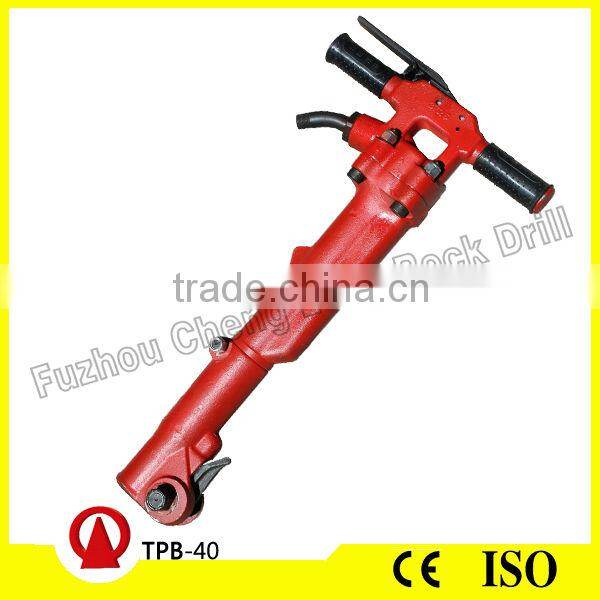

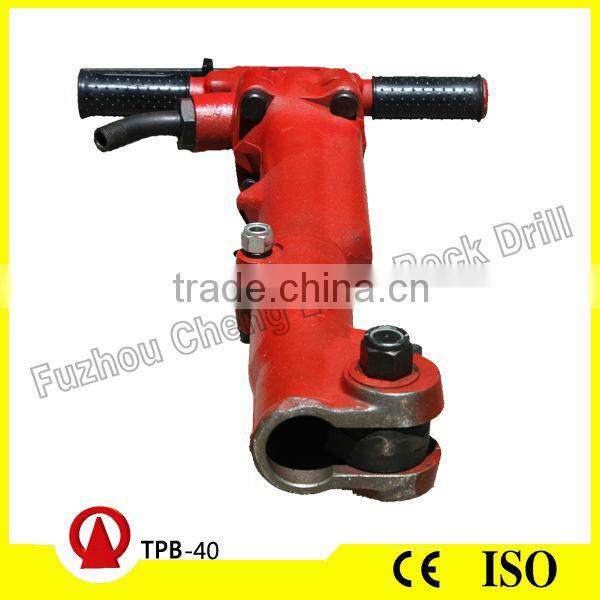

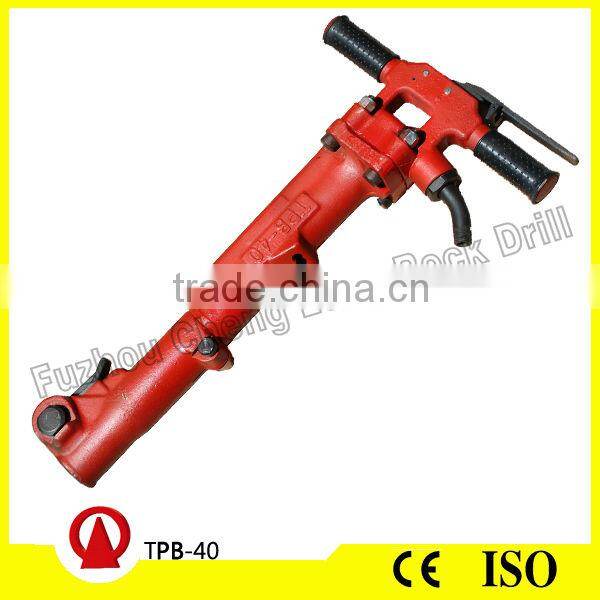

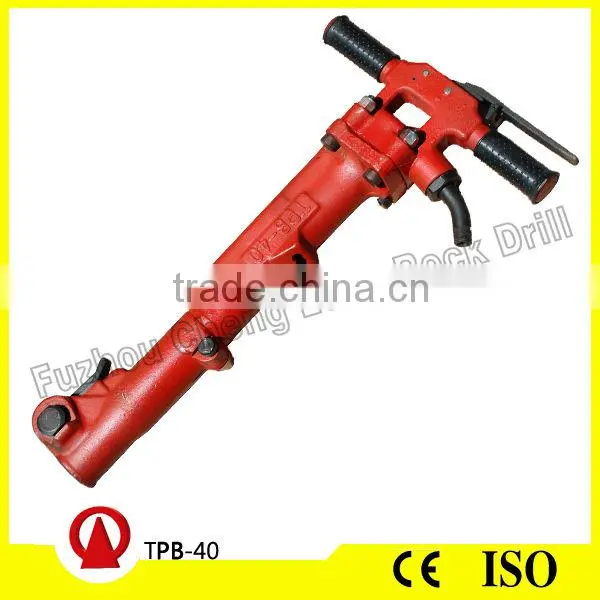

TPB-40 Jack Hammer
Machine specification
Piston diameter |
44mm |
| Piston stroke | 100mm |
| Impact frequency | 900 minute/Time |
| Net weight | 18kg/39.6lbs |
| Total length | 660mm |
| Air consumption | 1.6m3/minute |
| Hose size | 19mm(3/4inch |
| Shank specifications | 1X4-1/4 25X108 |
| Inlet size | 3/4pt |
| Air pressure | 0.63Mpa |
Product features
Alloy steel forged parts, maximum durability
The handle design four bolts, can withstand the harsh working conditions
Quick change knife fixture, chisel convenient replacement
Crushing and mining six angle shank, suitable for Asphalt Pavemen
range of application
TPB40 Pneumatic Jack Hammers are made of forged steel and high quality components. They are tough and robust. These features are well suited for rental industry. Developed with higher power, efficient and longer life To use air compressed as the powder and it's widly applied in the Mines, Municipal Construction, Water Conservancy Construction, etc.
Service and Support
With many years of drilling experience, we know how important it is to have the right servicing capabilities in place. Dig Sword land machine provides a complete offering of servicing, training, and maintenance programs, and has a dedicated team of global Technical Support Groups.
Call me or email me for any questions
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
TEL:86-0591-87588900
FAX:86-0591-87588900
Mobile Phone:86-13609542864(Miss Tina Yu)
E-MAIL:fzchenglong2010
SKYPE:chenglong1994
MSN:fz_chenglong
| Model | TPB-40 | TPB-60 | TPB-90 |
| Piston diameter | 44mm | 57.15mm | 66.67mm |
| Piston stroke | 100mm | 146mm | 152mm |
| Impact frequency | 900 minute/Time | 1250 minute/Time | 1400 minute/Time |
| Net weight | 18kg/39.6lbs | 30kg/60lbs | 42kg/92.4lbs |
| Total length | 660mm | 645mm | 723mm |
| Air consumption | 1.6m3/minute | 2.0m3/minute | 2.2m3/minute |
| Hose size | 19mm(3/4inch) | 19mm(3/4inch) | 19mm(3/4inch) |
| Shank specifications | 1×4-1/4 25X108 | 1×4-1/4 25X108 | 1×4-1/4 25X108 |
| Inlet size | 3/4pt | 3/4pt | 3/4pt |
| Air pressure | 0.63Mpa | 0.63Mpa | 0.63Mpa |
Product display
