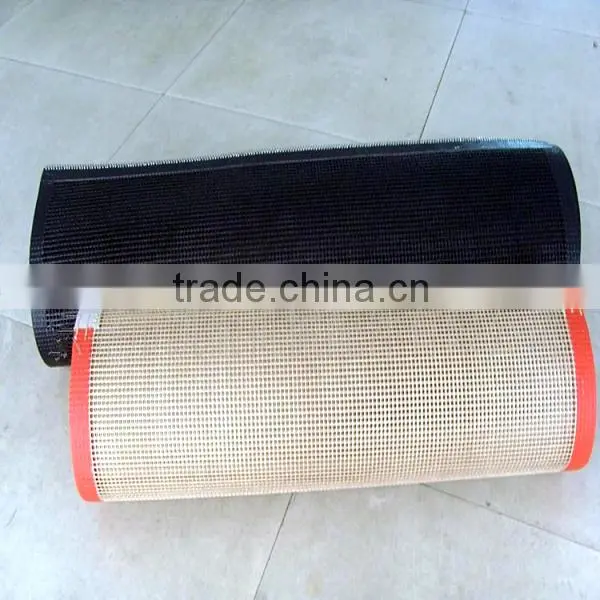

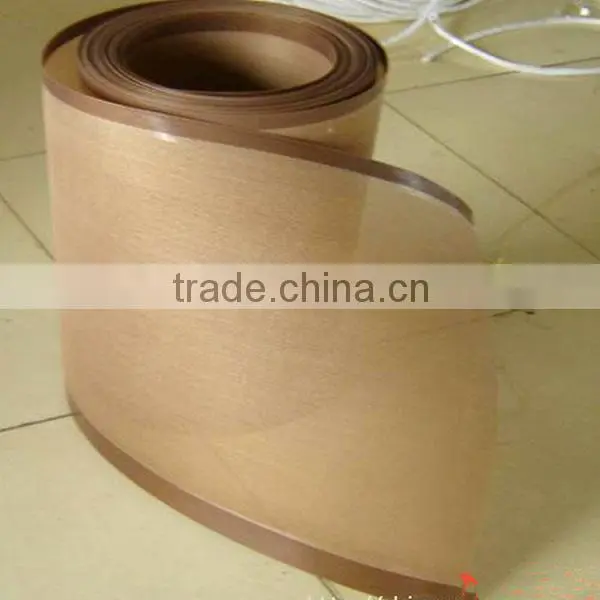

teflon coated fiberglass conveyor belt
Properties
1. Non-stick, easy release
2. Excellent thermal stability with maximum continous use temperature of 260°C / 500F
3. PTFE surfaces are unaffected by most chemicals and solvents and are chemically inert
4. Easy to clean
5. Non-toxic and food compliant
6. Very low surface friction and easy slide properties
7. Mechanically and dimensionally stable
8. Excellent heat transfer which also allows low energy consumption
9. Different thicknesses and PTFE levels available - starting from porous grade for air flow to extra high level of PTFE coating for ultra smooth finish and high dielectric strength
10. Antistatic version for static dissipation and tear resistant coating for creases resistance
11. Available on Glass, Kevlar and Nomex greige
Application:
1. Architectural - Roofing membranes
2. Composites manufacturing - Bleeder and release fabrics
3. Electronic/Electrical components - Insulation layer & bearing surfaces
4. Environment - Chemical barrier membranes
5. Energy - Expansion joint fabrics
6. Food - Cooking release sheets & process conveyor belts
7. Graphics, Printing and Textiles - Release sheets & process conveyor belts
8. Polymer processing - Release sheets & process conveyor belts
9. Packaging - Release sheets & process conveyor belts
10. Photovoltaics - Module Laminator release sheets & belts
Specifications of PTFE mesh conveyor belt
Item |
Mesh size |
Material |
Thickness |
Weight |
Temp-resistance |
Width |
Tensile strength |
M001 |
1x1mm |
fiberglass |
0.5mm |
370g/m² |
-70 to 360℃ |
4000mm |
310/290N/cm |
M002 |
2x2mm |
fiberglass |
0.7mm |
450g/m² |
-70 to 360℃ |
4000mm |
350/310N/cm |
M003 |
4x4mm |
fiberglass |
1.0mm |
400g/m² |
-70 to360℃ |
4000mm |
390/320N/cm |
M004 |
4x4mm |
fiberglass |
1.0mm |
450g/m² |
-70 to360℃ |
4000mm |
390/320N/cm |
M007 |
4x4mm |
Kevlar+fiberglass |
1.2mm |
600g/m² |
-70 to 360℃, |
4000mm |
895/370N/cm |
M008 |
4x4mm |
fiberglass |
1.0mm |
500g/m² |
-70to360℃ |
4000mm |
395/370N/cm |
M010 |
4x4mm |
Kevlar |
1.0mm |
500g/m² |
-70 to360℃ |
4000mm |
900/600N/cm |
M012 |
4x4mm |
fiberglass |
1.0mm |
550g/m² |
-70 to360℃ |
4000mm |
395/370N/cm |
M013 |
10x10mm |
fiberglass |
1.2mm |
450g/m² |
-70 to360℃ |
4000mm |
360/300N/cm |
M014 |
0.5x1mm |
fiberglass |
0.5mm |
420g/m² |
-70 to360℃ |
4000mm |
310/290N/cm |
M015 |
2x2.5mm |
fiberglass |
0.9mm |
600g/m² |
-70 to360℃ |
3000mm |
390/320N/cm |
