Specifications
ptfe mesh belt conveyor1.Fleet brand
2.heat resistant
3.keep sample same with mass goods
ptfe mesh belt conveyor
As the largest supplier in China, Fleet uses the best imported fine fiberglass or Kevlar as basic weaving material , coated with excellent PTFE resin to produce a variety of ptfe open mesh
Properties of ptfe mesh belt conveyor:
1. Good temperature tolerance,24 working temperature -140 to 360 Celsius degree.
2. Non stick,easy to clear adhesives on the suface.
3. Good chemical resistance:it can almostly resist most of chemical medicines,acids,alkalis,and salt;fireproof,lower in aging.
4. Low coefficient of friction and dielectric constant,good insulating capacity.
5. It can avoid wasting heat and improve drying efficiency for its permeability.
Application of ptfe mesh belt conveyor:
1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
2. Shrinking machine for garment fabric, high-frequency and UV dryer.
3. Hot-air dryer, various of food baking, quick-frozen machines.
4. Food processing and packing.
5. Release sheet for sticky products.
Technical data sheet of ptfe mesh belt conveyor:
Item No | Mesh size | Thickness | material | Max width | weight | Temperature |
M001 | 1*1mm | 0.5 mm | Fiberglass | 4000mm | 390g/m² | -70-360 |
M002 | 2*2mm | 0.7 mm | Fiberglass | 4000mm | 450g/m² | -70-360 |
M003 | 4*4mm | 1.0 mm | Fiberglass | 4000mm | 500g/m² | -70-360 |
M004 | 4*4mm | 1.0 mm | Fiberglass | 4000mm | 480g/m² | -70-360 |
M007 | 4*4mm | 1.2 mm | Fiberglass+Kevlar | 4000mm | 560g/m² | -70-360 |
M008 | 4*4mm | 1.0 mm | Fiberglass | 4000mm | 570g/m² | -70-360 |
M010 | 4*4mm | 1.0 mm | Kevlar | 4000mm | 460g/ m² | -70-360 |
M012 | 4*4mm | 1.0 mm | Fiberglass | 4000mm | 580g/ m² | -70-360 |
M013 | 10*10mm | 1.0 mm | Fiberglass | 4000mm | 450g/m² | -70-360 |
M014 | 0.5*1mm | 0.5 mm | Fiberglass | 4000mm | 420g/m² | -70-360 |
M015 | 2*2.5mm | 0.9 mm | Fiberglass | 3000mm | 470g/m² | -70-360 |
Specifications of ptfe mesh belt conveyor:

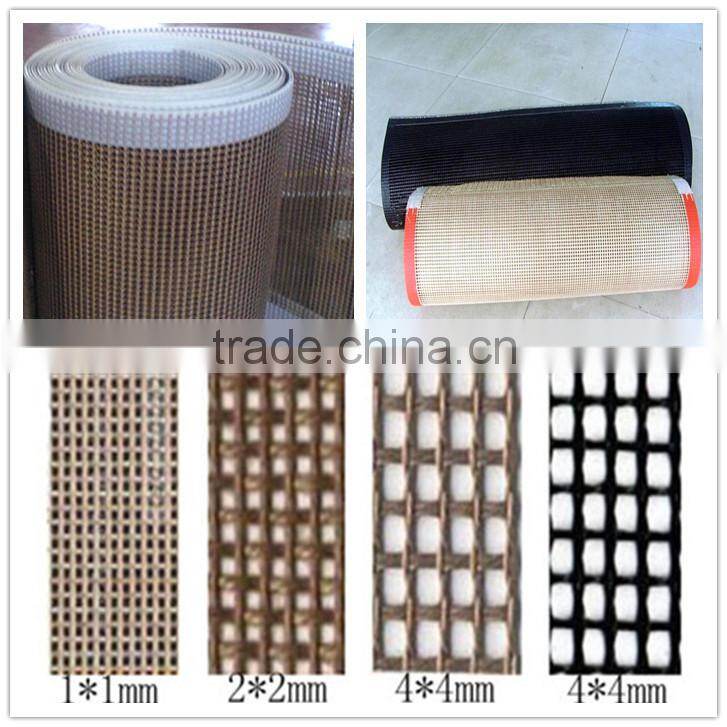

1.Mesh size:4*4mm,0.5*1mm,1*1mm,2*2.5mm,10*10mm size
2.Color: brown, black
3.Material:fiberglass +PTFE or Kevlar
4.Jumbo roll: max width 4m
5.Joint style: bull nose jont, Alligator Joint, Metal Clipper joint
Any special requirements please contact us , we can do any size of the goods according to the requirements of customers.
Product pictures:
Joint style:

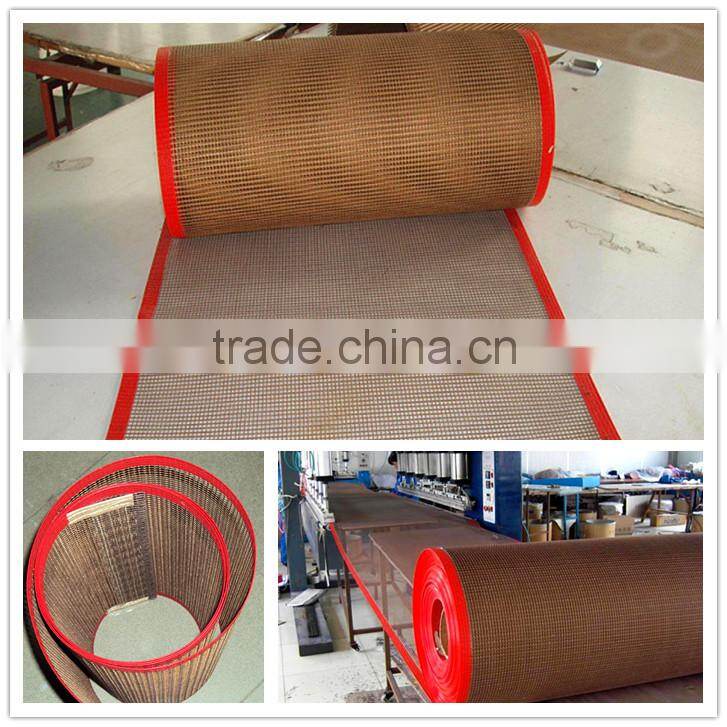

Full view:
As a manufacturer, strong R&D capacity. high quality, reasonable price and timely service are our advantages.
