Specifications
H.264 WiFi and 3G wireless NVR with P2P cloud service softwareSmart phone monitoring
Email alarm
Free CMS to 255ch ip camera

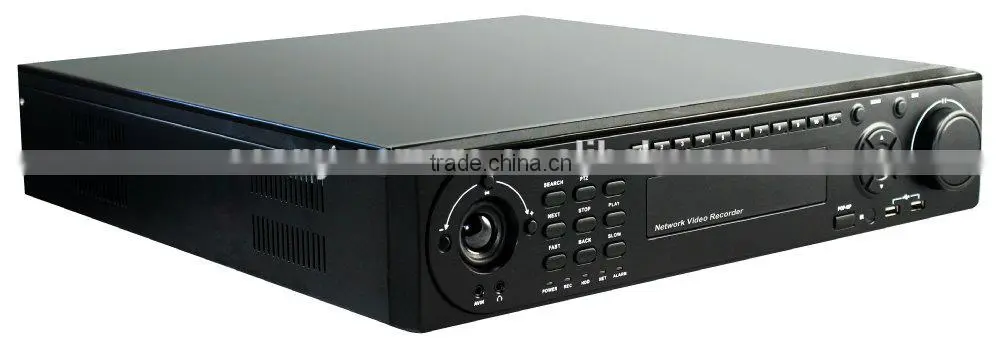

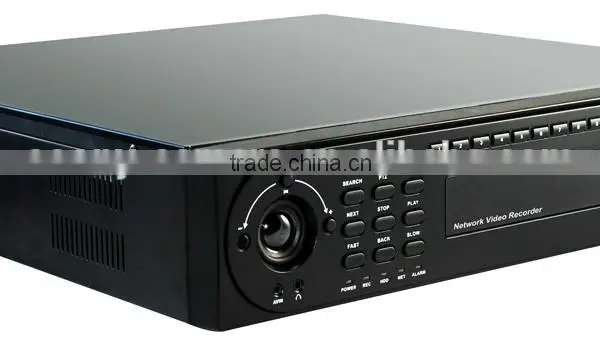

H.264 WiFi and 3G wireless NVR with P2P cloud service software
NVR menu interface:
Picture in picture function:
Multi-points auto focus to view more details:
Features:
> Support ONVIF version2.0 and above version
> H.264 codec decoding
> P2P cloud service to access IPC and NVR at any time and any place
> Smart phone monitoring, such as iPhone, iPAD, android smart phone
> Via IE, Chrome, Firefox, Safari etc. remote visit and operate NVR
> Friendly and humanized menu interface, easy to operate
> Picture in picture, view other channels at the same time
> Auto sequence live view for all channels or part of channels
> Search, playback and backup by event
> Multi-points auto focus to view more details
> Slice playback intelligent position the lost items video
> WIFI and 3G wireless connection to internet
> Email alarm, snapshot and send picture to specific email while NVR alarm
> Close any channels while playback to save resource
> Automatically select the optimal streams for different bandwidth
> Video editor, accurate and efficient backup specific video to save USB disk capacity
> Built-in ATX power supply
> Built-in fan
> With power switch
> Free CMS to manage 255 channel IP camera
> QR code scan, easy to get cloud ID and download APP for smart phone
> Multi-Language menu interface, support English, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Poland, Portugal, Romanian, Russian, Spanish, Swedish, Thai, Turkey, Vietnamese, Korean, more language can be customized.
Specifications:
Model |
IC-NVR1309 |
IC-NVR1316 |
IC-NVR1325 |
IC-NVR1332 |
Main Processor |
Hisilicon Hi3515 |
|||
Operating system |
Embedded LINUX OS |
|||
Video compression format |
H.264 |
|||
IP camera input |
9ch channel |
16ch channel |
25ch channel |
32ch channel |
Operation Mode |
live view, record, playback, backup, network |
|||
HDMI output |
1 channel, resolution: 1080P, 720P, 1440x900, 1280x1024, 1024x768,800x600 |
|||
VGA output |
1 channel, resolution: 1080P, 720P, 1440x900, 1280x1024, 1024x768,800x600 |
|||
Live view channel |
9ch 1080P simultaneously |
16ch D1 simultaneously |
25ch CIF or 9ch 1080P simultaneously |
32ch CIF or 9ch 1080P simultaneously |
Record channel |
9ch 1080P simultaneously |
16ch 1080P simultaneously |
25ch 1080P simultaneously |
32ch 1080P simultaneously |
Playback channel |
9ch 1080P simultaneously |
9ch 1080P or 16ch 720P simultaneously |
||
Record resolution |
3M/1080P/960P/720P/D1/HD1/CIF |
|||
Record model |
Manual/Schedule/Motion Detection/alarm |
|||
Record Search |
Time Point / Calendar / Event / Channel |
|||
Audio Input |
9ch IPC Composite Audio Input |
16ch |
25ch |
32ch |
Audio Output |
1CH, RCA (2.0Vp-p, 1KΩ) |
|||
Two-way Talk |
1 channel Input( Linear electrical levell , impedance : 1kΩ), 1 channel Output, RCA |
|||
Alarm Input |
9ch |
16ch |
||
Alarm Output |
4ch |
|||
Search method |
Time, Event, Channels and Calendar |
|||
Display Split |
1/4/9 channel |
1/4/9/16 channel |
1/4/9/16/25 channel |
1/4/9/16/25/36 channel |
NETWORK protocol |
TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE, NTP, FTP, ARSP,WIFI, 3G |
|||
Network |
RJ45 10M / 100M/1000M adaptive Ethernet port |
|||
Backup |
HDD, USB Flash Disk |
|||
USB |
2*USB2.0 port, 1*USB3.0 |
|||
HDD |
8pcs SATA HDD, each port support max 4TB HDD |
|||
eSATA port |
support |
|||
Power supply |
ATX100~240V,50-60Hz |
|||
power consumption(without HDD) |
≤50W |
|||
Operation temperature |
0℃-+55℃ |
|||
Operation humidity |
10%-90% |
|||
Demension(W*D*H) |
440*447*90mm (2U case) |
|||
Weight(net/gross weight) |
6.1/7.5kg(without HDD) |
|||
