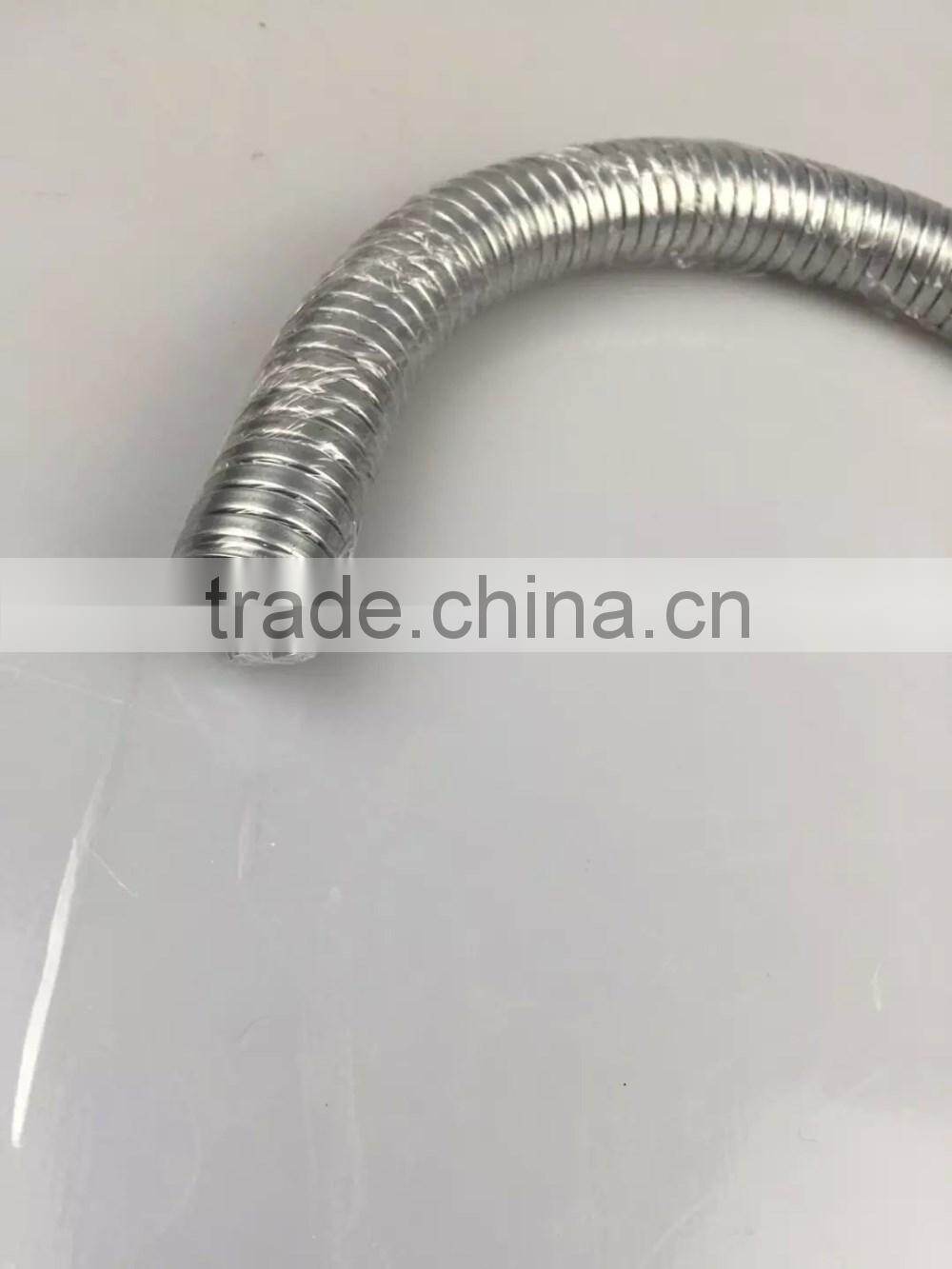

Flexible Galvanised Steel Conduit
Application:
Joint connects tube and steel pipe.
Characteristics:
Liquid Tight Connectors are Manufactured according to UL 514B specifications.
Used to bond flexible metal conduit or armored cable to a box or enclosure
1.Material: zinc alloy with zinc plated, zince die cast
2.Size is from 3/8" to 4"
3.Type: Straight type and angle type
| Standard | specification (DMA) | Thread | |||
| D | A | B | C | ||
| 3/8" | 10.6 | 32.3 | 34.7 | 12 | NPT1/2" |
| 1/2" | 13.9 | 32.3 | 33.3 | 12.3 | NPT1/2" |
| 3/4" | 18.3 | 34 | 40 | 12.5 | NPT3/4" |
| 1" | 24.2 | 43 | 46.8 | 14.8 | NPT1" |
| 1-1/4" | 32.7 | 49.9 | 58.3 | 16.8 | NPT1-1/4" |
| 1-1/2" | 37.3 | 49.3 | 65.5 | 16.8 | NPT1-1/2" |
| 2" | 48.6 | 47.2 | 77.9 | 16.4 | NPT2" |
| 2-1/2" | 59.7 | 75 | 98 | 26 | NPT2-1/2" |
| 3" | 75 | 83 | 116 | 26 | NPT3" |
| 4" | 98 | 91 | 140 | 30 | NPT4" |
| Standard | specification(DMB) | Thread | |||
| D | A | B | C | ||
| 3/8" | 10.6 | 32.3 | 34.7 | 12 | NPT1/2" |
| 1/2" | 13.9 | 32.3 | 33.3 | 12.3 | NPT1/2" |
| 3/4" | 18.3 | 34 | 40 | 12.5 | NPT3/4" |
| 1" | 24.2 | 43 | 46.8 | 14.8 | NPT1" |
| 1-1/4" | 32.7 | 49.9 | 58.3 | 16.8 | NPT1-1/4" |
| 1-1/2" | 37.3 | 49.3 | 65.5 | 16.8 | NPT1-1/2" |
| 2" | 48.6 | 47.2 | 77.9 | 16.4 | NPT2" |
| 2-1/2" | 59.7 | 75 | 98 | 26 | NPT2-1/2" |
| 3" | 75 | 83 | 116 | 26 | NPT3" |
| 4" | 98 | 91 | 140 | 30 | NPT4" |
Key Word: insulated liquid-tight connector; seal tight connectors, liquid-tight connectors; watertight connectors; watertight connectors; insulated seal tight connectors.
Packing information:plastic bags+carton box or +wooden pallet
15days or depends on the PO's qty, your urgent PO priority.
All insulated liquid-tight connector; seal tight connectors, liquid-tight connectors; watertight connectors; watertight connectors; insulated seal tight connectors could be available, and your special requirment could be made either.
Your inquiry would be welcomed.
Nanfang could also develop the mould according your requirement and do produce the items according to the mould.
