CNC Longitudinal Turning and Milling Complex Lathe Mini Drill Chucks

Name: CNC Longitudinal Turning and Milling Complex Lathe Mini Drill Chucks
Brand: HaiNa
SKU: 100450105
Availability: InStock

Taian Haina Spindle Science & Technology Co., Ltd.

US$ 35,000 - 37,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Longitudinal

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Longitudinal

CNC or Not CNC

Automatic Grade Automatic

Place of Origin Christmas Island

Brand Name HaiNa

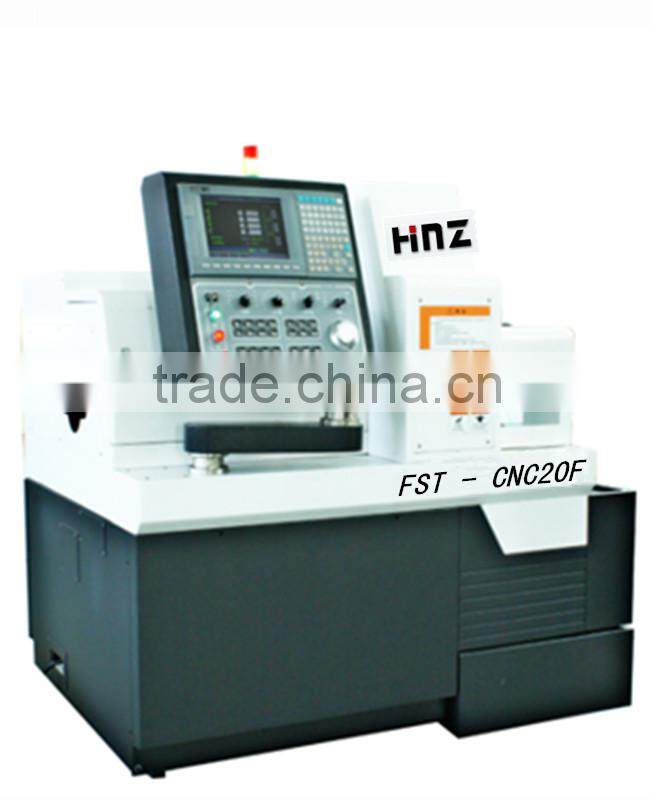

Model Number CNC-20 F

Voltage 380v

Power(W) 6kw

Dimension(L*W*H) 1380*840*1480mm

Weight 1750kg

Certification ISO:9001

After-sales Service Provided Overseas third-party support available

Specifications

1 high efficiency,reasonable structure
Precision Lathe Operations on a CNC Mill

Parts	Type Items	CNC-20F
Main Parameter	Maximum diameter of processing the bar	Φ20
	Maximum length of processing parts	170
	Maximum drilling diameter	Φ6 / Φ8
	Maximum axial tapping screw	M6/CU M8 / M6/CU M10
	Total power	6KW
Spindle Parameter	Spindle speed range	200-10000r/min
	Spindle rotatable	Infinitely variable
	Height from Spindle center to table	950mm
	Spindle motor power	3KW
Feed section Parameter	X-axis screw specifications	1605
	Y / Z axis screw specifications	2010
	X / Y axis rails Specifications	20
	Z axis rails Specifications	25
	X(with holding brake),Y,Z axis Servo motor rated torque	0.75kw
Toolholder Partial Parameters	External Turning Tool	5 pieces
	External Turning Tool Specifications	10×10×120
	Non-rotating hole processing tool	ER16(4 pieces)
	Lateral rotary power tool	ER16(4 pieces)
	Dynamic milling head Power	0.4KW
	Dynamic milling head SpeedRange	50-4000(Servo)
Others	Lubrication pump power	25W
Others	Cooling system motor power	0.25KW
