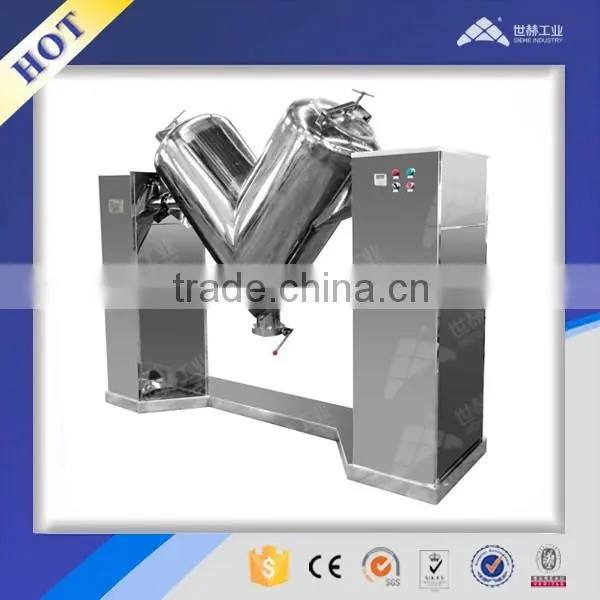

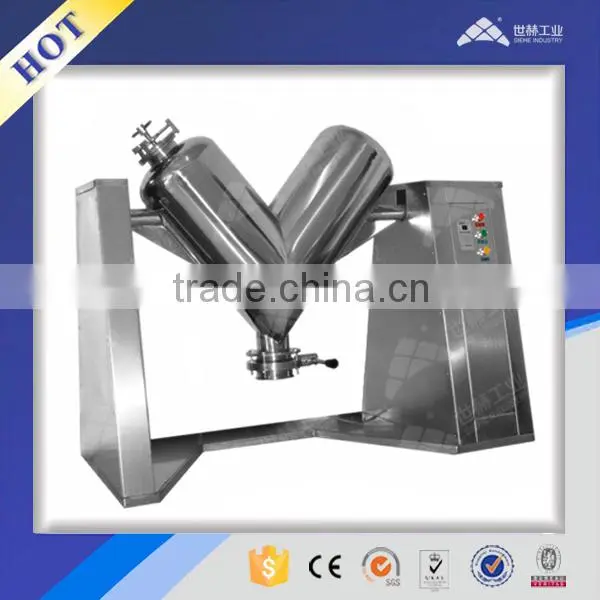

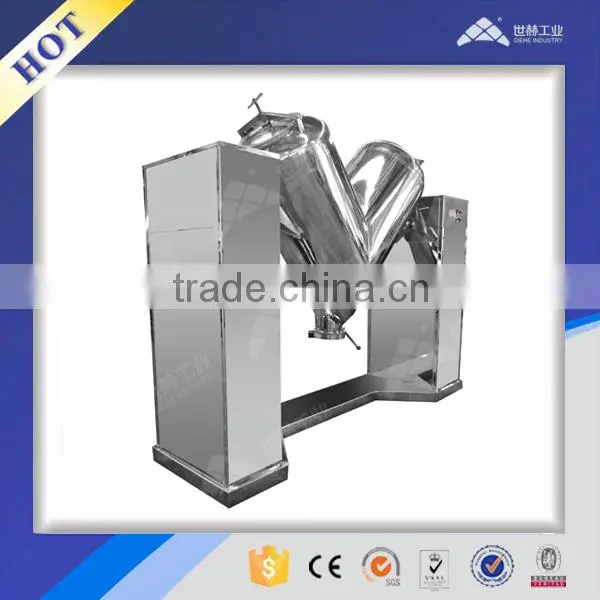

V-shape rubber powder Mixer
V-shape mixer is mainly used for powder-powder mixing, especially for materials in small batch and has high uniformity requirement. The cylinder is rotatable. The mixing process is divided into stop & feeding, start & mixing, stop & discharging, etc. Vacuum feeding device can be equipped
Working Principle
V-shape mixer consists of rotatable cylinder, support frame, driving part, etc..
The cylinder is designed as Vshape, mixing blade can be mounted inside the cylinder. Materials are lifted, dripped, mixed with the rotation of cylinder during operation, therefore no mixing dead zone
Products show
specifications
Model |
Design Volume(L) |
Capacity (L) |
Power (kw) |
Speed (rpm) |
Outlet Height(mm) |
Inlet Size (mm) |
(mm)Size |
Weight (kg) |
||
Length |
Width |
Height |
||||||||
SVX-100 |
100 |
20~50 |
1.5 |
15 |
550 |
220*100 |
1570 |
500 |
1250 |
200 |
SVX-200 |
200 |
40~100 |
1.5 |
15 |
550 |
250*150 |
1750 |
700 |
1700 |
300 |
SVX-300 |
300 |
60~150 |
2.2 |
15 |
550 |
250*150 |
1845 |
850 |
2010 |
580 |
SVX-400 |
400 |
80~200 |
2,2. |
15 |
550 |
270*150 |
2350 |
890 |
1775 |
600 |
SVX-500 |
500 |
100~250 |
2.2 |
15 |
600 |
270*150 |
2500 |
900 |
2280 |
650 |
SVX-1000 |
1000 |
200~500 |
3 |
12 |
700 |
270*150 |
2950 |
1020 |
2620 |
900 |
SVX-1500 |
1500 |
300~750 |
4 |
12 |
700 |
350*150 |
3000 |
1120 |
2900 |
980 |
SVX-2000 |
2000 |
400~1000 |
5.5 |
12 |
750 |
350*200 |
3830 |
1250 |
3360 |
1510 |
SVX-2500 |
2500 |
500~1250 |
7.5 |
12 |
750 |
370*200 |
3940 |
1640 |
3040 |
1600 |
SVX-3000 |
3000 |
600~1500 |
11 |
10 |
750 |
370*200 |
4100 |
1530 |
3730 |
1760 |
SVX-4000 |
4000 |
800~2000 |
15 |
10 |
750 |
450*400 |
4450 |
2000 |
3340 |
2100 |
WHY US
1. Nice structure, easy to operate and clean, stable working without noise.
2. High uniformity for almost all materials mixing.
3. Can be vacuumed feeding and discharged by butterfly valve to realize dust-free operation.
4. Overloading protection protect the motor and tachometer control the location of discharged material after operation.
5. In terms of materials lack of fluidity, forced agitator is in option.
6. Spray device is option to inject small scale liquid.
7. Jacket is available to heat, cool and dry materials.
