Brief introdution of Waste tyre recycling machine with CE certificate certification
Specification:

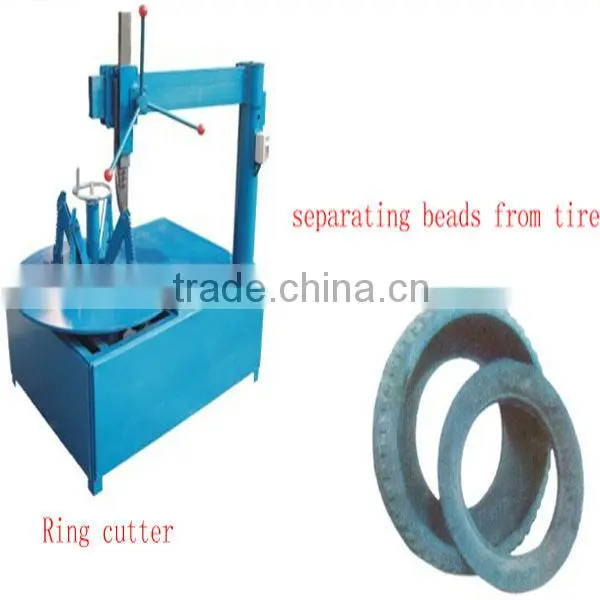

ring cutter is used for cutting used tyre into three parts,two sidewalls and one tread.
Main parameters:
| model |
motor (kw) |
processing range(mm) |
weight (kg) |
dimension (mm) |
production |
| QKF850 | 2.2 | 750-1200 | about300 | 1300*900*1480 | 2ton tire/h |
Specifications:
strips cutter is used for cutting the sidewalls and tread into rubber strips.
Main parameters:
| model |
motor (kw) |
processing range (mm) |
weight (kg) |
dimension (mm) |
production |
| QT380 | 4 | 750-1200 | 900 | 1300*750*1580 | 1ton/hour |
Specifications:
blocks cutter is used for cutting rubber strips into rubber blocks.
Main parameter:
| model | motor(kw) | processing range(mm) | weight(kg) | dimension(mm) | production |
| QK200 | 7.5 | 750-1200 | 450 | 800*810*1070 | 1ton/hour |
Specifications:
bead wire separator is to separate the whole steel circle from bead.
Main parameter:
| model | motor(kw) | Processing range | Weight(kg) | Dimension(mm) | production |
| GF240 | 15 | bead tire | 1800 |
1520*1180*122
|
30pieces/hour |
Specifications:
rubber powder producing plant(xkp series) is to crush rubber blocks into rubber powder(0.6-3mm)
Main parameter:
Type |
diameter of rollers *length(mm) |
speed ratio of rollers |
the biggest distance of two rollers (mm) |
numbers of revolutions |
motor power(kw) |
dimensions (mm) |
weight(kg) |
| XKP400 |
400*600 |
1:1.38 |
10 | 13.65 |
45 |
4210*1850*1925 |
7500 |
| XKP450 |
450*760 |
1:1.38 |
10 | 16.57 |
55 | 4550*1970*1860 |
11000 |
| XKP560 |
560*800 |
1:1.38 |
15 | 15.5 |
75 | 5620*2260*1900 |
19000 |
Specifications:
fiber separato is to separate the fiber from 20-24mesh rubber powder.
Main parameter:
| Model | Motor(kw) | weight(kg) | processing range | dimension(mm) | production |
| KF1200 | 6.25 | 1800kg | rubber powder | 1460*1500*4200 | 500kg/h |

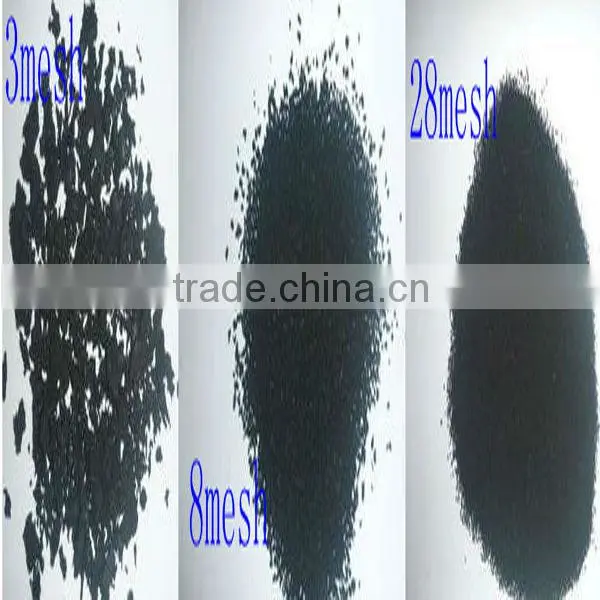

output got by rubber machine,
Application example of rubber powder,
1.Rubber products(safety cushion,road islation barrier,rubber tube,rubber sheet,rubber sole)
2.Auto industry(tire,vibration absorbing material,shock absorber)
3.Athletic sports ground(runway,rubber title,court)
4.Building material(rubber tile,rubber floor brick,waterproof)
5.Road engineering and bitumious road surfacing(to be mixed with asphalt,be used for surfacing roads or underground railway)
The requirements of setting up a factory(capacity:1000-2500ton/year)
1.the area of factory:110m2-300 m2 (width>7m,lengh>15m,height>4m)
2.electricity:transformer(>100KV)
3.number of workers:2-9
4.invesment to equipments:100,000 RMB-300,000RMB,circulating funds is not limited.
5.noise:80db
About Xinyutian
Xinxiang Xinyutian Rubber&Plastic Machinery Co.,ltd locates in the important industry area of Yubei.Our enterprise is dedicated to research and develop waste tire recycling equipments containing tyre cutters,tyre shredder,tyre crusher and waste tyre recycling rubber powder plant.our machines have been sold all over the world,what is more,we got great feedback from our customers in Asia,Central Asia,North Europe and South America.

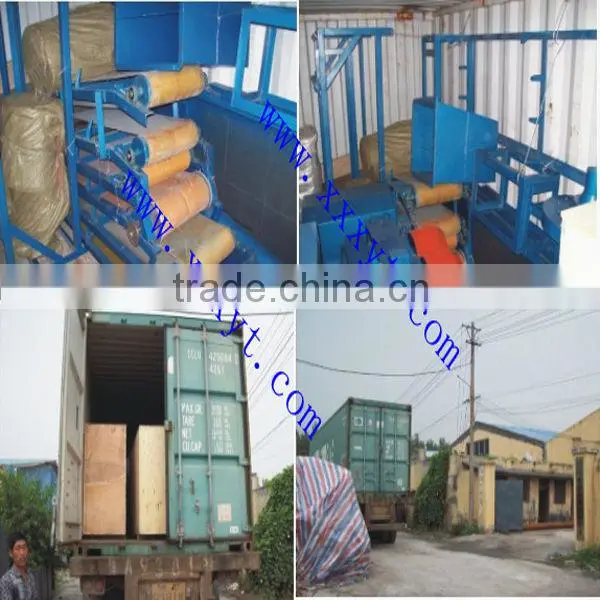

Rich experience for dispatch to abroad,
We have exported Waste tyre recycling machine for making rubber powder (QKF850,QT380,QK200,GF240,XKPseries,KF1200) to India,Indonesia,Malaysia,Pakistan,Kwait,Qatar,Saudi
arabia,Iran,Uz,Russia,Mexcio,Brzail,Australia by 40'container,40'HQ,open 40'container .
