Specifications
tire broken machine1.semi-automatically
2.inspected by professional staff
3.15 years normal life
About Xinyutian
Xinxiang Xinyutian Rubber&Plastic Machinery Co.,ltd locates in the important industry area of Yubei.Our enterprise is dedicated to research and develop tire recycling rubber powder plant.our machines have been sold all over the world,what is more,we got great feedback from our customers in Asia,Central Asia,North Europe and South America.
Advantages of Xinyutian
1.special manufacturer that has professional producing team and technical support
level sale teams to communicate with clients by email,telephone,face to face.
fessional explanation to clients about machines(techonogy,apply,using guide and so on)
4.best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur.
5.reasonable price
6.flexible delievery time
7.more than 15 years of experience of exporting ability
Brief introdution of Professional tire broken machine
Specification:
ring cutter is used for cutting used tire into three parts,two sidewalls and one tread.
| model |
motor (kw) |
processing range (mm) |
weight (kg) |
dimension (mm) |
production |
| QKF850 | 2.2 | 750-1200 | 300 | 1300*900*1480 | 2ton tire/h |
Specifications:
strips cutter is used for cutting the sidewalls and tread into rubber strips.
| model |
motor (kw) |
processing range (mm) |
weight (kg) |
dimension (mm) |
production |
| QT380 | 4 | 750-1200 | 900 | 1300*750*1580 | 1ton/hour |
Specifications:
blocks cutter is used for cutting rubber strips into rubber blocks.
| model | motor(kw) |
processing range (mm) |
weight (kg) |
dimension (mm) |
production |
| QK200 | 7.5 | 750-1200 | 450 | 800*810*1070 | 1ton/hour |
Specifications:
bead wire separator is to separate the whole steel circle from bead.
| model | motor(kw) | Processing range | Weight(kg) | Dimension(mm) | production |
| GF240 | 15 | bead tire | 1800 |
1520*1180*122
|
30pieces/hour |
Specifications:
rubber powder producing plant(xkp series) is to crush rubber blocks into rubber powder(0.6-3mm)
Type |
diameter of rollers *length(mm) |
speed ratio of rollers |
the biggest distance of two rollers (mm) |
numbers of revolutions |
motor power(kw) |
dimensions (mm) |
weight (kg) |
|
XKP400 |
400*600 |
1:1.38 |
10 |
13.65 |
45 |
4210*1850*1925 |
7500 |
|
XKP450 |
450*760 |
1:1.38 |
10 |
16.57 |
55 |
4550*1970*1860 |
11000 |
|
XKP560 |
560*800 |
1:1.38 |
15 |
15.5 |
75 |
5620*2260*1900 |
19000 |
Specifications:
fiber separato is to separate the fiber from 20-24mesh rubber powder.
| Model | Motor(kw) | weight(kg) | processing range |
dimension (mm) |
production |
| KF1200 | 6.25 | 1800 | rubber powder | 1460*1500*4200 | 500kg/h |
Professional tire broken machine
final products,
Application example of rubber powder
1.Rubber products(safety cushion,road islation barrier,rubber tube,rubber sheet,rubber sole)
2.Auto industry(tire,vibration absorbing material,shock absorber)
3.Athletic sports ground(runway,rubber title,court)
4.Building material(rubber tile,rubber floor brick,waterproof)
5.Road engineering and bitumious road surfacing(to be mixed with asphalt,be used for surfacing roads or underground railway)
The requirements of setting up a factory(capacity:2500-5000ton/year)
1.the area of factory:110m2-300 m2 (width>7m,lengh>15m,height>4m)
2.electricity:transformer(>100KV)
3.number of workers:2-9
4.invesment to equipments:100,000 RMB-300,000RMB,circulating funds is not limited.
5.noise:80db

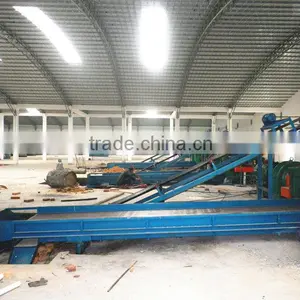

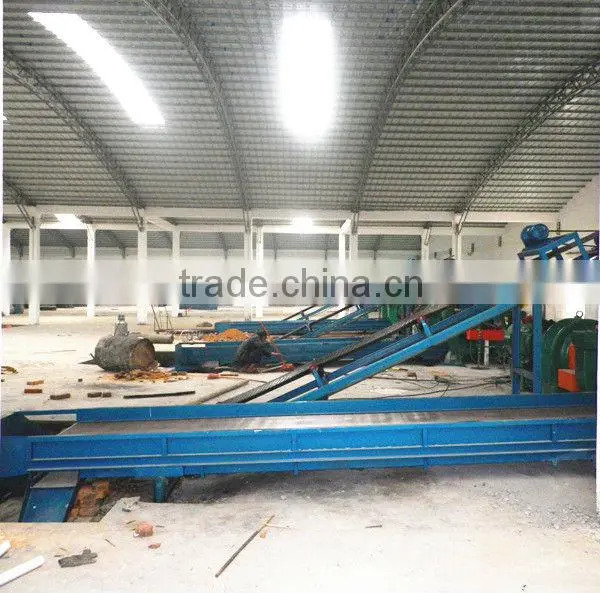

Dispatch photoes from factory
we export to India,Indonesia,Malaysia,Pakistan,Kwait,Qatar,Saudi arabia,Iran,Uz,Russia,Mexcio,Brzail,Australia by 40'container,40'HQ,open 40'container .
