New generation Oil refining OTR tire cutting machine for pyrolysis

---Solutions to doubts

Is there large quantites of  waste OTR tires stocked in your country?

have you think up of any ways to process them?is it too hard to process the same?

now OTR tire recycling machines can help you to deal with them within least costs and labors.

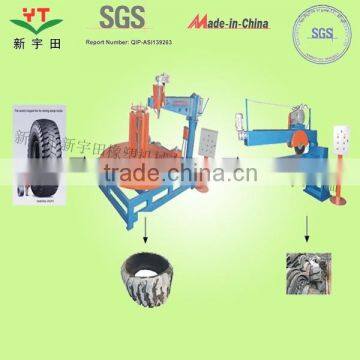

---2015automatically OTR tire cutting machine

is to separate 2 rings(sidewalls) from OTR tire.

Structure:

this machine is made up of rotary plate,rotary gearing,locking device,fix tire bead device,beam,wheel,blade working device.

Main parameter:

(1)model: QKF2400

(2)process range:1600-2400mm(max diamter<4000mm can be processed)

(3)equipped with power:three phrase four line 380V 50Hz

(4)motor power: 7.91KW

(5)capacity:3-10pieces/h

(6)weight:about 1500kg

(7)size: 2900×2400×2630mm(l*w*h)

main advantage:

1.single electric cabinet to control whole operating process

2.automatically cooling water device

3.automatically cutting process,no harm to labors

4.foundation can be made to cover machine for removing tire easily

---2014 OTR tire cutting blocks machine is to cut OTR tire into some pieces.

Structure:

this machine is made up of rotary beam,blade working device,cooling water device.

Main parameter:

(1)model: QG1000

(2)process range:1600-2400mm(max diamter<4000mm can be processed)

(3)equipped with power:three phrase four line 380V 50Hz

(4)motor power: 5.87KW

(5)capacity:3-10pieces/h

(6)weight:about 1200kg

(7)size: 2500×1000×1800mm(l*w*h)

main advantage:

1.single electric cabinet to control whole operating process

2.automatically cooling water device

3.automatically cutting process,no harm to labors

4.foundation can be made to cover machine for removing tire easily
