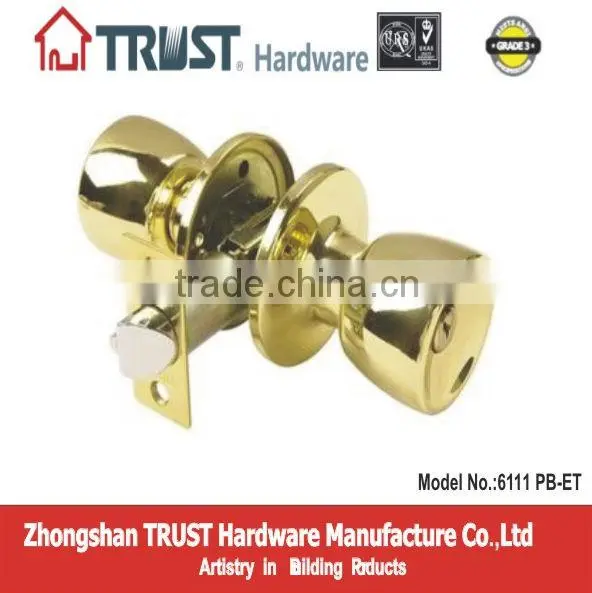

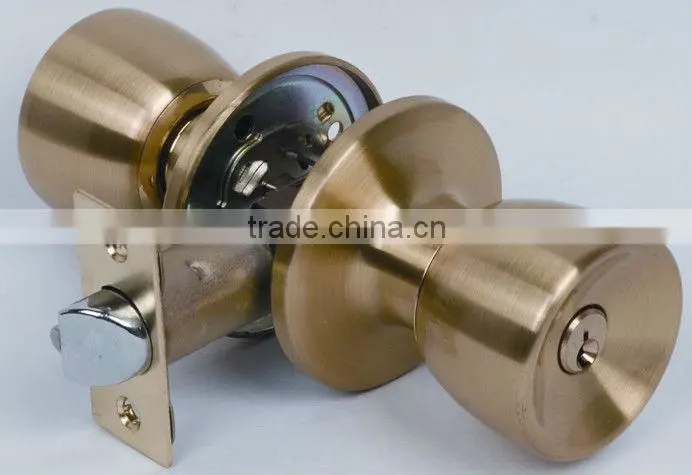

ANSI Grade 3 Tubular adjustable Latch Entry door knob lock

Specifications

Grade 3 Tubular adjustable Latch Entry door knob lock
60-70mm adjustab Latch
Brass cylinder
door thick:35-50mm

Grade 3 Tubular adjustable Latch Entry door knob lock


ANSI Grade 3 Tubular Knob Lockset

• Structure: 304 stainless steel or Solid brass construction.
• Function: 1-Entrance, 2-Privacy, 3-Passage, 4-Storeroom, 5-Classroom, 0-Dummy are available.
• Finish: SS, PSS, PB, SB, AC, AB, CP, PVD, US15A, or required.
• Rosette: Small Rose (65mm) as standard, M (70mm) & L (75mm) also available.
• Keyway: KW1 (Kwikset) , SC1 (Schlage) , WR5 (Weiser) , Yale, C4 or special required.
• Door thickness: Fit doors 35mm (1-3 / 8") to 50mm (2") thick, easy to install.
• Latch bolt: 60mm (2-3 / 8") ~70mm (2-3 / 4") Adjustable latch as standard;
  Re-changeable Latchlate, Square corner as standard, Radius corner special request.
  6 way latch (Fits 2-3 / 8" and 2-3 / 4" backset latch bolt + Square corner & 1 / 4" Radius Latch plate with re-changeable Type + Square & Radius Strike Plate, both required)
• Pack: WBX (White Plain Box) ; CBX (Colorful Box) ; or VP (Clam Shell) .









Other Tubular Knob Lock Populr in many different markets

We are Pround of our High quality Products!!









If you are interested in any of our products,pls feel free to contact me,E-catalog and favourable price will be ready for you!
