Home > Products > Mortise Cylinder > A65SN-B01:Trust 65mm Euro Profile Brass Mortise Cylinder With Turn Knob

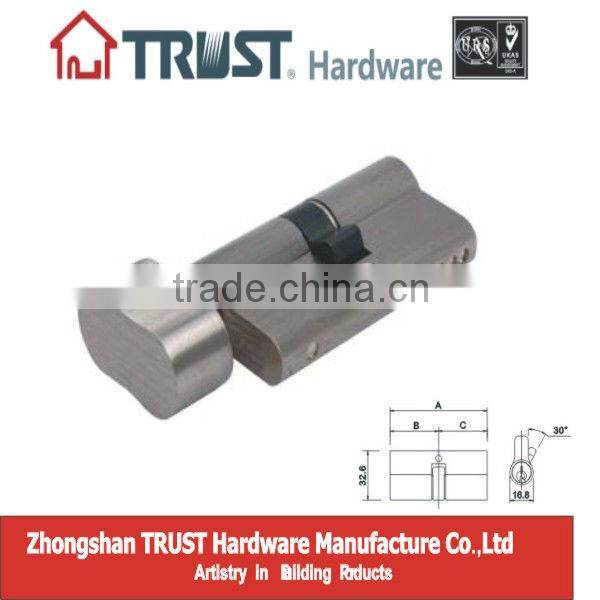

A65SN-B01:Trust 65mm Euro Profile Brass Mortise Cylinder With Turn Knob

Name: A65SN-B01:Trust 65mm Euro Profile Brass Mortise Cylinder With Turn Knob
Brand: TRUST
Availability: InStock

FOB Price

US$ 1 - 100 / Set

600 Sets(Min. Order)

Port Zhongshan GD
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	TRUST
Model Number	A65SN-B01

Product Description

Specifications

Mortise Cylinder
Different size optional
Brass material
Standard Key or computer key optional
Durable and High Security.

Mortise Cylinder

Item:A65SN-B01

"A" mean Standard key ; "B" mean Computer key

"65" mean Length

"SN" mean Finish

"B01"mean Type of Turn Knob

Single Cylinder With Turn Knob B01

Dimesion			CODE
A	B	C	Standard Key	Dimple Key
60	30	30	A60SN-B01	B60SN-B01
65	32.5	32.5	A65SN-B01	B65SN-B01
71	35.5	35.5	A71SN-B01	B71SN-B01
75	37.5	37.5	A75SN-B01	B75SN-B01
80	40	40	A80SN-B01	B80SN-B01
85	42.5	42.5	A85SN-B01	B85SN-B01
90	45	45	A90SN-B01	B90SN-B01

The name classification of the lock cylinder.

In accordance with DIN 18 252/09-1999 and EN 1303 standard,continental cylinders are divied into three quality grades:

By the number of pins Grade I & II: 5 pins ; Grade III:6 pins

Key differ rate

Grade I & II: 1/30000 Grade III: 1/100000

European standard cylinder with multiple device for the maximum security purpose,in addition to the above number and combinnation of differentpins,there are also some more methods as follows:Anti-drilling protection protection against demolition Increase the security pin.

Note:the above structure is common functon,if customer need special enhanced security performance requirements or other special needs,please specify when ordering.

Determination of the cylinder length

1,The total length of cylinder = door thickness + thickness of the fitting on the outside + thickness of the fitting on the inside

2,Cylinder is equal sides cylinder if it is fitted in the middle of door.

3,Cylinder in unequal sides cylinder if it is notin the middle of the door,

4,The cylinder must protrude only max 2-3mm from the fitting on the outside and inside.

Other kinds of our HOT SELLING brass Mortise Cylinder;

1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.

2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.

3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They will give you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.

4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.

If you are interested in any of our products,pls feel free to contact me,E-catalog and favourable price will be ready for you!!!
