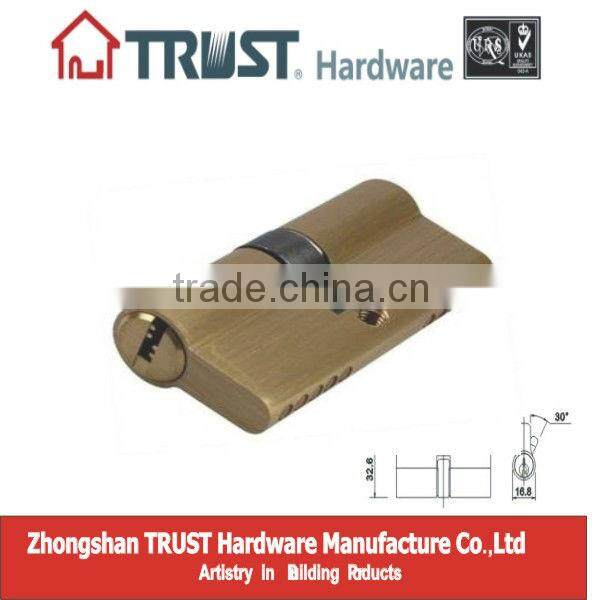

B60SB:Trust Euro Profile Brass 60mm lock cylinder

Specifications

60mm lock cylinder.
Different size optional
Brass material
Standard Key & computer key optional
Durable & High Security.

60mm lock cylinder


Item:B60SB



"A" mean Standard key ;  "B" mean Computer key



"60" mean Length



"SB" mean Finish









60mm Euro Profile Double Mortise Cylinder
Different size optional.

Dimension			CODE
A	B	C	Standard Key	Dimple Key
60	30	30	A60SB	B60SB
65	32.5	32.5	A65SB	B65SB
71	35.5	35.5	A71SB	B71SB
75	37.5	37.5	A75SB	B75SB
80	40	40	A80SB	B80SB
85	42.5	42.5	A85SB	B85SB
90	45	45	A90SB	B9SB





The name classification of the lock cylinder.

In accordance with DIN 18 252/09-1999 and EN 1303 standard,continental cylinders are divied into three quality grades:

By the number of pins Grade I & II: 5 pins ;   Grade III:6 pins

Key differ rate

Grade I & II: 1/30000    Grade III: 1/100000

European standard cylinder with multiple device for the maximum security purpose,in addition to the above number and combinnation of  differentpins,there are also some more methods as follows:Anti-drilling protection protection against demolition Increase the security pin.

Note:the above structure is common functon,if customer need special enhanced security performance requirements or other special needs,please specify when ordering.





Determination of the cylinder length

1,The total length of cylinder = door thickness + thickness of the fitting on the outside + thickness of the fitting on the inside

2,Cylinder is equal sides cylinder if it is fitted in the middle of door.

3,Cylinder in unequal sides cylinder if it is notin the middle of the door,

4,The cylinder must protrude only max 2-3mm from the fitting on the outside and inside.
