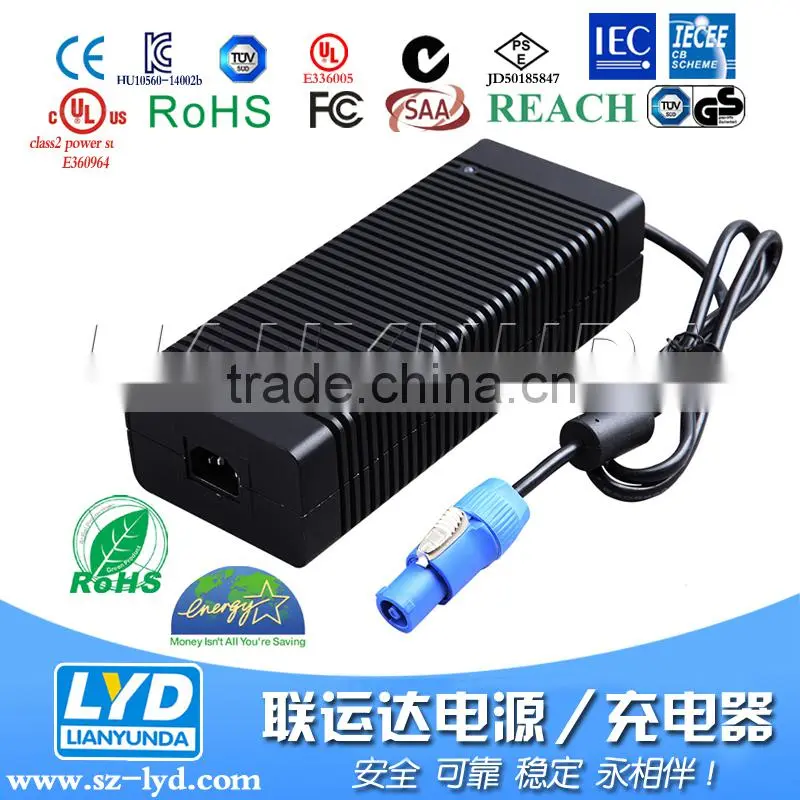

300W Swithing Power Supply 48V Adapter With CE Approval 300w Power Adapter

US$ 50 - 67 MOQ: 1000 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LYD

Model Number:

LYD4806250UF

Shenzhen Lianyunda Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LYD

Model Number LYD4806250UF

Output Type DC

Connection Desktop

300W Swithing power supply 48V Adapter with CE approval 300w power adapter

Oupt power range	24V5A 24V6A 24V6.24A 24V12.5A (also have those models for selection)
The adapter size	2329358mm
The adapter weight	920g/pcs
Input Rated Voltage	100Vac~240Vac
Input Frequency Range	50Hz~60Hz
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Efficiency	80%(MIN)at Rated Voltage
DC Output Voltage	24V± 5% (option)
DC Output Current	12.5A (optional)
DC Output Power	300w (optional)
Leakage Current	less than 5mA
Standby power	less than 0.5w
DC connector	5.52.110mm (optional)
DC cable	1.2m 2464UL 16AWG cable (optional)
Ripple and Noise	less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time	less than 3S (AC:110V and full load)
Certificates	CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	output voltage protection (150%-180% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +40°C
Safety Standard	EN336005 Class 2 ESD (EN61000 3-3)
	CAS (60950 ITE/TE) FCC Part 15 subpart B Class B
	ISO 9001: 2008
