Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

General information for the  Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

Detailed components introduction for the Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

1.. Manual Decoiler of the Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

1):coil inner diameter:  450-550mm
2):coil max width: 1250mm
3):max carrying capacity: 5000kg
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system

Hydraulic fully automatic style is optional

2.. Coil feeding part of the Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.

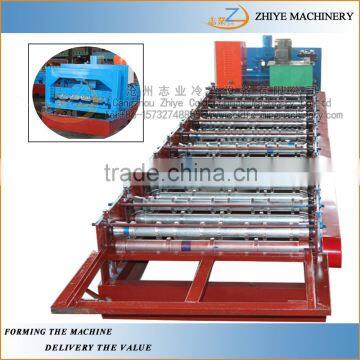

3.. Main roll forming machine part of the Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

  shaft material: solid shaft(not hollow style), around 70kg/pc, to make sure the strength of it.and final profile shape are perfect in this way.
  shaft diameter: normally is 72mm.
2).power: normally 7kw in total
3).transmission model: gear and chain
4).controlling model: PLC controlling system, fully automatic.
5).Forming speed: 0-17m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor
reducer drive, chain transmission,roller was chromed which can keep the molding plate surface
smooth and not easy to be marked when it is working

4.. Automatic cuttting system of the  Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

1).Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or
wasting, high level safety factor.
It adopts the hydraulic drive and automatic encoder to cut the accurate length you set on the computer.The tolerance is within 10m±1mm
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine

5.. Computer controlling part of the Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

1).PLC brand: Normally, it is Delta. Mistubishi, Panasonic, Siemens are optional.
2).working model: fully automatic and manaul
3).working language: normally are English, Chinese,Russia. Can be set as per your requirements.
↑

6. Hydraulic station of the Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine

1).including one motor,one oil tank,one magnetic valve,one pressure gage, hydraulic oil tube
2).3kw,4kw,5.5kw,will be adopted as per your profile sheet.

Galvanised Metal Roofing Sheet Production Line/ IBR Sheet Making Machine can be packed into one 20 feet or 40 feet container. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.

Service:

Technology  R&D

We have R&D centers and innovative designing teams for different kinds of production  lines.

Quality Control

We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.

After Sale Service

Warranty period 2 years , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.

Inspection

Inspected by the Sellers

After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.

Inspected by the Buyers

After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.

 Cangzhou Zhiye Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.
