Round knife cloth cutting machines
- 1000 Set / Sets per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- CZD-103 KM cutting machine straight knife cloth cutting machine Quality Choice
- UNDB-2 top quality semi automatic cloth end cutter price Quality Choice
- UNDB-1 fabric cutting machine manual cloth end cutter
- UNDB-3 fully automatic end cutter fabric cutting machine Quality Choice
- ES950 embroidery and sewing machine
- JH2600 UNIQUE brand new multifunction sewing machine household
Product Details
Condition: | New | Application: | Light to medium heavy material | Automatic Grade: | Automatic |
Production Capacity: | 1000 sets/week | Place of Origin: | China | Brand Name: | UNIQUE |
Model Number: | RSD-90/100/110/125 | Voltage: | 110V/220V | Power(W): | 300W |
Dimension(L*W*H): | 353*263*177 (mm) | Weight: | 3 kgs | Features: | Patented |
Certification: | CE certified | Warranty: | 1-year | After-sales Service Provided: | Overseas service center available |
Packaging Details
Carton
RSD-100 round knife cloth cutting machine
Product Description
Round knife cloth cutting machine machine
Specifications:
Model | RSD-90 | RSD-100 | RSD-110 | RSD-125 |
Blade size | 90mm | 100mm | 110mm | 125mm |
Cutting ability | 24mm | 27mm | 32mm | 40mm |
Power: | 200W | 245W | 250W | 350W |
Voltage: | 110V/220V 50/60HZ | |||
N.W./G.W. | 11/14kgs - 5pcs | 17/19kgs - 5pcs | 17/19kgs - 5pcs | 16/19kgs - 4pcs |
Measurement: | 72.5*32*30mm - 5pcs | 57*37*46.7mm - 5pcs | 57*37*46.7mm - 5pcs | 65*38*39mm - 4pcs |
Features:
Lower blade mechanism and round shaped circular knife. It gives you a really beautiful cut; the achievement of the round knife and the carbide tipped and spring loaded lower blade prevents a single piece clogging of the knife or coming in contact with the machine parts. EXtra thin base plate - an cxclusive extra thin base plate guarantees a precision and a smooth cutting by non-slipping out of the works.
High power electoric motor - the high performance electric motor backed by km's own technology provides and exclusive high power. the air-guide system keeps the motor bears litte heat. Automatic knife re-sharpening system - resharpenning of knife edge is automatic by pushing a spring loadedprojection switch. the system is also designed for easy replacement of grinding wheel.
Wide range of application:
It is able to cut various material, such as cotton, wool, linen, silk, chemical fiber, etc.

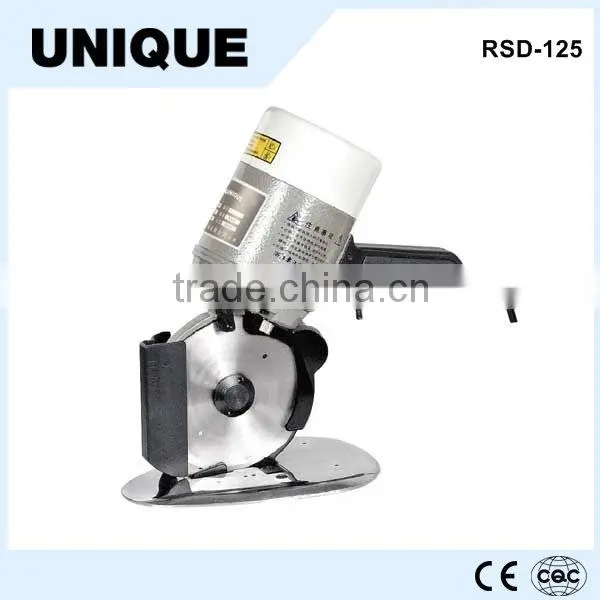

Model_NO. | Photos |
RSD-90 | |
RSD-100 RSD-110 | |
RSD-125 |
Equipped with auto-sharpening device and auto-lubricating system; Ease of operation makes it ideal for garment industry.
