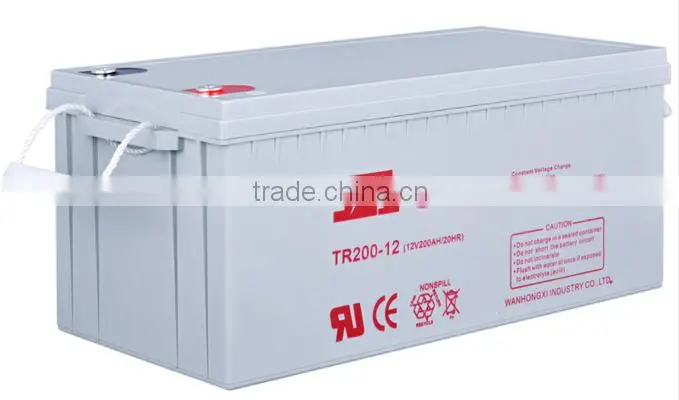

Long life deep cycle gel battery 12v 200ah maitenance free battery for solar power system
- 1000 Piece / Pieces per Month
- Guangzhou
- T/T Credit Card
- Passenger 3 wheels motorcycle batteries ,12V18Ah three wheel bike battery
- motorcycle batteries battery 12v 18ah
- best price lead acid motorcycle rechargeable battery 12v 18ah
- 12v 18ah motorcycle battery 12v lead acid motorcycle battery motorcycle battery parts
- 12v 18ah high performance dry charged motorcycle battery
- 12N18-3A 12V 18Ah motorcycle battery
Product Details
Place of Origin: | Guangdong, China | Brand Name: | TREE | Model Number: | TR 12V 200AH |
Usage: | Other, UPS, Solar, Wind etc | Voltage: | Other, 12v | Sealed Type: | Sealed |
Maintenance Type: | Free | Size: | 522L*240W*242H mm | Weight: | 60kg |
Nominal Capacity: | 200ah |
Product Description
Wanhongxi Industry Co., Ltd is a leading manufacturer and exporter of Battery.
Quality Control System of Wanhongxi applies the most advanced equipments and continual improved artworks to organize the production process.
The QC department consists of IQC,IPQC, QA, QE, OQC, laboratory and testing which strictly meets ISO9001 quality system requirements from in-house material to batteries out warehouse to make sure the products are under the strict audit in the whole process.
The defective rate is below 0.1%. Meanwhile, Wanhongxi takes analytical pure material to make sure the batteries with high quality, long life, low self-discharge advantages.
Long life deep cycle gel battery 12v 200ah maitenance free battery for solar power system
Bttery Type: AGM, Deep Cycle, GEL type
Warranty: 3 Years
Exact short deliver time
12v 200ah solar battery
white battery with copper terminal
12v 200ah solar battery
black battery with copper terminal
Parameter of 12v 200ah BATTERY: | ||
Nominal Voltage | 12V | |
Rated Capacity (10 hour rate) | 200AH | |
Size (Length*Width*Height*Total Height) | 522*240*216*240MM | |
Weight Approx | 60.0KG | |
Capacity 25°C (77°F) | 10 Hour Rate(9.0A) | 200AH |
5 Hour Rate(14.4A) | 160AH | |
1 Hour Rate(54.0A) | 120AH | |
1.5 Hour Discharge To 10.5V | 80A | |
Internal Resistance | Full Charged Battery at 25°C(77°F) | 3.8mΩ |
Capacity Affected By Temperature (10 Hour Rate) | 40°C(104°F) | 102% |
25°C(77°F) | 100% | |
0°C(32°F) | 85% | |
-15°C(5°F) | 65% | |
Self-Discharge at 25°C (77°F) | Capacity after 3 Month Storage | 91% |
Capacity after 6 Month Storage | 82% | |
Capacity after 12 Month Storage | 64% | |
Terminal | T11 | |
Cycle Charge (Constant Voltage) | Initial Charging Current Less Than 80A | |
Voltage 14.40-14.80V (Time 14-16h) | ||
Float Charge (Constant Voltage) | Voltage 13.50-13.80V | |
Warranty | 3 Years | |
OEM Service | Accept | |
Color | Black, Gray, white | |
Certificate | CE; ISO9001; MSDS |
TREE BRAND LEAD ACID BATTERY FOR UPS/SOLAR SYSTEM
- Material Grade A original lead , purity near 100%
- Production time make lead plate ourself , delivery time about one week
- Price We are big factory and prodce lead plate instead of purchasing, so can control the cost ,quality and production time easily.
- Technology advanced welding machine ,not easy shourt-circuit ,ensure batteries long life.
- Quality All batteries should be tested 5 times before packing to ensure quality OK.
- Package professional workers ; Non fumigation pallets can be exported to all countries .
- Low self-dischargeThe use of analytically pure sulphuric acid electrolyte and reasonable arrangement of special additives can effectively reduce the self-discharge speed of the batteries.
- High safetyThe efficient safety valve made of imported rubber is durable, ageing resistant and corrosion resistant that can effectively ensure the safety of internal pressure of the products in use.
- Economical and practical The extremely high performance, long service life and low maintenance combined to make Tree batteries as
- Maintenance free As it is value-regulated .sealed and glass mat is utilized .acid GEL is trapped inside . so refilling is not needed and is leak proof.
- Longer service life Utilized thick and massive calcium grate ensure that TREE battery has a longer service life over 15years .
Solar Energy System & Wind Energy System
- Uninterrupted Power Supply system(UPS)
- Telecommunication system
- Alarm and Security system
- Emergency Power Supply system(EPS)
- Emergency Lighting System & Small Lamps
- Medical Equipments
- Power plant
- bank system
- computer system
- Power tools
- Home
- etc.

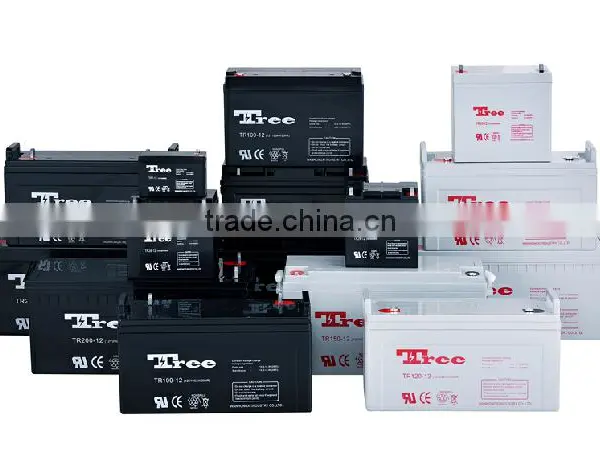

Our factory have various models vrla battery with 2v, 6v, 12v with agm, deep cycle and gel type, such as solar battery,solar gel battery, solar panel battery, inverter battery, lead acid battery, valve regulated battery , ups battery, backup battery etc
MODEL | Size(MM) | Weight(KG) |
12v 1.2Ah | 97*43*52*58 | 0.56 |
12V 2.3AH | 178*35*61*67 | 0.82 |
12V 7.2AH | 151*65*95*100 | 2.15 |
12V 12AH | 151*98*95*100 | 3.6 |
12V 18AH | 181*77*166*166 | 5.3 |
12V 20AH | 181*77*166*166 | 5.6 |
12V 26AH | 175*166*125*125 | 7.3 |
12V38AH | 197*166*174 | 10.70 |
12V50AH | 230*138*211 | 13.70 |
12V68AH | 350*166*179 | 20.5 |
12V100AH | 331*173*213 | 29.00 |
12V 110AH | 407*171*238 | 34.5 |
12V120AH | 407*174*209 | 35.00 |
12V150AH | 484*171*241 | 41.5 |
12V200AH | 522*240*218 | 58 |
12V 255AH | 520*269*203 | 70.50 |
M
About Long life deep cycle gel battery 12v 200ah maitenance free battery for solar power system , for more detail ,just tell us and glad help !
If possible, welcome visit our factory!
