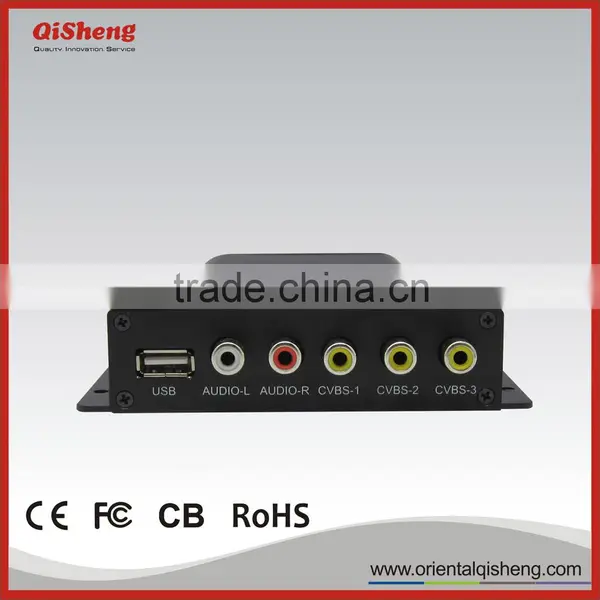

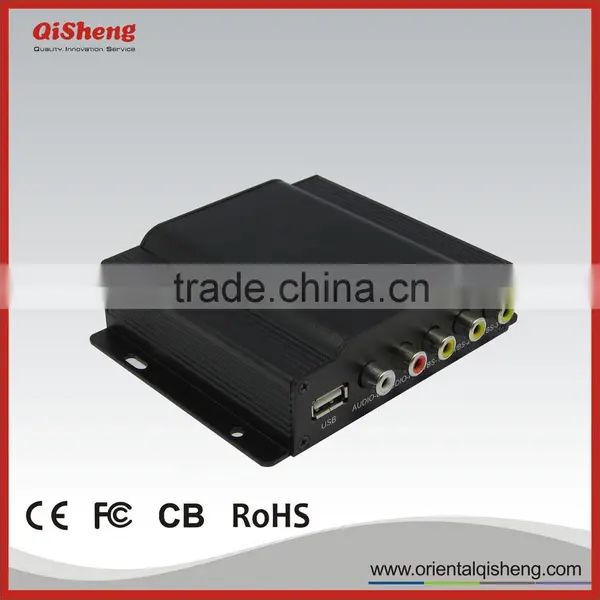

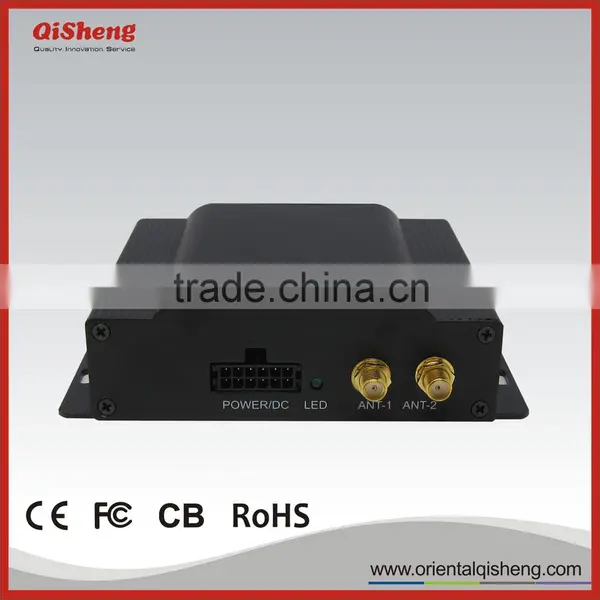

Car Converter ISDB-T Full Seg TV BOX
US$ 40 - 60
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
CT- 515
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Car Isdb-t tv Tuner Receiver Box ISDB-T Full Seg Set Top BOXUS$ 40 - 50MOQ: 500 Pieces -
ISDB-T Full Seg tv Receiver /tv Box ISDB-T CarUS$ 40 - 60MOQ: 1000 Pieces
-
Car Digital tv Converter ISDB-T Full Seg Set Top BOXUS$ 40 - 60MOQ: 1000 Pieces
-
Car Digital tv Tuner ISDB-T Full Seg Set Top BOXUS$ 40 - 60MOQ: 100 Pieces
-
Car Digital tv Receiver ISDB-T Full Seg TV BOXUS$ 40 - 60MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
CT- 515
| Feature : | ||||||||
| Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant | ||||||||
| Signal receiving sensitivity: -82±2dBm | ||||||||
| Video:two-way video output | ||||||||
| Audio:two-way Audio-R and Audio-L output | ||||||||
| RF Input: two-way antenna accept | ||||||||
| Touch screen or remote control support | ||||||||
| AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3,Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||||||
| Video resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||||||
| Support teletext /subtitle /multi-language | ||||||||
| mini USB software upgrade | ||||||||
| Fast Auto search and Manual search supported | ||||||||
| Supported 7-Day EPG function, VBI Teletext | ||||||||
| Support high-speed mobile signal receiving | ||||||||
| Program parameters memorization when power off | ||||||||
| Can store up to 1000 TV/radio stations | ||||||||
| Multi-language OSD: English, Spanish, Portuguese | ||||||||
| TECHNICAL DATA | ||||||||
| RF input: 2 SMA-type terminal | Audio Decoder: | |||||||
| Input Impedance@Antenna: 50ohm | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital) | |||||||
| Frequency range: UHF 473.143MHz-803.143MHz | AAC-LC, WMAE-AC-3 (Dolby Digital Plus) | |||||||
| VHF 177.143MHz-213.143MHz | decoding HE-AAC 5.1 multi-channel decoding | |||||||
| Signal level: full-seg:-85dBm~0dBm | Video System: PAL/NTSC/PAL-M/PAL-N | |||||||
| one-seg:-95dBm~0dBm | Video output: CVBS | |||||||
| Supports ISDB-T one-seg,ISDB-T full-seg | Audio Output: Left/Right | |||||||
| Bandwidth: 6M | IR remote control/UART Touch | |||||||
| Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK | mini USB for upgrade | |||||||
| Guard interval: 1/4,1/8,1/16,1/32 | Input Voltage Range: 9V~16V | |||||||
| FEC: 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic | Power consumption: <2.5W | |||||||
| Video Decoder: | Operation temperature: -20-70℃, | |||||||
| MPEG-4 part10/MPEG-2 ISO/IEC 13818 | Working limit: -25-75℃ | |||||||
| MPEG-4 Simple/Main/Advanced Profile@ LEVEL3 | ||||||||
| MPEG-2 Main Profile# Main Level (15Mbps) | ||||||||
| H.264 MP#L3 (10Mbps).H.264 HP L4.1(25Mbps) | ||||||||
