Combustible Gas Control Panel

Name: Combustible Gas Control Panel
Brand: Caatm
SKU: 100300129
Availability: InStock

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Caatm

Model Number:

CA-2100A , CA-2100C, CA-2100D, CA-2100E

Zhuhai Chuangan Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhuhai Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Caatm

Model Number CA-2100A , CA-2100C, CA-2100D, CA-2100E

Usage Other, Gas Alarm Controller

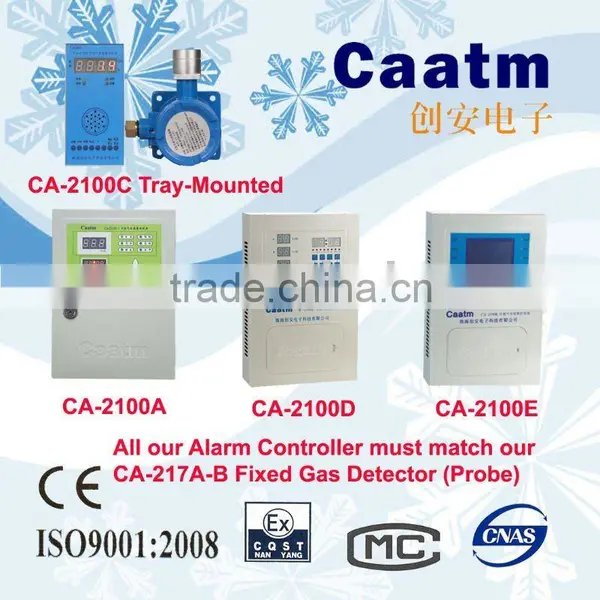

CA-2100C Combustible Gas Alarm Controller

Working Method	Auto Patrol	Output Power	DC12V500mA (Supply Power to Detector)
Communication	4~20mA Standard Signal	Working Power	AC220V/50Hz
Transmission Distance	≤ 1000 m	Alarming Function	Two Level Alarm, Alarm Point can be set up
Sampling Rate	<4 road/second	Alarming Sound
System Capacity	2 Line	Display Method	Digital Tube Rotational Display
Display Error	+- 5%	Working Environment:	Tem -10⁰C~+50⁰C Hum 30⁰C~+95⁰C
Weight	About 1.5 Kg	Dimension	260X80X160 mm
		Product Performance Standards:	GB16808-1997 GB16808-2008

CA-2100A Combustible Gas Controller

Working Method	Auto Patrol	Output Voltage:	DC24V@500mA (Supply Power to The Probe #CA-217A-B)
Communication Interface:	4-20mA Standard Signal	Working Voltage:	AC220V/50Hz
Transmission Distance:	≤ 1000 m	Alarming Function:	2 Level Output
Sample Rate:	<4 Channels/Second	Max. Capacity of System:	2 Channels
Display Method:	Digital Tube Display rotationally	Display Error:	<+-5%
Working Environment:	Tem-10%~+50% RH 30%-95%	Display Function:	LED Display
Weight	About 2.5 Kg	Controller Size:	290mm210mm85mm
Connection Thread :	1/2G Inner Thread	Performance Standards:	GB16808-1997/ GB16808-2008

CA-2100D Combustible Gas Controller

Working Method	Automatic Patrol	Output Voltage:	DC24V@1A (Supply Power to The Probe #CA-217A-B)
Communication Interface:	RS485	Working Voltage:	AC220V/50Hz
Transmission Distance:	<1000 m	Alarming Function:	2 Level Output
Sample Rate:	<4 Channels/Second	Max. Capacity of System:	4 Channels
Display Method:	Four-passage Concentration Real-time Dislay	Display Error:	<+-5%
Working Environment:	Tem-10%~+50% RH 30%-95%	Weight:	About 3kg
Controller Size:	350mm(Length)230mm(Width)80(Thickness)mm	Performance Standards:	GB16808-1997 GB16808-2008

CA-2100E Combustible Gas Controller

Working Method:	Automatic Patrol	Output Voltage:	DC24V@3A (Supply Power to The Probe #CA-217A-B)
Communication Interface:	RS485	Working Voltage:	AC220V/50Hz
Transmission Distance:	<1000 m	Alarming Function:	2 Level Output
Sample Rate:	<8 Channels/Second	Max.Capacity of System:	16 Channels
Display Method:	Concentration Display, SpecificPassage Display Alarming Passage Takes Priority	Display Error:	<+-5%
Working Environment:	Tem-10%~+50% RH 30%-95%	Display Function:	LED Display
Weight:	About 3kg	Controller Size:	350mm(Length)230mm(Width)80(Thickness)mm
Performance Standards:	GB16808-1997/ GB16808-2008
