Yukun GSX08-2915-CNG-25 8 tubes semi trailer with 3 axle
Technical parameter table of semi trailer with 3 axle
| Product Type | GSX08-2915-CNG-25 |
| Numbers of cylinder | 8 |
| Nominal pressure | 25Mpa |
| Working temperature | -40~60 |
| Media filled in | CNG |
| Material | 30CrMoE/4130X |
| Total volume | 23.32m3 |
| Filling volume | 6960Nm3 |
| Filling weight | 5008kg |
| Overall dimension | 12192*2438*1930mm |
Main material and equipment of semi trailer with 3 axle chassis
| Girder | High tensile steel cutting, automatic welding |
| Axle | Fuhua bridge |
| Tires | Steel wire tire, 12pcs |
| Leg | Jost A440 single action |
| Traction pin | Jost 3.5*(90) |
| Equipped with ABS anti-lock brake device | |
| Pneumatic chain brakes | |
| Two spare tire rack, two root electrostatic, license plate reversible pedal | |
| Equipped with two powder fire extinguishers(5kg) | |
| Vehicle standard tools | |
Advantage of semi trailer with 3 axle
1. The inner discharging devices of semi trailer with 3 axle are set at cylinders for discharging the residual liquid left in cylinders at any time, which can prevent the stress corrosion on cylinder body induced by hydrogen sulfide contained in residual liquid to extend the service life of cylinders.
2. Safety devices (rupture disk + fusible plug structure ) of semi trailer with 3 axle are used at both ends of cylinder to improve the safety feature greatly.
3. The steel belts and bolts for fixing cylinders of semi trailer with 3 axle become wider and bigger respectively which can increase the pull of steel belts to avoid cylinders turning during transportation.
4. semi trailer with 3 axle with ABS interface and control device.
5. Hexagonal structure of end plug is changed to short column + hexagonal. The column part can block the anti-rotation peg to avoid falling off.
Ordering tips of semi trailer with 3 axle
Usual type of our semi trailer with 3 axle:
CNG cylinder quantity: 6/7/8/9/10/11/12 tubes
Diameter: 559/635/711mm
Working pressure: 20/25Mpa
CNG loading capacity: high to 4.3ton, 6500Nm3
Our semi trailer with 3 axle can be customized, if you have interest, pls inform your detail request below:
1. Volume of CNG gas transporting for one day (Nm3/day);
2. Distance between the gas source and your target place;
3. Limit of weight, height, width and length of the semi trailer with 3 axle in the users' country.
Inspection process of container cylinder for semi trailer with 3 axle

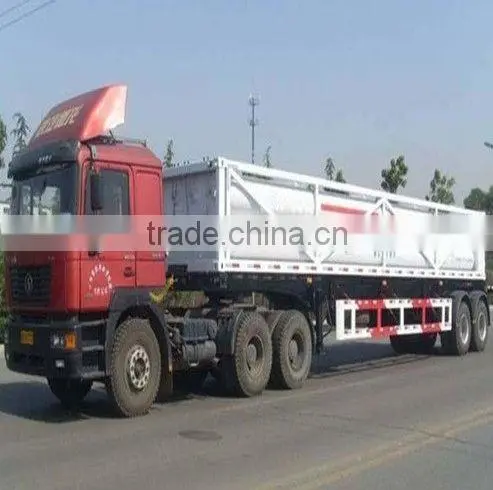

Photo of semi trailer with 3 axle
