Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Global Green Automatic Hydraulic Palm Fiber Baling Machine
Global Green Automatic Hydraulic Palm Fiber Baling Machine
US$ 20,000 - 90,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cartons, Bags, Film, Pouch, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Horizontal Recycling MachineUS$ 20,000 - 90,000MOQ: 1 Set -
Automatic Horizontal Hydraulic Baling Press AB-150US$ 20,000 - 90,000MOQ: 1 Set
-
Global Green Automatic Paper&Cardboard Baling Press MachineUS$ 58,000 - 66,000MOQ: 1 Set
-
Global Green Automatic Horizontal Baling Press Machine for Palm Fiber and Coconut HuskUS$ 65,000 - 82,000MOQ: 1 Set
-
Fully Automatic Horizontal Paper BalerUS$ 59,000 - 116,000MOQ: 1 Unit
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Cartons, Bags, Film, Pouch, Case
Packaging Material
Plastic, Paper
Automatic Grade
Automatic
Driven Type
Hydraulic
Voltage
200V/380V/415V
Power
30KW
Place of Origin
Guangdong, China
Brand Name
Global Green
Model Number
AB-80
Weight
18000kg
Dimension(L*W*H)
8660*1200*4120
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.PLC Programming Automatic Control2.High output with low power consumption
3.Bale Dimension Adjustable
4.Rich Experience

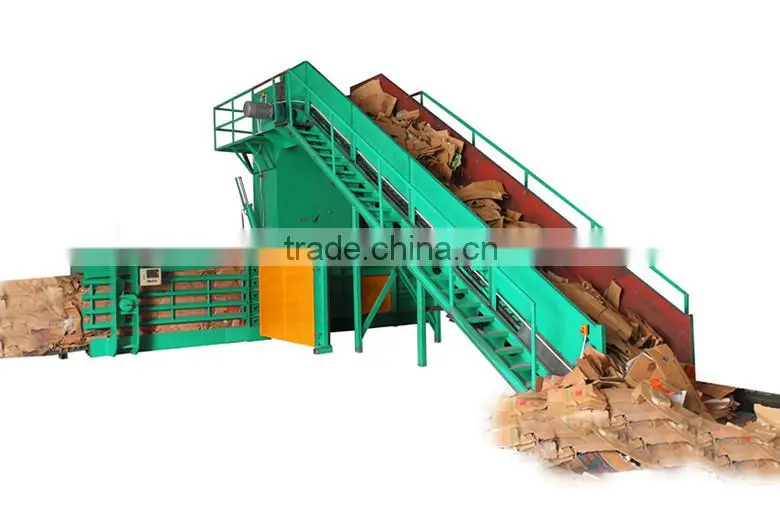

Global Green Automatic Hydraulic Palm Fiber Baling Machine
1. Suitable for: waste paper,corrugated paper plastic film,cardboard box and so on.
2. Automatic operation by PLC programming control.
Opening:
Three Control Mode :

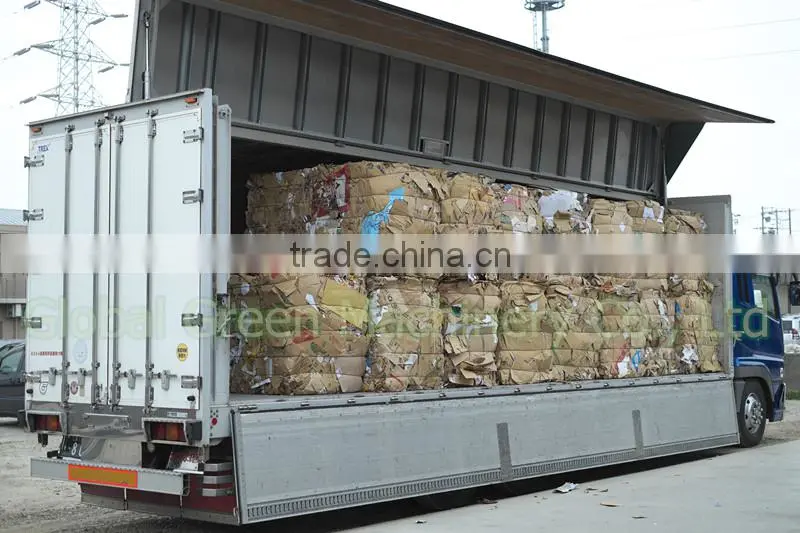

Followings is some actual use in different countries.
| MODEL | AB-80 | AB-100 | AB-120 | AB-150 |
| VOLTAGE | 200V/380V/415V | 200V/380V/415V | 200V/380V/415V | 200V/380V/415V |
| MOTOR POWER | 30KW | 37KW | 45KW | 45KW*2 |
| OPERATING MODE | AUTO | AUTO | AUTO | AUTO |
| BALE DEMENSION | L(FREE)*W920*H920 | L(FREE)*W920*H920 | L(FREE)*W920*H920 | L(FREE)*W1100*H1250 |
| CYCLINDER | 220mm | 250mm | 270mm | 300mm |
| FEEDING | L1860*W900mm | L1860*W900mm | L1860*W900mm | L1860*W1060mm |
| MAX. WORKING PRESSURE | 800KN | 1000KN | 1200KN | 1500KN |
| WORKING POWER | 17Mpa | 17Mpa | 17Mpa | 17Mpa |
| NOISE | 80DB | 80DB | 80DB | 80DB |
| OIL TANK | 900L | 1100L | 1100L | 1600L |
| WIRE QUANTITY | 4 | 4 | 4 | 5 |
| BALE DENSITY | 450~500KG/m3 | 500~520KG/m3 | 520~550KG/m3 | 520~550KG/m3 |
| WORKING EFFICIENCY | 4~5T/H | 6~7T/H | 8~9T/H | 18~20T/H |
| MACHINE WEIGHT | 18000kg | 23000kg | 25000kg | 35000kg |
| MACHINE DEMENSION | L8660*W12000*H4120mm | L8700*W12200*H4120mm | L8700*W12200*H4120mm | L10200*W16200*H5370mm |
For more products,please click into: https://img13.fr-trading.com/productlist.html
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2012
Factory Size
1,000-3,000 square meters
Total Employees
51 - 100 People
