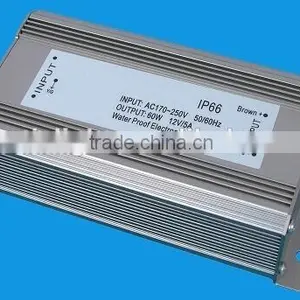

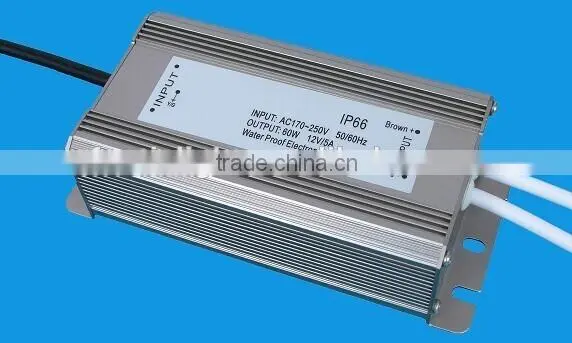

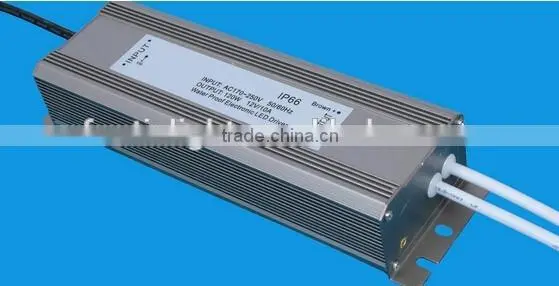

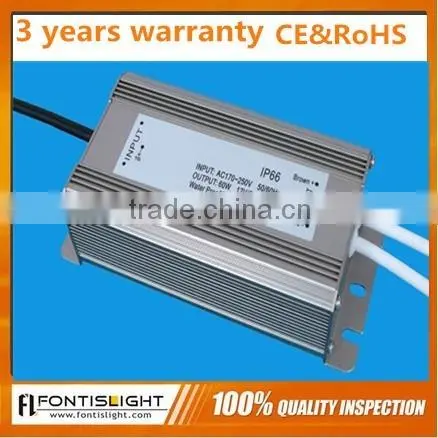

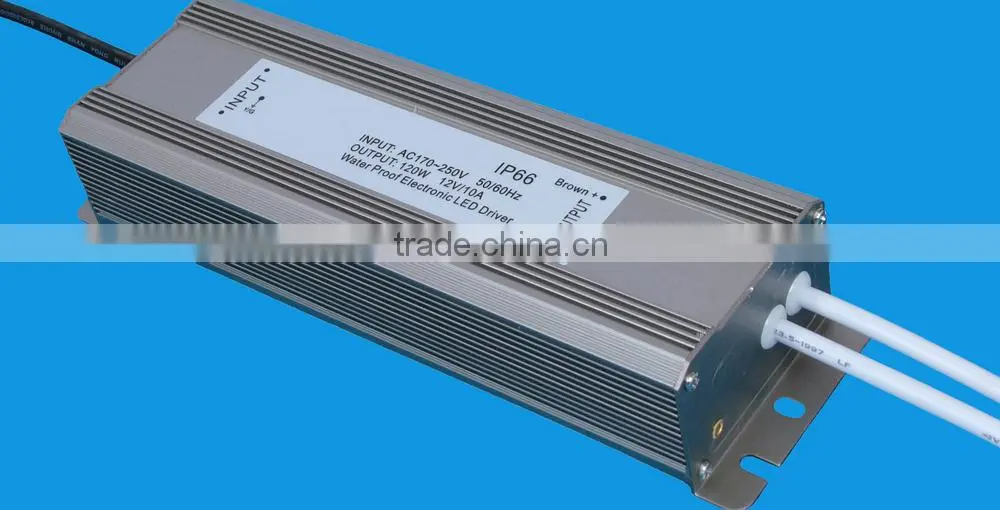

12V 120W IP67 LED Waterproof Power Supply

Name: 12V 120W IP67 LED Waterproof Power Supply
Brand: Fontislight
SKU: 100268481
Availability: InStock

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Fontislight

Model Number:

FL-PW-120

Shenzhen Fontislight Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Fontislight

Model Number FL-PW-120

Output Type Single

Specifications

12V 120W LED waterproof transformer
DC12V 10A 120W
3 years warranty
CE and RoHS
12V 120W LED waterproof

12V 120W IP67 LED waterproof transformer,waterproof power supply with CE&RoHS

12V 120W LED waterproof transformer
~Waterproof
~DC12V 10A 120W
~3 years warranty
~CE and RoHS

12V 120W LED waterproof transformer with CE and RoHS

Features :

SPECIFICATION
MODEL		12V120W	24V120W
OUTPUT	DC VOLTAGE	12V	24V
	RATED CURRENT	10A	5A
	CURRENT RANGE	0~10A	0~5A
	RATED POWER	120W	120W
	NOTE.2 RIPPLE & NOISE (max.)	120mV	120mV
	NOTE.3 VOLTAGE TOLERANCE	±4%	±2%
	SETUP, RISE TIME	80ms/220VAC
	HOLD UP TIME (Typ.)	60ms/220VAC
INPUT	VOLTAGE RANGE	170 ~ 250VAC
	FREQUENCY RANGE	50 ~ 60Hz
	POWER FACTOR (Typ.)	PF>0.6/220VAC
	EFFICIENCY (Typ.)	80%	82%
	AC CURRENT (Typ.)	1.42A/220VAC
	INRUSH CURRENT (Typ.)	COLD START 50A/220VAC
PROTECTION	Short circuit	Protection type : recovers automatically after fault condition is removed
	Overload	overload protected @ 145-160% above peak rating
	Over temperature	Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-30 ~ +50°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 99% RH non-condensing(Waterproof)
	STORAGE TEMP., HUMID IT Y	-40 ~ +80°C , 10 ~ 99% RH
SAFETY & EMC	SAFETY STANDARDS	CE Mark (LVD) , IP67
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-GND:1.5KVAC
	EMC Test Standards	12V120W	24V120W
NOTE	1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 1 0 uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
